PVC Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV

Application

These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.

Standard

  • AS/NZS 5000.1
  • AS/NZS 3008
  • AS/NZS 1125

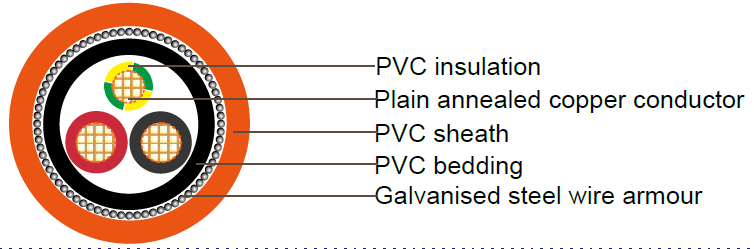

Cable Construction

Conductor Plain annealed copper.
Insulation Polyvinylchloride compound PVC V-90
Insulation colour: 2C + E - Red, Black, Green/yellow
Bedding: Polyvinylchloride compound PVC 5V-90
Bedding colour: Black
Armour: Galvanised Steel Wire
Sheath: Polyvinylchloride compound PVC 5V-90
Sheath colour: Orange, other colors are available upon request

Technical Characteristics

Industrial Cables(ASLV)

Conductor Current Ratings Electrical Characteristics
Nominal Area mm2 Unenclosed In Air
A		 Buried Direct A Buried In Ducts A Maximum DC Resistance @20°C Ohm/km Maximum AC Resistance @75°C Ohm/km Reactance Ohm/km Single Phase Voltage Drop @75°C mV/Am
1.5 18 28 22 13.6 16.5 0.111 33.0
2.5 26 40 31 7.41 9.01 0.102 18.0
4 34 52 40 4.61 5.61 0.102 11.2
6 44 65 51 3.08 3.75 0.0967 7.50
10 60 87 68 1.83 2.23 0.0906 4.46
16 80 115 88 1.15 1.40 0.0861 2.81
25 105 145 115 0.727 0.884 0.0853 1.78
35 130 180 140 0.524 0.638 0.0826 1.28
50 160 210 165 0.387 0.471 0.0797 0.957
70 200 260 205 0.268 0.327 0.0770 0.673
95 250 310 250 0.193 0.236 0.0766 0.498

Cable Parameter

Nom. conductor area
mm2		 Conductor No./ OD Nom. insulation thickness mm Nom. earth conductor area
mm2		 Nom. earth conductor insulation thickness mm Nom. diameter over bedding mm Armour diameter mm Nom. overall diameter mm Approx. mass kg/km
1.5 7/0.50 0.8 1.5 0.6 9.0 0.9 14.5 470
2.5 7/0.67 0.8 2.5 0.7 10.0 0.9 15.6 490
4 7/0.85 1.0 2.5 0.7 11.4 0.9 16.9 690
6 7/1.04 1.0 2.5 0.7 12.5 0.9 18.0 765
10 7/1.35 1.0 4.0 1.0 14.2 1.25 20.5 937
16 7/1.70 1.0 6.0 1.0 16.3 1.25 22.5 1295
25 7/2.14 1.2 6.0 1.0 20.0 1.6 27.0 1600
35 7/2.65 1.2 10 1.0 21.7 1.6 28.1 1775
50 19/1.89 1.4 16 1.0 24.7 1.6 31.3 2215
70 19/2.24 1.4 25 1.2 28.7 2.0 35.1 2880
95 19/2.65 1.6 25 1.2 32.6 2.0 40.4 3910
