XLPE Insulated, PVC Sheathed 2 core+E Armored Cables, 0.6/1kV
Application
These cables are used for mains, submains and subcircuits unenclosed, enclosed in conduit, buried direct or in underground ducts for buildings and industrial plants where not subject to mechanical damage.
Standard
- AS/NZS 5000.1
- AS/NZS 3008
- AS/NZS 1125

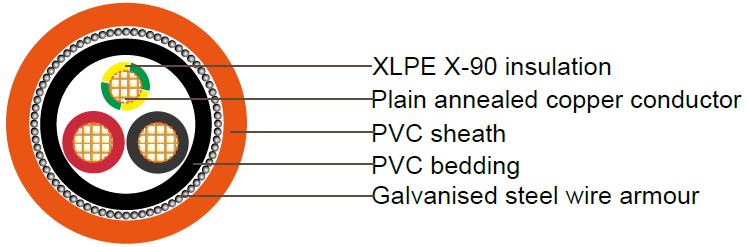

Cable Construction
| Conductor | Plain annealed copper. |
|---|---|
| Insulation | XLPE X-90. |
| Insulation colour: | 2C + E - Red, Black, Green/yellow |
| Bedding: | Polyvinylchloride compound PVC 5V-90 |
| Bedding colour: | Black |
| Armour: | Galvanised Steel Wire |
| Sheath: | Polyvinylchloride compound PVC 5V-90 |
| Sheath colour: | Orange, other colors are available upon request |
Technical Characteristics
| Conductor | Current Ratings | Electrical Characteristics | |||||
|---|---|---|---|---|---|---|---|
| Nominal Area mm2 | Unenclosed In Air A |
Buried Direct A | Buried In Ducts A | Maximum DC Resistance @20°C Ohm/km | Maximum AC Resistance @90°C Ohm/km | Reactance Ohm/km | Single Phase Voltage Drop @90°C mV/Am |
| 16 | 97 | 130 | 100 | 1.15 | 1.47 | 0.0805 | 2.95 |
| 25 | 130 | 170 | 130 | 0.727 | 0.927 | 0.0808 | 1.86 |
| 35 | 160 | 205 | 160 | 0.524 | 0.669 | 0.0786 | 1.35 |
| 50 | 195 | 245 | 190 | 0.387 | 0.494 | 0.0751 | 1.00 |
| 70 | 250 | 300 | 235 | 0.268 | 0.343 | 0.0741 | 0.703 |
| 95 | 310 | 360 | 285 | 0.193 | 0.248 | 0.0725 | 0.520 |
| 120 | 360 | 410 | 325 | 0.153 | 0.197 | 0.0713 | 0.423 |
Cable Parameter
| Nom. conductor area mm2 |
Conductor No./ OD | Nom. insulation thickness mm | Nom. earth conductor area mm2 |
Nom. earth conductor insulation thickness mm | Nom. diameter over bedding mm | Armour diameter mm | Nom. overall diameter mm | Approx. mass kg/km |
|---|---|---|---|---|---|---|---|---|
| 16 | 7/1.70 | 0.7 | 6 | 0.7 | 15.3 | 1.25 | 21.6 | 1100 |
| 25 | 7/2.14 | 0.9 | 6 | 0.7 | 19.2 | 1.25 | 25.8 | 1310 |
| 35 | 7/2.65 | 0.9 | 10 | 0.7 | 21.3 | 1.6 | 26.8 | 1765 |
| 50 | 19/1.89 | 1.0 | 16 | 0.7 | 24.1 | 1.6 | 29.7 | 2185 |
| 70 | 19/2.24 | 1.1 | 25 | 0.9 | 28.2 | 1.6 | 33.6 | 2745 |
| 95 | 19/2.65 | 1.1 | 25 | 0.9 | 31.7 | 2.0 | 37.7 | 3650 |
| 120 | 19/2.94 | 1.2 | 35 | 0.9 | 35.4 | 2.0 | 41.8 | 4600 |
