A07RN-F
Application and Description
These cables are designed to provide high flexibility and have the capacity to withstand ozone,weather and
oils/greases, mainly used for connecting of power tools, mobile units and machines for medium mechanical
requirements in dry and humid rooms, for outdoor use, in explosive areas, in commercial and agricultural
plants and on Cable Construction lots. Also suitable for fixed laying e.g. on-wall in provisional buildings, for
directly laying on modules of hoisting devices, machinery etc. Max operating voltage in single or three phase
system is Uo/U 476/825 volts. In a direct current system max operating voltage is Uo/U 619/1238 volts. If in
a fixed or protected installation Uo/U is 600/1000 volts.
Standard and Approval
CEI 20-19, HD 22.4, IEC 60245-4,

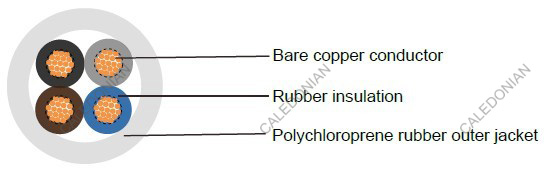

Cable Construction
- Fine bare copper strands
- Strands to VDE-0295 Class-5, IEC 60228 Class-5
- Rubber core insulation EI4 to VDE-0282 Part-1
- 3,4,& 5 cores cables - NO green/yellow ground
- Color code VDE-0293-308
- Green-yellow grounding, 3 conductors and above
- Polychloroprene rubber (neoprene) jacket EM2
Technical Characteristics
- Working voltage: 450/750 volts
- Test voltage: 2500 volts
- Flexing bending radius: 7.5 x Ø
- Fixed bending radius: 4.0 x Ø
- Flexing Temperature: -25º C to +60º C
- Fixed Temperature: -40º C to +60º C
- Flame retardant: IEC 60332.1
- Insulation resistance: 20 MΩ x km
Cable Parameter
AWG | No. of Cores x Nominal Cross Sectional Area # x mm² | Nominal Thickness of Insulation mm | Nominal Thickness of Sheath mm | Nominal Overall Diameter mm min-max | Nominal Copper Weight kg/km | Nominal Weight kg/km |
16(30/30) | 3 x 1.5 | 0.8 | 1.6 | 9.2-11.9 | 43 | 165 |
16(30/30) | 4 x 1.5 | 0.8 | 1.7 | 10.2-13.1 | 58 | 200 |
16(30/30) | 5 x 1.5 | 0.8 | 1.8 | 11.2-14.4 | 72 | 240 |
16(30/30) | 7 x 1.5 | 0.8 | 2.6 | 14.5-17.5 | 101 | 385 |
16(30/30) | 12 x 1.5 | 0.8 | 2.9 | 17.6-22.4 | 173 | 516 |
16(30/30) | 19 x 1.5 | 0.8 | 3.2 | 20.7-26.3 | 274 | 800 |
16(30/30) | 24 x 1.5 | 0.8 | 3.5 | 24.3-30.7 | 346 | 882 |
16(30/30) | 27 x 1.5 | 0.8 | 3.6 | 25.5-31.5 | 389 | 1077 |
14(50/30) | 3 x 2.5 | 0.9 | 1.8 | 10.9-14.0 | 72 | 235 |
14(50/30) | 4 x 2.5 | 0.9 | 1.9 | 12.1-15.5 | 96 | 290 |
14(50/30) | 7 x 2.5 | 0.9 | 2.8 | 16.5-20.0 | 168 | 520 |
14(50/30) | 12 x 2.5 | 0.9 | 3.1 | 20.6-26.2 | 288 | 810 |
14(50/30) | 19 x 2.5 | 0.9 | 3.5 | 25.5-31.0 | 456 | 1200 |
14(50/30) | 24 x 2.5 | 0.9 | 3.9 | 28.8-36.4 | 576 | 1650 |
14(50/30) | 27 x 2.5 | 0.9 | 4.2 | 30.0-37.0 | 648 | 1521 |
14(50/30) | 37x 2.5 | 0.9 | 4.5 | 34.0-37.5 | 725 | 1952 |
12(56/28) | 3 x 4 | 1 | 1.9 | 12.7-16.2 | 115 | 320 |
12(56/28) | 4 x 4 | 1 | 2 | 14.0-17.9 | 154 | 395 |
10(84/28) | 3 x 6 | 1 | 2.1 | 14.1-18.0 | 173 | 495 |
10(84/28) | 4 x 6 | 1 | 2.3 | 15.7-20.0 | 230 | 610 |
8(80/26) | 3 x 10 | 1.2 | 3.3 | 19.1-24.2 | 288 | 880 |
8(80/26) | 4 x 10 | 1.2 | 3.4 | 20.9-26.5 | 384 | 1060 |
6(128/26) | 3 x 16 | 1.2 | 3.5 | 21.8-27.6 | 461 | 1090 |
6(128/26) | 4 x 16 | 1.2 | 3.6 | 23.8-30.1 | 614 | 1345 |
