International Municipal Signal Association(IMSA Series)
IMSA 51-7(Loop Detector Cable)

Application and Description :

These cables are used in road pavements to detect vehicles for the purpose of changing signals or
determining amount of traffic flow.

Cable Construction:

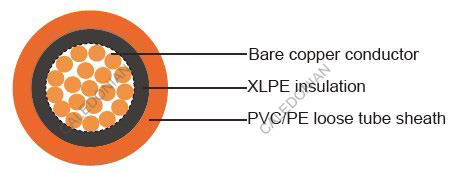

IMSA 51-7 Loop Detector Cable

- Conductor: Stranded bare copper per ASTM B-8
- Insulation: Cross-linked polyethylene (XLPE)
- Sheatht: PE or PVC loose tube, black or orange

Temperature Rating:

60°C

Voltage Rating:

600 V

Cable Parameter :

AWG No. of Conductor Solid or Stranded Insulation Thickness Sheath thickness Overall Diameter Cable Weight
inches mm inches mm inches mm Lbs./ Kft Kg/Km
PE tube
14 1 19strand 0.030 0.76 0.030 0.76 0.19 4.83 26 39
12 1 19strand 0.030 0.76 0.030 0.76 0.22 5.59 31 46
PVC tube
14 1 19strand 0.030 0.76 0.030 0.76 0.19 4.83 31 46
12 1 19strand 0.030 0.76 0.030 0.76 0.22 5.59 37 55
