International Municipal Signal Association(IMSA Series)
IMSA 51-5(Loop Detector Cable)
Application and Description :
These cables are used in road pavements to detect vehicles for the purpose of changing signals or determining amount of traffic flow.

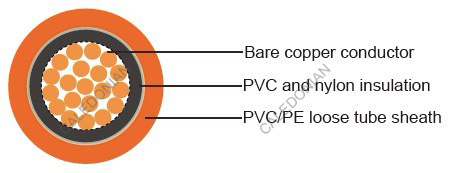

Cable Construction:
- Conductor: Stranded bare copper per ASTM B-8
- Insulation: PVC(15Mils)/Nylon(5Mils)
- Sheath: PE or PVC loose Tube, black or orange
Temperature Rating:
60°C
Voltage Rating:
600 V
Cable Parameter :
AWG | No. of Conductor | Solid or Stranded | Insulation Thickness | Sheath thickness | Overall Diameter | Cable Weight | ||||
---|---|---|---|---|---|---|---|---|---|---|
inches | mm | inches | mm | inches | mm | Lbs./ Kft | Kg/Km | |||
PE tube | ||||||||||
14 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.18 | 4.57 | 22 | 33 |
12 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.2 | 5.08 | 29 | 43 |
PVC tube | ||||||||||
14 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.18 | 4.57 | 30 | 45 |
12 | 1 | 19strand | 0.02 | 0.51 | 0.030 | 0.76 | 0.2 | 5.08 | 36 | 54 |
