International Municipal Signal Association(IMSA Series)
IMSA 39-6/40-6( Communication Cable)
Application and Description :
These cables are designed for use in underground conduit or as aerial cable supported by a messenger, or for direct earth burial or for installation in race way in buildings, not including trays, either as fire protective signaling cable or traffic communications and data acquisition cable suitable for power limited use, suitable for use in either wet or dry locations.

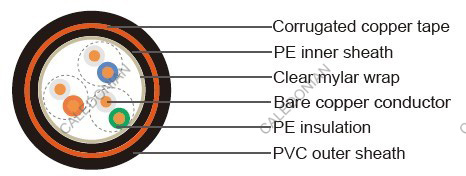

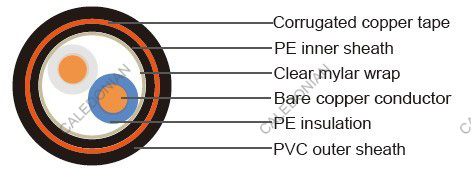

Cable Construction:
- Conductor: Solid bare copper per ASTM B-3(stranded copper is optional)
- Insulation: Polyethylene(PE)
- Pairing: Two insulated conductors twisted together
- Binder tape: Clear mylar wrap – 100% coverage
- Inner sheath: Polyethylene(PE)
- Shield: Corrugated copper tape- 15% minimum overlap
- Outer sheath: IMSA 39-6-Black Polyvinyl chloride (PVC)/
IMSA 40-6-Black Polyethylene(PE)
Color Code :
Conductor No. | Insulation Color | Conductor No. | Insulation Color | ||
---|---|---|---|---|---|
A wire | B wire | A wire | B wire | ||
1 | White | Blue | 14 | Black | Brown |
2 | White | Orange | 15 | Black | Slate |
3 | White | Green | 16 | Yellow | Blue |
4 | White | Brown | 17 | Yellow | Orange |
5 | White | Slate | 18 | Yellow | Green |
6 | Red | Blue | 19 | Yellow | Brown |
7 | Red | Orange | 20 | Yellow | Slate |
8 | Red | Green | 21 | Violet | Blue |
9 | Red | Brown | 22 | Violet | Orange |
10 | Red | Slate | 23 | Violet | Green |
11 | Black | Blue | 24 | Violet | Brown |
12 | Black | Orange | 25 | Violet | Slate |
13 | Black | Green |
Binding Tape Color Code: cables containing more than 25 pairs are assembled insub-sectors/
groups. These are identified by spirally applied color-coded nonhygroscopicbinding tapes. The binding
tapes use the same 25 pair color code.
Temperature Rating:
75°C
Voltage Rating:
300 V
Cable Parameter :
AWG | No. of Pairs | Solid or Stranded | Insulation Thickness | Inner Sheath thickness | Outer Sheath thickness | Overall Diameter | Cable Weight | |||||
---|---|---|---|---|---|---|---|---|---|---|---|---|
inches | mm | inches | mm | inches | mm | inches | mm | Lbs./Kft | Kg/Km | |||
19 | 3 | Solid | 0.015 | 0.38 | 0.045 | 1.14 | 0.06 | 1.52 | 0.57 | 14.48 | 115 | 171 |
19 | 6 | Solid | 0.015 | 0.38 | 0.045 | 1.14 | 0.06 | 1.52 | 0.63 | 16.00 | 157 | 234 |
19 | 12 | Solid | 0.015 | 0.38 | 0.045 | 1.14 | 0.06 | 1.52 | 0.756 | 19.20 | 248 | 369 |
19 | 18 | Solid | 0.015 | 0.38 | 0.045 | 1.14 | 0.08 | 2.03 | 0.89 | 22.61 | 352 | 524 |
19 | 25 | Solid | 0.015 | 0.38 | 0.045 | 1.14 | 0.08 | 2.03 | 1.01 | 25.65 | 444 | 661 |
19 | 50 | Solid | 0.015 | 0.38 | 0.06 | 1.52 | 0.08 | 2.03 | 1.255 | 31.88 | 783 | 1165 |
16 | 3 | Solid | 0.02 | 0.51 | 0.045 | 1.14 | 0.06 | 1.52 | 0.66 | 16.76 | 161 | 240 |
16 | 6 | Solid | 0.02 | 0.51 | 0.045 | 1.14 | 0.06 | 1.52 | 0.78 | 19.81 | 247 | 368 |
16 | 12 | Solid | 0.02 | 0.51 | 0.06 | 1.52 | 0.08 | 2.03 | 0.97 | 24.64 | 421 | 626 |
16 | 18 | Solid | 0.02 | 0.51 | 0.06 | 1.52 | 0.08 | 2.03 | 1.22 | 30.99 | 607 | 903 |
16 | 25 | Solid | 0.02 | 0.51 | 0.075 | 1.91 | 0.11 | 2.79 | 1.31 | 33.27 | 772 | 1149 |
16 | 50 | Solid | 0.02 | 0.51 | 0.045 | 1.14 | 0.06 | 1.52 | 1.83 | 46.48 | 1493 | 2222 |
