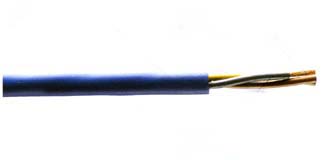

High Temperature Cables TML Cable - Type A for Process Water, Type B Drinking Water
Product application :
As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C. In addition DIN VDE 0298 T.300 has to be respected.
Product characteristic:
Construction:
Fine stranded bare copper conductor
EPR outer sheath
EPR insulation
Technical:
Characteristics at 20oC:
Rated voltage : 600/1000V
Maximum admissible operating voltage:
in 1 ph and 3 ph systems : 720 / 1200V
in D C systems : 1800 V
conductor resistance to DIN / VDE 0295
Test voltage 50Hz, 5 min : 2500 V
Temperature range:
Maximum admissible conductor
Temperature in operation 90°C
Short circuit temperature 250°C
Fixed : -40oC up to + 80°C
In motion : -25oC up to + 80°C
Tensile stress : maximum 15 N each sqmm conductor cross sectio
Properties:
Adapted to DIN VDE 0250 and DIN VDE 0282
Excellent insulation properties in water
Very low water absorption
Preservation of the mechanical strength
BAM* certificate VI.31/10904/01 - confirming the suitability of TML type B in drinking water.
Product specification:
AWG | No. of Cores | Conductor cross section mm² | O .D. mm | Gross Copper weight kg/km | Gross Weight kg/km | |
---|---|---|---|---|---|---|
Min - Max. | ||||||
16 | 1 | 1.5 | 5.8 | 7.2 | 14.4 | 54 |
14 | 1 | 2.5 | 6.4 | 8 | 24 | 76 |
12 | 1 | 4 | 7.4 | 9 | 38 | 105 |
10 | 1 | 6 | 8 | 11 | 58 | 135 |
8 | 1 | 10 | 9.8 | 12.5 | 96 | 200 |
6 | 1 | 16 | 11 | 14.5 | 154 | 290 |
4 | 1 | 25 | 12.5 | 16.5 | 240 | 410 |
2 | 1 | 35 | 14 | 18.5 | 336 | 560 |
1 | 1 | 50 | 16.5 | 21 | 480 | 740 |
2/0 | 1 | 70 | 18.5 | 23.5 | 672 | 1000 |
3/0 | 1 | 95 | 21 | 26 | 912 | 1300 |
4/0 | 1 | 120 | 23.5 | 28.5 | 1152 | 1650 |
300kcmil | 1 | 150 | 26 | 31.5 | 1440 | 2000 |
350kcmil | 1 | 185 | 27.5 | 34.5 | 1776 | 2500 |
- | 1 | 240 | 30.5 | 38 | 2304 | 3100 |
- | 1 | 300 | 33.5 | 41.5 | 2880 | 3700 |
16 | 2 | 1.5 | 9 | 11.5 | 29 | 130 |
14 | 2 | 2.5 | 10.5 | 13.5 | 48 | 190 |
12 | 2 | 4 | 12 | 15 | 77 | 260 |
10 | 2 | 6 | 13.5 | 18.5 | 115 | 350 |
8 | 2 | 10 | 18.5 | 24 | 192 | 550 |
6 | 2 | 16 | 21 | 27.5 | 307 | 900 |
4 | 2 | 25 | 25 | 31.5 | 480 | 1300 |
16 | 3 | 1.5 | 9.6 | 12.5 | 43 | 150 |
14 | 3 | 2.5 | 11.5 | 14.5 | 72 | 220 |
12 | 3 | 4 | 13 | 16 | 115 | 340 |
10 | 3 | 6 | 14.5 | 20 | 173 | 480 |
8 | 3 | 10 | 20 | 25.5 | 288 | 750 |
6 | 3 | 16 | 22.5 | 29.5 | 461 | 1100 |
4 | 3 | 25 | 26.5 | 34 | 720 | 1450 |
2 | 3 | 35 | 29.5 | 38 | 1008 | 2100 |
1 | 3 | 50 | 34.5 | 44 | 1440 | 2800 |
2/0 | 3 | 70 | 39 | 49.5 | 2016 | 3800 |
3/0 | 3 | 95 | 44 | 54.6 | 2736 | 4600 |
4/0 | 3 | 120 | 47.5 | 59 | 3456 | 5400 |
16 | 4 | 1.5 | 10.5 | 13.5 | 58 | 190 |
14 | 4 | 2.5 | 12.5 | 15.5 | 96 | 280 |
12 | 4 | 4 | 14.5 | 18 | 154 | 390 |
10 | 4 | 6 | 16.5 | 22 | 230 | 520 |
8 | 4 | 10 | 22.5 | 24.5 | 384 | 950 |
6 | 4 | 16 | 26.5 | 28.5 | 614 | 1400 |
4 | 4 | 25 | 32 | 34 | 960 | 1950 |
2 | 4 | 35 | 33 | 42.5 | 1344 | 2700 |
1 | 4 | 50 | 38 | 48.5 | 1920 | 3600 |
2/0 | 4 | 70 | 43 | 54.5 | 2688 | 4900 |
3/0 | 4 | 95 | 50 | 60.5 | 3648 | 6200 |
4/0 | 4 | 120 | 53 | 65.5 | 4608 | 7200 |
16 | 5 | 1.5 | 11.5 | 15 | 72 | 230 |
14 | 5 | 2.5 | 13.5 | 17 | 120 | 340 |
12 | 5 | 4 | 16 | 19.5 | 192 | 470 |
10 | 5 | 6 | 18 | 24.5 | 288 | 640 |
8 | 5 | 10 | 24 | 30.5 | 480 | 1150 |
6 | 5 | 16 | 27 | 35.5 | 768 | 1700 |
