High Temperature Cables

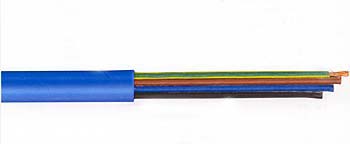

TML Cable Flat - Type A for Process Water, Type B for Drinking Water

Product application:

As connection cable for submersible electric motors (pumps) for the permanent use in process and drinking water up to a temperature of 70°C.

Product characteristic:

Construction:

Fine stranded bare copper conductor
EPR outer sheath
EPR insulation

Technical:

Characteristics at 20oC:
Rated voltage : 600/1000V
Maximum admissible operating voltage:
in 1 ph and 3 ph systems : 720 / 1200V
in D C systems : 1800 V
conductor resistance to DIN / VDE 0295
Test voltage 50Hz, 5 min : 2500 V
Temperature range:
Maximum admissible conductor
Temperature in operation 90°C
Short circuit temperature 250°C
Fixed : -40°C up to + 80°C
In motion : -25°C up to + 80°C
Tensile stress : maximum 15 N each sqmm conductor cross section

Properties:

Adapted to DIN VDE 0250 and DIN VDE 0282
Excellent insulation properties in water
Very low water absorption
Preservation of the mechanical strength
BAM* certificate VI.31/10904/01 - confirming the suitability of TML type B in drinking water.

Product specification:

AWG No. of Cores Conductor cross section mm² Outer Diameter mm x mm Gross Copper weight kg/km Gross weight kg / km
16 3 1.5 13 x 7 43 125
14 3 2.5 16 x 8 72 185
12 3 4 19 x 9 115 290
10 3 6 23 x 10 173 400
8 3 10 28 x 12 288 620
6 3 16 31 x 14 461 900
4 3 25 37 x 17 720 1150
2 3 35 38 x 17 1008 1550
1 3 50 45 x 20 1440 2200
2/0 3 70 52 x 22 2016 2900
3/0 3 95 58 x 25 2736 3800
16 4 1.5 17 x 7 58 160
14 4 2.5 20 x 8 96 250
12 4 4 24 x 9 154 340
10 4 6 26 x 10 230 450
8 4 10 31 x 11 384 850
6 4 16 36 x 13 614 1200
4 4 25 45 x 15 960 1600
2 4 35 48 x 17 1344 2100
1 4 50 59 x 20 1920 2900
