High Temperature Cables

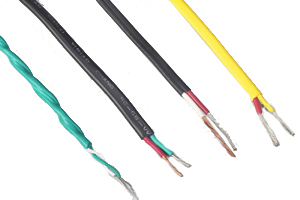

PVC Single Pair Thermocouple Wire (105°C)

Product application:

PVC Single Pair Thermocouple Wire is rated for use in cable tray conduit or direct burial applications

Product characteristic:

Construction:

Solid or stranded thermocouple alloy
Extruded high temperature 105°C PVC insulation
When twisted shielded pair construction (SF), 100% aluminum-polyester tape with drain.
Extruded PVC jacket

Technical:

Continuous temperature rating: 105°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Properties:

Good dielectric mechanical strength and flexibility
Service temperature up 105°C
Good resistance to water, abrasion, oil and chemicals
Economical, general use
Rated for use in cable tray conduit or direct burial applications

Product specification:

Solid Conductor, Parallel Pair

AWG Strand Insulation Thickness mm O.D. mm Gross Weight kg/km
Primary Jacket
20 Solid 0.254 0.508 2.34/3.66 21
16 Solid 0.381 0.508 3.23/5.13 40
14 Solid 0.432 0.635 3.76/6.25 57
20 Solid 0.254 0.508 2.34/3.66 21
16 Solid 0.381 0.508 3.23/5.13 40
14 Solid 0.432 0.635 3.76/6.25 57

Stranded Conductor, Parallel Pair

AWG Strand Insulation Thickness mm O.D. mm Gross Weight kg/km
Primary Jacket
20 7/28 0.305 0.508 2.62/4.23 21
16 7/24 0.381 0.508 3.23/5.51 43
20 7/28 0.305 0.508 2.62/4.23 21
16 7/24 0.381 0.508 3.23/5.51 43

Solid Conductor, Shielded Pair

AWG Strand Insulation Thickness mm O.D. mm Gross Weight kg/km
Primary Jacket
20 Solid 0.254 0.508 3.912 21
16 Solid 0.381 0.584 5.385 40
20 Solid 0.254 0.508 3.912 21
16 Solid 0.381 0.584 5.385 40

Stranded Conductor, Shielded Pair

AWG Strand Insulation Thickness mm O.D. mm Gross Weight kg/km
Primary Jacket
20 7/28 0.305 0.508 4.47 24
16 7/24 0.406 0.584 5.69 43
20 7/28 0.305 0.508 4.47 24
16 7/24 0.406 0.584 5.69 43

Stranded with Filler

AWG Strand Insulation Thickness mm O.D. mm Gross Weight kg/km
Primary Jacket
20 7/28 0.305 0.508 4.572 24
16 7/24 0.406 0.584 5.842 43
20 7/28 0.305 0.508 4.572 24
16 7/24 0.406 0.584 5.842 43
