High Temperature Cables

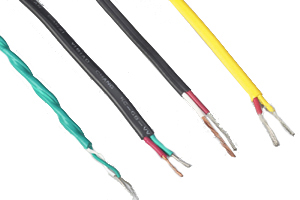

PVC Multi Pair Thermocouple Wire (105°C)

Product application:

PVC Multi Pair Thermocouple Wire may be used in the transmission of telephone or other signals.

Product characteristic:

Construction:

20 gauge solid thermocouple alloy.
Extruded high temperature 105°C PVC insulation.
Color coded twisted pairs, numbered sequentially for easy identification.
Matched pairs are twisted to reduce the amount of electromagnetic interference.
Flame retardant PVC jacket with ripcord.
On individually shielded pairs the shields are isolated from each other.

Technical:

Continuous temperature rating: 105°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS

Properties:

Allows a multiple of sensors to be connected to associated instrumentation
Good resistance to weather, moisture, oils, alkalies, and mechanical abrasion
PVC offers high dielectric
Maximum noise rejection with overall shield
Transmission of telephone or other signal with communications wire in core
Non-propagating, flame retardant

Product specification:

Multi Pair Extension Cable With Overall Shield

AWG Strand Number of Pairs Thickness of Jacket mm O.D. mm Gross Weight kg/km
20 Solid 4 1.016 9.042 100
20 Solid 6 1.27 10.82 144
20 Solid 8 1.27 11.76 179
20 Solid 12 1.27 13.665 243
20 Solid 16 1.27 15.748 324
20 Solid 20 1.524 16.358 385
20 Solid 24 1.524 18.44 455
20 Solid 36 1.524 20.777 631
20 Solid 50 1.778 24.282 867
20 Solid 8 1.27 11.76 179
20 Solid 6 1.27 10.82 144
20 Solid 50 1.778 24.282 867
20 Solid 4 1.016 9.042 100
20 Solid 36 1.524 20.777 631
20 Solid 24 1.524 18.44 455
20 Solid 20 1.524 16.358 385
20 Solid 16 1.27 15.748 324
20 Solid 12 1.27 13.665 243

Multi Pair Extension Cable With Individually Shielded Pairs

AWG Strand Number of Pairs Thickness of Jacket mm O.D. mm Gross Weight kg/km
20 Solid 4 1.27 10.668 135
20 Solid 6 1.27 12.573 186
20 Solid 8 1.27 13.589 231
20 Solid 12 1.524 16.51 339
20 Solid 16 1.524 18.161 430
20 Solid 20 1.524 19.558 513
20 Solid 24 1.524 21.717 598
20 Solid 36 1.778 24.638 863
20 Solid 50 1.778 28.829 1158
20 Solid 8 1.27 13.589 231
20 Solid 6 1.27 12.573 186
20 Solid 50 1.778 28.829 1158
20 Solid 4 1.27 10.668 135
20 Solid 36 1.778 24.638 863
20 Solid 24 1.524 21.717 598
20 Solid 20 1.524 19.558 513
20 Solid 16 1.524 18.161 430
20 Solid 12 1.524 16.51 339
