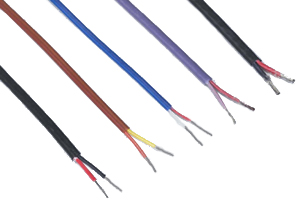

High Temperature Cables
PFA Insulated Thermocouple Wire and Extension Wire
Product application:
PFA Thermocouple Wire may be used for general use extension wire.
Product characteristic:
Construction:
Solid or stranded thermocouple wire
Flame retardant extruded fluoropolymer PFA insulation
Parallel conductors
Flame retardant extruded fluoropolymer PFA jacket
Tinned Copper
Technical:
Continuous temperature rating:260°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Excellent abrasion, oil, chemical and moisture resistance.
Service temperature of 260°C
Low friction factor when pulled.
Product specification:
PFA-Insulated Type J Thermocouple Wire
Iron/Constantan PFA Thermocouple Wire 260°C
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type J Thermocouple Wire - Extension Grade
Iron/Constantan PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type K Thermocouple Wire
Chromel/Alumel PFA Thermocouple Wire260°C
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type K Thermocouple Wire - Extension Grade
Chromel/Alumel PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type T Thermocouple Wire
Copper/Constantan PFA Thermocouple Wire 260°C
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type T Thermocouple Wire - Extension Grade
Copper/Constantan PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type E Thermocouple Wire
Chromel/Constantan PFA Thermocouple Wire 260°C
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type E Thermocouple Wire - Extension Grade
Chromel/Constantan PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type N Thermocouple Wire
Nicrosil/Nisil PFA Thermocouple Wire 260°C
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
PFA-Insulated Type N Thermocouple Wire - Extension Grade
Nicrosil/Nisil PFA Thermocouple Wire 260°C - Extension Grade
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.2 | 0.25 | 2.6 x 4.8 | 51 |
16 | 1.29 | 0.2 | 0.25 | 2.2 x 3.9 | 33 |
16S* | 1.47 | 0.2 | 0.25 | 2.4 x 4.3 | 36 |
18 | 1.02 | 0.2 | 0.25 | 1.9 x 3.4 | 22 |
20 | 0.81 | 0.2 | 0.15 | 1.7 x 2.9 | 16 |
20S* | 0.97 | 0.2 | 0.15 | 1.8 x 3.1 | 18 |
22 | 0.64 | 0.2 | 0.15 | 1.5 x 2.6 | 11 |
24 | 0.51 | 0.2 | 0.15 | 1.4 x 2.3 | 8.5 |
24S* | 0.61 | 0.2 | 0.15 | 1.6 x 2.7 | 9.2 |
26 | 0.41 | 0.2 | 0.15 | 1.3 x 2.1 | 6.5 |
28 | 0.32 | 0.2 | 0.15 | 1.2 x 2.0 | 5.5 |
30 | 0.25 | 0.2 | 0.15 | 1.2 x 1.8 | 4.5 |
