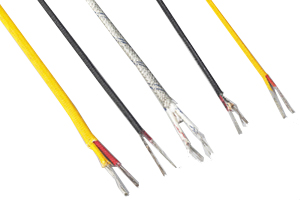

Fiberglass Insulated Thermocouple Wire and Extension Wire
Product application:
Fiberglass Thermocouple Wire is ideal for general applications requiring moderate abrasion, moisture resistance, and wide temperature capabilities
Product characteristic:
Construction:
Solid or stranded thermocouple wire
Braided fiberglass insulation
Parallel conductors
Tinned Copper
Braided fiberglass jacket
Technical:
Continuous temperature rating: 400°C
Minimum Bend Radius: insulation 3 x cable Ø
overall 5 x cable Ø
Limits of Error: Conforms to ASTM E230, IEC 584, and ANSI MC 96.1
Color Code: Conforms to ANSI, IEC, JIS
Properties:
Good thermal durability and tensile strength
Service temperature up to 400°C
Good dielectric and electrical characteristics
Braided fiberglass insulation for abrasion resistance
Braided fiberglass jacket for additional flexibility and abrasion resistance
Product specification:
Fiberglass Type K Thermocouple Wire
Chromel/Alumel Fiberglass Thermocouple Wire Type K
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type K Thermocouple Wire Extension Grade
Chromel/Alumel Fiberglass Thermocouple Wire Type K
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type J Thermocouple Wire
Iron/Constantan Fiberglass Thermocouple Wire Type J
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type J Thermocouple Wire Extension Grade
Iron/Constantan Fiberglass Thermocouple Wire Type J
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type T Thermocouple Wire
Copper/Constantan Fiberglass Thermocouple Wire Type T
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type T Thermocouple Wire Extension Grade
Copper/Constantan Fiberglass Thermocouple Wire Type T
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type E Thermocouple Wire
Chromel/Constantan Fiberglass Thermocouple Wire Type E
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type E Thermocouple Wire Extension Grade
Chromel/Constantan Fiberglass Thermocouple Wire Type E
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type N Thermocouple Wire
Nicrosil/Nisil Fiberglass Thermocouple Wire Type N
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
Fiberglass Type N Thermocouple Wire Extension Grade
Nicrosil/Nisil Fiberglass Thermocouple Wire Type N
AWG | Nominal Conductor Diameter mm | Nominal Thickness mm | Gross Weight kg/km | ||
---|---|---|---|---|---|
Insulation | Jacket | O.D. | |||
14 | 1.63 | 0.18 | 0.25 | 2.5 x 4.6 | 43 |
16 | 1.29 | 0.18 | 0.25 | 2.2 x 3.8 | 30 |
16S* | 1.47 | 0.18 | 0.25 | 2.4 x 4.3 | 33 |
18 | 1.02 | 0.18 | 0.25 | 1.8 x 3.2 | 19 |
20 | 0.81 | 0.15 | 0.15 | 1.4 x 2.5 | 11 |
20S* | 0.97 | 0.15 | 0.15 | 1.5 x 2.7 | 12 |
22 | 0.64 | 0.15 | 0.15 | 1.2 x 2.2 | 8 |
24 | 0.51 | 0.15 | 0.15 | 1.0 x 1.7 | 4.8 |
24S* | 0.61 | 0.15 | 0.15 | 1.2 x 2.1 | 5.1 |
26 | 0.41 | 0.11 | 0.15 | 0.9 x 1.5 | 3.3 |
28 | 0.32 | 0.11 | 0.15 | 0.8 x 1.4 | 2.5 |
30 | 0.25 | 0.11 | 0.15 | 0.8 x 1.2 | 1.9 |
