600/1000V PVC Insulated, PVC Sheathed, Armoured Power Cables to IEC 60502 (Single Core)
FGD300 1VVMAV-R (CU/PVC/PVC/AWA/PVC 600/1000V Class 2)
VDE Code: NYRY
Applications
IEC 60502-1 600/1000V PVC Insulated, PVC Sheathed Armoured Power Cables are mainly used in power stations, mass transit underground passenger systems, airports,petrochemical plants, hotels, hospitals, and high-rise buildings.
Standard
Basic design to IEC 60502-1
Fire Performance
Flame Retardance (Single Vertical Wire Test) |
IEC 60332-1 |
Voltage Rating
600/1000V

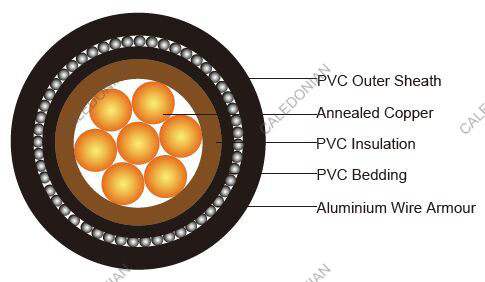

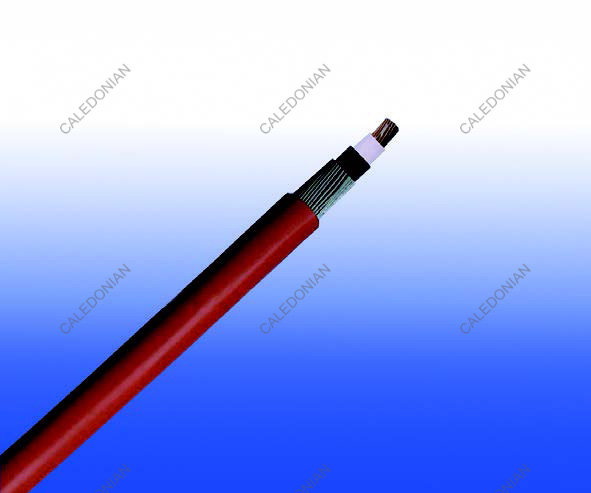

Construction
Conductor |
Annealed copper wire, stranded according to BS EN 60228 class 2. |
Insulation |
PVC/A according to IEC 60502-1. |
Inner Covering: |
Extruded PVC or polymeric compound. |
Armouring: |
Aluminium wire |
Outer Sheath |
Extruded PVC Type ST1/ST2 according to IEC 60502-1. |
Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite
properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3,
UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design.
LSPVC can also be provided upon request. |
Colour Code
Insulation Colour |
Brown or blue, Other colours can be offered upon request. |
Sheath Colour |
Black, other colours can be offered upon request. |
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation (PVC): |
70°C |
Maximum short circuit temperature (5 Seconds): |
160°C(≤300 mm²); 140°C(>300 mm²) |
Minimum bending radius |
|
|
Circular copper conductor |
6 x Overall Diameter |
|
Shaped copper conductor |
8 x Overall Diameter |
|
CONSTRUCTION PARAMETERS
No. of Cores x
Cross Section |
Class of Conductor |
Nominal Insulation Thickness |
Nominal Inner Covering Thickness |
Nominal Armour Wire Diameter |
Nominal Sheath Thickness |
Approx. Overall Diameter |
Approx. Weight |
No.xmm² |
|
mm |
mm |
mm |
mm |
mm |
kg/km |
1x4.0 |
2 |
1.0 |
1.0 |
0.8 |
1.8 |
11.5 |
213 |
1x6.0 |
2 |
1.0 |
1.0 |
0.8 |
1.8 |
12.0 |
247 |
1x10 |
2 |
1.0 |
1.0 |
0.8 |
1.8 |
12.8 |
310 |
1x16 |
2 |
1.0 |
1.0 |
0.8 |
1.8 |
13.7 |
394 |
1x25 |
2 |
1.2 |
1.0 |
0.8 |
1.8 |
15.2 |
534 |
1x35 |
2 |
1.2 |
1.0 |
1.25 |
1.8 |
17.2 |
713 |
1x50 |
2 |
1.4 |
1.0 |
1.25 |
1.8 |
18.9 |
893 |
1x70 |
2 |
1.4 |
1.0 |
1.25 |
1.8 |
20.3 |
1158 |
1x95 |
2 |
1.6 |
1.0 |
1.6 |
1.8 |
23.0 |
1558 |
1x120 |
2 |
1.6 |
1.0 |
1.6 |
1.8 |
24.4 |
1863 |
1x150 |
2 |
1.8 |
1.0 |
1.6 |
1.8 |
26.2 |
2214 |
1x185 |
2 |
2.0 |
1.0 |
1.6 |
1.9 |
28.2 |
2697 |
1x240 |
2 |
2.2 |
1.0 |
1.6 |
1.9 |
31.0 |
3402 |
1x300 |
2 |
2.4 |
1.0 |
2.0 |
2.1 |
34.4 |
4282 |
1x400 |
2 |
2.6 |
1.2 |
2.0 |
2.2 |
38.6 |
5360 |
1x500 |
2 |
2.8 |
1.2 |
2.0 |
2.3 |
41.8 |
6583 |
1x630 |
2 |
2.8 |
1.2 |
2.5 |
2.4 |
46.2 |
8401 |
1x800 |
2 |
2.8 |
1.4 |
2.5 |
2.6 |
50.5 |
10515 |
1x1000 |
2 |
3.0 |
1.4 |
2.5 |
2.7 |
55.0 |
12968 |
Electrical Properties
Conductor Operating Temperature |
70°C |
Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp) BS 7671: 2008 table 4D3A
Conductor cross- sectional area |
Reference Method C (clipped direct) |
Reference Method F (in free air or on a perforated cable tray, horizontal or vertical) |
Touching |
Touching |
Spaced by on cable diameter |
2 cables, singlephase a.c. or d.c. flat |
3 or 4 cables, threephase a.c. flat |
2 cables, singlephase a.c. or d.c. flat |
3 cables, threephase a.c. flat |
3 cables threephase a.c. trefoil |
2 cables, d.c. |
2 cables, single-phase a.c. |
three-phase a.c. |
Horizontal |
Vertical |
Horizontal |
Vertical |
Horizontal |
Vertical |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
50 |
193 |
179 |
205 |
189 |
181 |
229 |
216 |
229 |
217 |
230 |
212 |
70 |
245 |
225 |
259 |
238 |
231 |
294 |
279 |
287 |
272 |
286 |
263 |
95 |
296 |
269 |
313 |
285 |
280 |
357 |
340 |
349 |
332 |
338 |
313 |
120 |
342 |
309 |
360 |
327 |
324 |
415 |
396 |
401 |
383 |
385 |
357 |
150 |
393 |
352 |
413 |
373 |
373 |
479 |
458 |
449 |
429 |
436 |
405 |
185 |
447 |
399 |
469 |
422 |
425 |
548 |
525 |
511 |
489 |
490 |
456 |
240 |
525 |
465 |
550 |
492 |
501 |
648 |
622 |
593 |
568 |
566 |
528 |
300 |
594 |
515 |
624 |
547 |
567 |
748 |
719 |
668 |
640 |
616 |
578 |
400 |
687 |
575 |
723 |
618 |
657 |
885 |
851 |
737 |
707 |
674 |
632 |
500 |
763 |
622 |
805 |
673 |
731 |
1035 |
997 |
810 |
777 |
721 |
676 |
630 |
843 |
669 |
891 |
728 |
809 |
1218 |
1174 |
893 |
856 |
771 |
723 |
800 |
919 |
710 |
976 |
777 |
886 |
1441 |
1390 |
943 |
905 |
824 |
772 |
1000 |
975 |
737 |
1041 |
808 |
945 |
1685 |
1627 |
1008 |
967 |
872 |
816 |
Voltage Drop (Per Amp Per Meter) BS 7671: 2008 table 4D3B
Nominal Cross Section Area |
2 cables d.c. |
Ref. Methods C&F(clipped direct, on trays or in free air) |
2 cables, single-phase a.c. |
3 or 4 cables, three-phase a.c. |
Touching |
Spaced* |
Trefoil and touching |
Flat and touching |
Flat and spaced* |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
|
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
50 |
0.93 |
0.93 |
0.22 |
0.95 |
0.92 |
0.30 |
0.97 |
0.80 |
0.19 |
0.82 |
0.79 |
0.26 |
0.84 |
0.79 |
0.34 |
0.86 |
70 |
0.63 |
0.64 |
0.21 |
0.68 |
0.66 |
0.29 |
0.72 |
0.55 |
0.18 |
0.58 |
0.57 |
0.25 |
0.62 |
0.59 |
0.32 |
0.68 |
95 |
0.46 |
0.48 |
0.20 |
0.52 |
0.51 |
0.28 |
0.58 |
0.42 |
0.175 |
0.45 |
0.44 |
0.25 |
0.50 |
0.47 |
0.31 |
0.57 |
120 |
0.36 |
0.39 |
0.195 |
0.43 |
0.42 |
0.28 |
0.50 |
0.33 |
0.170 |
0.37 |
0.36 |
0.24 |
0.43 |
0.40 |
0.30 |
0.50 |
150 |
0.29 |
0.31 |
0.190 |
0.37 |
0.34 |
0.27 |
0.44 |
0.27 |
0.165 |
0.32 |
0.30 |
0.24 |
0.38 |
0.34 |
0.30 |
0.45 |
185 |
0.23 |
0.26 |
0.190 |
0.32 |
0.29 |
0.27 |
0.39 |
0.22 |
0.160 |
0.27 |
0.25 |
0.23 |
0.34 |
0.29 |
0.29 |
0.41 |
240 |
0.18 |
0.20 |
0.180 |
0.27 |
0.23 |
0.26 |
0.35 |
0.175 |
0.160 |
0.23 |
0.20 |
0.23 |
0.30 |
0.24 |
0.28 |
0.37 |
300 |
0.145 |
0.160 |
0.180 |
0.24 |
0.19 |
0.26 |
0.32 |
0.140 |
0.155 |
0.21 |
0.165 |
0.22 |
0.28 |
0.20 |
0.28 |
0.34 |
400 |
0.105 |
0.140 |
0.175 |
0.22 |
0.18 |
0.24 |
0.30 |
0.12 |
0.130 |
0.195 |
0.160 |
0.21 |
0.26 |
0.21 |
0.25 |
0.32 |
500 |
0.086 |
0.120 |
0.170 |
0.21 |
0.165 |
0.23 |
0.29 |
0.105 |
0.145 |
0.18 |
0.145 |
0.20 |
0.25 |
0.19 |
0.24 |
0.30 |
630 |
0.068 |
0.105 |
0.165 |
0.195 |
0.150 |
0.22 |
0.27 |
0.091 |
0.145 |
0.17 |
0.135 |
0.195 |
0.23 |
0.175 |
0.22 |
0.28 |
800 |
0.053 |
0.095 |
0.160 |
0.185 |
0.145 |
0.21 |
0.25 |
0.082 |
0.140 |
0.160 |
0.125 |
0.180 |
0.22 |
0.170 |
0.195 |
0.26 |
1000 |
0.042 |
0.091 |
0.155 |
0.180 |
0.140 |
0.19 |
0.24 |
0.079 |
0.135 |
0.155 |
0.125 |
0.165 |
0.21 |
0.165 |
0.170 |
0.24 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
