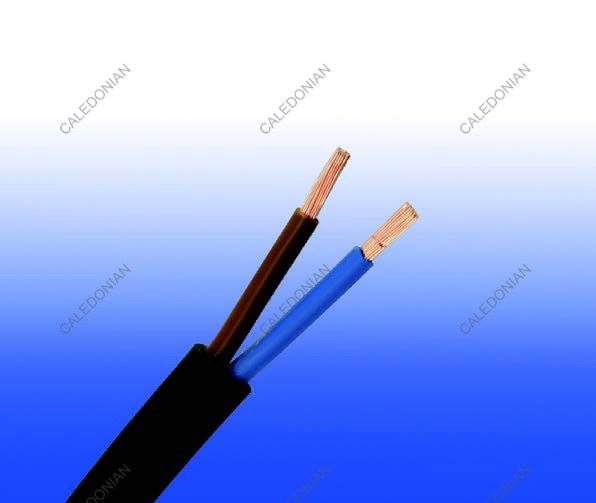

600/1000V XLPE Insulated, PVC Sheathed, Unarmoured Power Cables to IEC 60502 (2-5 Cores & Multicore)
FGD400 1RV-R (CU/XLPE/PVC 600/1000V Class 2)
VDE Code: N2XY
Applications
IEC 60502 600/1000V XLPE Insulated, PVC Sheathed Unarmoured Power Cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings.
Standard
Basic design to IEC 60502-1
Fire Performance
Flame Retardance (Single Vertical Wire Test) |
IEC 60332-1 |
Voltage Rating
600/1000V

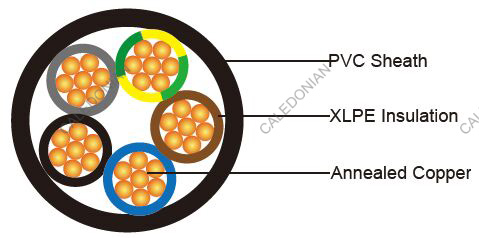

Construction
Conductor |
Annealed copper wire, stranded according to BS EN 60228 class 2. |
Insulation |
XLPE according to IEC 60502-1. |
Inner Covering Option: |
Extruded PVC or polymeric compound. |
Outer Sheath |
Extruded PVC Type ST1/ST2 according to IEC 60502-1. |
Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite
properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3,
UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design.
LSPVC can also be provided upon request. |
Colour Code
Insulation Colour |
Two-core: Brown, blue
Three-core: Brown, black, grey. Alternatively, green-and-yellow, blue, brown
Four-core: Blue, brown, black, grey. Alternatively, green-and-yellow, brown, black, grey
Five-core: Green-and-yellow, blue, brown, black, grey
Note: Depending on their intended use, the cables might be subject to the core colour requirements specified
in BS 7671 or other standards, or in statutory requirements. |
Sheath Colour |
Black, other colours can be offered upon request |
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation: |
80°C (For ST1 Sheath); 90°C (For ST2 Sheath) |
Maximum short circuit temperature (5 Seconds): |
250°C |
Minimum bending radius: |
12 x Overall Diameter |
CONSTRUCTION PARAMETERS
Conductor |
FGD400 1RV-R |
No. of Cores x Cross Section |
Class of Conductor |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Nominal Overall Diameter |
Approx. Weight |
No.xmm2 |
|
mm |
mm |
mm |
mm |
2 Cores |
2x1.5 |
2 |
0.7 |
1.8 |
9.2 |
109 |
2x2.5 |
2 |
0.7 |
1.8 |
10.0 |
138 |
2x4.0 |
2 |
0.7 |
1.8 |
11.0 |
182 |
2x6.0 |
2 |
0.7 |
1.8 |
12.0 |
234 |
2x10 |
2 |
0.7 |
1.8 |
13.6 |
333 |
2x16 |
2 |
0.7 |
1.8 |
15.4 |
468 |
2x25 |
2 |
0.9 |
1.8 |
18.4 |
686 |
2x35 |
2 |
0.9 |
1.8 |
20.6 |
926 |
2x50 |
2 |
1.0 |
1.8 |
23.6 |
1269 |
2x70 |
2 |
1.1 |
1.8 |
26.8 |
1699 |
2x95 |
2 |
1.1 |
1.9 |
30.2 |
2269 |
2x120 |
2 |
1.2 |
2.0 |
33.7 |
2853 |
2x150 |
2 |
1.4 |
2.2 |
37.5 |
3539 |
2x185 |
2 |
1.6 |
2.3 |
41.6 |
4329 |
2x240 |
2 |
1.7 |
2.5 |
46.7 |
5607 |
2x300 |
2 |
1.8 |
2.6 |
51.4 |
6892 |
2x400 |
2 |
2.0 |
2.9 |
58.9 |
9202 |
3 Cores |
|
|
|
|
|
3x1.5 |
2 |
0.7 |
1.8 |
9.6 |
133 |
3x2.5 |
2 |
0.7 |
1.8 |
10.5 |
174 |
3x4.0 |
2 |
0.7 |
1.8 |
11.6 |
236 |
3x6.0 |
2 |
0.7 |
1.8 |
12.6 |
310 |
3x10 |
2 |
0.7 |
1.8 |
14.4 |
452 |
3x16 |
2 |
0.7 |
1.8 |
16.3 |
648 |
3x25 |
2 |
0.9 |
1.8 |
19.5 |
963 |
3x35 |
2 |
0.9 |
1.8 |
21.9 |
1315 |
3x50 |
2 |
1.0 |
1.8 |
25.1 |
1818 |
3x70 |
2 |
1.1 |
1.9 |
28.7 |
2451 |
3x95 |
2 |
1.1 |
2.0 |
32.4 |
3287 |
3x120 |
2 |
1.2 |
2.1 |
36.1 |
4142 |
3x150 |
2 |
1.4 |
2.3 |
40.3 |
5140 |
3x185 |
2 |
1.6 |
2.4 |
44.6 |
6298 |
3x240 |
2 |
1.7 |
2.6 |
50.2 |
8170 |
3x300 |
2 |
1.8 |
2.7 |
55.2 |
10063 |
3x400 |
2 |
2.0 |
3.0 |
63.3 |
13451 |
3 Cores+1 Earth Conductor |
|
|
power conductor |
earth conductor |
|
|
|
3x16/10 |
2 |
0.7 |
0.7 |
1.8 |
17.5 |
793 |
3x25/16 |
2 |
0.9 |
0.7 |
1.8 |
21.2 |
1070 |
3x35/16 |
2 |
0.9 |
0.7 |
1.8 |
23.8 |
1349 |
3x50/25 |
2 |
1.0 |
0.9 |
1.8 |
27.5 |
1890 |
3x70/35 |
2 |
1.1 |
0.9 |
2.0 |
31.7 |
2660 |
3x95/50 |
2 |
1.1 |
1.0 |
2.1 |
35.8 |
3650 |
3x120/70 |
2 |
1.2 |
1.1 |
2.3 |
39.9 |
4610 |
3x150/70 |
2 |
1.4 |
1.1 |
2.4 |
44.6 |
5450 |
3x185/95 |
2 |
1.6 |
1.1 |
2.6 |
49.5 |
6680 |
3x240/120 |
2 |
1.7 |
1.2 |
2.8 |
55.7 |
8690 |
3x300/150 |
2 |
1.8 |
1.4 |
3.0 |
61.4 |
11170 |
3x400/185 |
2 |
1.8 |
1.6 |
3.2 |
70.4 |
11480 |
4 Cores |
4x1.5 |
2 |
0.7 |
1.8 |
10.4 |
169 |
4x2.5 |
2 |
0.7 |
1.8 |
11.3 |
220 |
4x4.0 |
2 |
0.7 |
1.8 |
12.5 |
297 |
4x6.0 |
2 |
0.7 |
1.8 |
13.7 |
392 |
4x10 |
2 |
0.7 |
1.8 |
15.7 |
585 |
4x16 |
2 |
0.7 |
1.8 |
17.8 |
851 |
4x25 |
2 |
0.9 |
1.8 |
21.5 |
1200 |
4x35(S) |
2 |
0.9 |
1.8 |
24.1 |
1600 |
4x50(S) |
2 |
1.0 |
1.8 |
27.8 |
2200 |
4x70(S) |
2 |
1.1 |
2.0 |
32.0 |
3050 |
4x95(S) |
2 |
1.1 |
2.1 |
36.1 |
4070 |
4x120(S) |
2 |
1.2 |
2.3 |
40.2 |
5915 |
4x150(S) |
2 |
1.4 |
2.4 |
44.9 |
6350 |
4x185(S) |
2 |
1.6 |
2.6 |
49.8 |
7890 |
4x240(S) |
2 |
1.7 |
2.8 |
56.0 |
10400 |
4x300(S) |
2 |
1.8 |
3.0 |
61.7 |
12810 |
4x400(S) |
2 |
2.0 |
3.2 |
70.7 |
15869 |
(S) - Sectoral Stranded Conductors |
5 Cores |
5x1.5 |
2 |
0.7 |
1.8 |
12.1 |
205 |
5x2.5 |
2 |
0.7 |
1.8 |
13.1 |
265 |
5x4.0 |
2 |
0.7 |
1.8 |
14.3 |
360 |
5x6.0 |
2 |
0.7 |
1.8 |
15.2 |
478 |
5x10 |
2 |
0.7 |
1.8 |
15.6 |
720 |
5x16 |
2 |
0.7 |
1.8 |
16.1 |
1050 |
5x25 |
2 |
0.9 |
1.8 |
18.6 |
1485 |
5x35 |
2 |
0.9 |
1.8 |
21.3 |
1940 |
5x50 |
2 |
1.0 |
2.1 |
25.9 |
2667 |
5x70 |
2 |
1.1 |
2.2 |
28.8 |
3698 |
5x95 |
2 |
1.1 |
2.4 |
29.4 |
4934 |
5x120 |
2 |
1.2 |
2.5 |
42.6 |
7171 |
5x150 |
2 |
1.4 |
2.7 |
47.7 |
7699 |
5x185 |
2 |
1.6 |
2.9 |
52.8 |
9566 |
5x240 |
2 |
1.7 |
3.1 |
58.7 |
12610 |
7 Cores |
7x1.5 |
2 |
0.7 |
1.8 |
12.4 |
225 |
7x2.5 |
2 |
0.7 |
1.8 |
13.8 |
303 |
7x4.0 |
2 |
0.7 |
1.8 |
15.5 |
422 |
10 Cores |
|
|
|
|
|
10x1.5 |
2 |
0.7 |
1.8 |
15.6 |
325 |
10x2.5 |
2 |
0.7 |
1.8 |
17.5 |
426 |
10x4.0 |
2 |
0.7 |
1.8 |
19.7 |
597 |
12 Cores |
12x1.5 |
2 |
0.7 |
1.8 |
16.2 |
370 |
12x2.5 |
2 |
0.7 |
1.8 |
18.1 |
489 |
12x4.0 |
2 |
0.7 |
1.8 |
20.3 |
690 |
19 Cores |
19x1.5 |
2 |
0.7 |
1.8 |
19.0 |
516 |
19x2.5 |
2 |
0.7 |
1.8 |
21.3 |
725 |
19x4.0 |
2 |
0.7 |
1.8 |
24.0 |
1037 |
27 Cores |
27x1.5 |
2 |
0.7 |
1.8 |
22.7 |
712 |
27x2.5 |
2 |
0.7 |
1.8 |
25.5 |
1004 |
27x4.0 |
2 |
0.7 |
1.8 |
28.8 |
1445 |
37 Cores |
37x1.5 |
2 |
0.7 |
1.8 |
25.5 |
941 |
37x2.5 |
2 |
0.7 |
1.8 |
28.7 |
1334 |
37x4.0 |
2 |
0.7 |
1.8 |
32.5 |
1932 |
48 Cores |
48x1.5 |
2 |
0.7 |
1.8 |
29.0 |
1186 |
48x2.5 |
2 |
0.7 |
1.9 |
32.9 |
1706 |
48x4.0 |
2 |
0.7 |
1.9 |
37.3 |
2479 |
Note: Other conductor sizes & core configurations are available upon request.
Electrical Properties
Conductor Operating Temperature |
90°C |
Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E2A
Conductor cross- sectional area |
Reference Method A (enclosed in conduit in thermally insulating wall etc) |
Reference Method B (enclosed in conduit on a wall or in trunking etc) |
Reference Method C(clipped direct) |
Reference Method E (free air or on a perforated cable tray etc. horizontal or vertical) |
1 two-core cable, singlephase a.c. or d.c. |
1 three- or four-core cable, three -phase a.c. |
1 two-core cable, singlephase a.c. or d.c. |
1 three- or four-core cable, three -phase a.c. |
1 two-core cable, singlephase a.c. or d.c. |
1 three- or four-core cable, three -phase a.c. |
1 two-core cable, singlephase a.c. or d.c. |
1 three- or four-core cable, three -phase a.c. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
1.5 |
18.5 |
16.5 |
22 |
19.5 |
24 |
22 |
26 |
23 |
2.5 |
25 |
22 |
30 |
26 |
33 |
30 |
36 |
32 |
4.0 |
33 |
30 |
40 |
35 |
45 |
40 |
49 |
42 |
6.0 |
42 |
38 |
51 |
44 |
58 |
52 |
63 |
54 |
10 |
57 |
51 |
69 |
60 |
80 |
71 |
86 |
75 |
16 |
76 |
68 |
91 |
80 |
107 |
96 |
115 |
100 |
25 |
99 |
89 |
119 |
105 |
138 |
119 |
149 |
127 |
35 |
121 |
109 |
146 |
128 |
171 |
147 |
185 |
158 |
50 |
145 |
130 |
175 |
154 |
209 |
179 |
225 |
192 |
70 |
183 |
164 |
221 |
194 |
269 |
229 |
289 |
246 |
95 |
220 |
197 |
265 |
233 |
328 |
278 |
352 |
298 |
120 |
253 |
227 |
305 |
268 |
382 |
322 |
410 |
346 |
150 |
290 |
259 |
334 |
300 |
441 |
371 |
473 |
399 |
185 |
329 |
295 |
384 |
340 |
506 |
424 |
542 |
456 |
240 |
386 |
346 |
459 |
398 |
599 |
500 |
641 |
538 |
300 |
442 |
396 |
532 |
455 |
693 |
576 |
741 |
621 |
400 |
- |
- |
625 |
536 |
803 |
667 |
865 |
741 |
Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E2B
Nominal Cross Section Area |
Two-core cable d.c. |
Two-core cable, single-phase a.c. |
Three- or four-core cable, three-phase a.c. |
1 |
2 |
3 |
4 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
1.5 |
31 |
31 |
27 |
2.5 |
19 |
19 |
16 |
4.0 |
12 |
12 |
10 |
6.0 |
7.9 |
7.9 |
6.8 |
10 |
4.7 |
4.7 |
4.0 |
16 |
2.9 |
2.9 |
2.5 |
|
|
r |
x |
z |
r |
x |
z |
25 |
1.85 |
1.85 |
0.160 |
1.90 |
1.60 |
0.140 |
1.65 |
35 |
1.35 |
1.35 |
0.155 |
1.35 |
1.15 |
0.135 |
1.15 |
50 |
0.98 |
0.99 |
0.155 |
1.00 |
0.86 |
0.135 |
0.87 |
70 |
0.67 |
0.67 |
0.150 |
0.69 |
0.59 |
0.130 |
0.60 |
95 |
0.49 |
0.50 |
0.150 |
0.52 |
0.43 |
0.130 |
0.45 |
120 |
0.39 |
0.40 |
0.145 |
0.42 |
0.34 |
0.130 |
0.37 |
150 |
0.31 |
0.32 |
0.145 |
0.35 |
0.28 |
0.125 |
0.30 |
185 |
0.25 |
0.26 |
0.145 |
0.29 |
0.22 |
0.125 |
0.26 |
240 |
0.195 |
0.200 |
0.140 |
0.24 |
0.175 |
0.125 |
0.21 |
300 |
0.155 |
0.160 |
0.140 |
0.21 |
0.140 |
0.120 |
0.185 |
400 |
0.120 |
0.130 |
0.140 |
0.190 |
0.115 |
0.120 |
0.165 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
