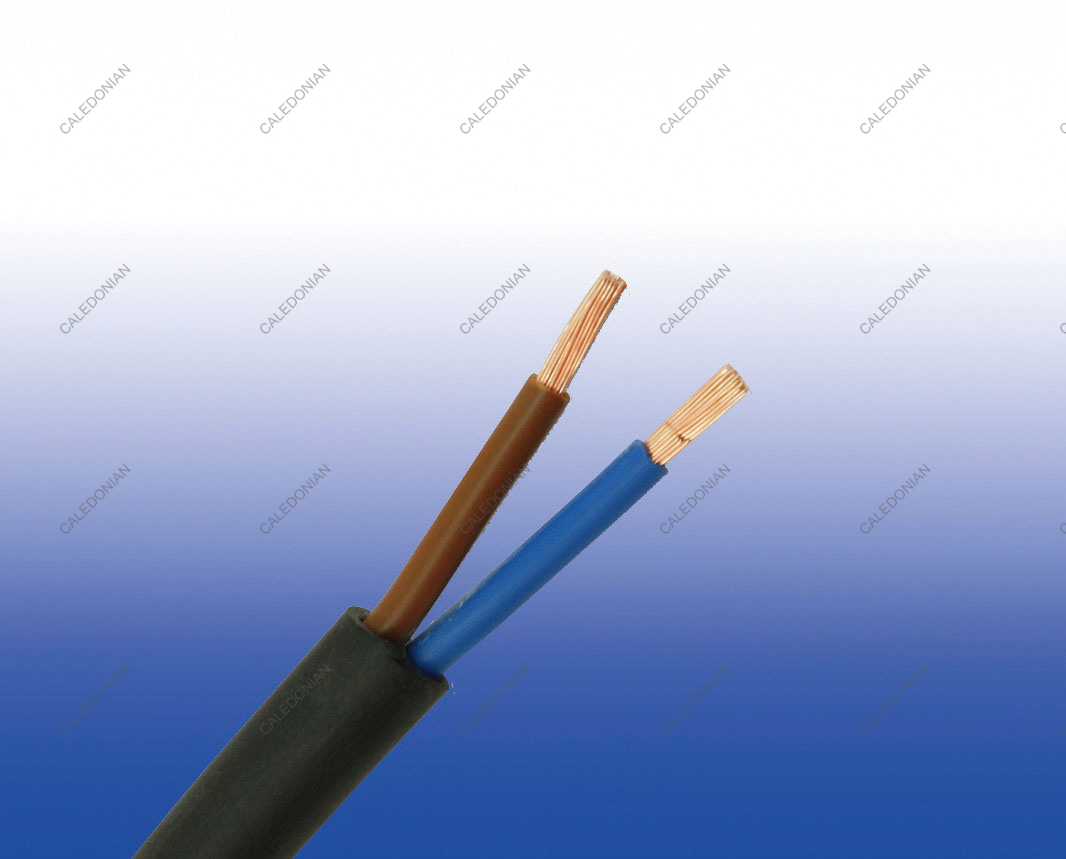

300/500V PVC Insulated, PVC Sheathed Power Cables to BS EN 50525 (2-5 Cores)
FGD200 05VV-F (CU/PVC/PVC 300/500V Class 5)
BS Code: 3182Y/3183Y/3184Y/3185Y
HAR Code: H05VV-F
APPLICATION
The cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals, and high-rise buildings.
STANDARDS
- Basic design to BS EN 50525-2-11(formerly BS 6500)
FIRE PERFORMANCE
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2 |
VOLTAGE RATING
300/500V

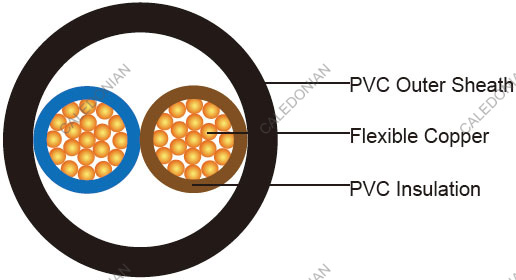

Cable Construction
| Conductor |
Flexible copper wire according to EN 60228 class 5. |
| Insulation |
PVC Type TI 2 according to EN 50363-3. |
| Filling |
For circular cable having two cores, the space between the cores shall be filled either by separate fillers or by the sheath filling the interstices. For circular cables with three, four or five cores, a centre filler may be used. |
| Outer Sheath |
PVC Type TM 2 according to EN 50363-4-1. A tape may be applied around the core assembly before application of the sheath. |
| Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti rodent and anti termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request. |
COLOUR CODE
Insulation Colour
Cables and cords with a green-and-yellow cores
| No. of cores |
Colour of coresb |
| Protective |
Live |
| 3 Cores |
Yellow/Green |
Blue |
Brown |
|
|
| 4 Cores |
Yellow/Green |
- |
Brown |
Black |
Grey |
| 4 Coresa |
Yellow/Green |
Blue |
Brown |
Black |
|
| 5 Cores |
Yellow/Green |
Blue |
Brown |
Black |
Grey |
a: For certain applications only.
b: In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour. |
Cables and cords without a green-and-yellow cores
| No. of cores |
Colour of coresb |
| 2 Cores |
Blue |
Brown |
|
|
|
| 3 Cores |
- |
Brown |
Black |
Grey |
|
| 3 Coresa |
Blue |
Brown |
Black |
|
|
| 4 Cores |
Blue |
Brown |
Black |
Grey |
|
| 5 Cores |
Blue |
Brown |
Black |
Grey |
Black |
a: For certain applications only.
b: In this table an uninsulated concentric conductor, such as a metallic sheath, armour or screen wire, is not regarded as a core. A concentric conductor is identified by its position and, therefore, need not be identified by colour. |
Sheath Colour : Black, other colours can be offered upon request.
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation (PVC) |
70°C |
| Maximum short circuit temperature (5 Seconds) |
160°C |
| Minimum bending radius |
Up to 12mm^2: 3 x overall diameter |
| |
Above 12mm^2: 4 x overall diameter |
CONSTRUCTION PARAMETERS
| Conductor |
FGD200 05VV-F |
| No. of Cores x Cross Section |
Class of Conductor |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Maximum Overall Diameter |
Approx. Weight |
| No.xmm² |
|
mm |
mm |
mm |
kg/km |
| 2x0.75 |
5 |
0.6 |
0.8 |
7.2 |
57 |
| 2x1.0 |
5 |
0.6 |
0.8 |
7.5 |
65 |
| 2x1.5 |
5 |
0.7 |
0.8 |
8.6 |
87 |
| 2x2.5 |
5 |
0.8 |
1.0 |
10.6 |
134 |
| 2x4.0 |
5 |
0.8 |
1.1 |
12.1 |
174 |
| 3x0.75 |
5 |
0.6 |
0.8 |
7.6 |
68 |
| 3x1.0 |
5 |
0.6 |
0.8 |
8.0 |
79 |
| 3x1.5 |
5 |
0.7 |
0.9 |
9.4 |
111 |
| 3x2.5 |
5 |
0.8 |
1.1 |
11.4 |
169 |
| 3x4.0 |
5 |
0.8 |
1.2 |
13.1 |
233 |
| 4x0.75 |
5 |
0.6 |
0.8 |
8.3 |
84 |
| 4x1.0 |
5 |
0.6 |
0.9 |
9.0 |
101 |
| 4x1.5 |
5 |
0.7 |
1.0 |
10.5 |
142 |
| 4x2.5 |
5 |
0.8 |
1.1 |
12.5 |
211 |
| 4x4.0 |
5 |
0.8 |
1.2 |
14.3 |
292 |
| 5x0.75 |
5 |
0.6 |
0.9 |
9.3 |
106 |
| 5x1.0 |
5 |
0.6 |
0.9 |
9.8 |
123 |
| 5x1.5 |
5 |
0.7 |
1.1 |
11.6 |
176 |
| 5x2.5 |
5 |
0.8 |
1.2 |
13.9 |
262 |
| 5x4.0 |
5 |
0.8 |
1.4 |
16.1 |
369 |
ELECTRICAL PROPERTIES
Current-Carrying Capacities (Amp) according to BS7671:2008 table 4F3A
| Conductor cross-sectional area |
Single-phase a.c. |
Three-phase a.c. |
| mm² |
A |
A |
| 0.75 |
6 |
6 |
| 1.0 |
10 |
10 |
| 1.5 |
16 |
16 |
| 2.5 |
25 |
20 |
| 4.0 |
32 |
25 |
Voltage Drop (Per Amp Per Meter) according to BS7671:2008 table 4F3B
| Conductor cross-sectional area |
d.c. or single-phase a.c. |
Three-phase a.c. |
| mm² |
mV/A/m |
mV/A/m |
| 0.75 |
62 |
54 |
| 1.0 |
46 |
40 |
| 1.5 |
32 |
27 |
| 2.5 |
19 |
16 |
| 4.0 |
12 |
10 |
