Flame Retardant Overall Screened, Armoured Instrumentation Cables (Multicore)

RE-2X(St)YSWAY

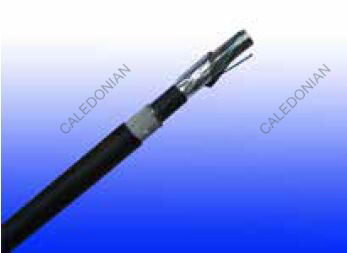

Flame Retardant Overall Screened Instrumentation Cables (Multicore)Flame Retardant Overall Screened Instrumentation Cables (Multicore)

APPLICATION

The armoured XLPE versions are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally used within industrial process manufacturing plants for communication, data and voice transmission signals and services.

STANDARDS

  • Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) BS EN 60332-1-2

VOLTAGE RATING

300,500V

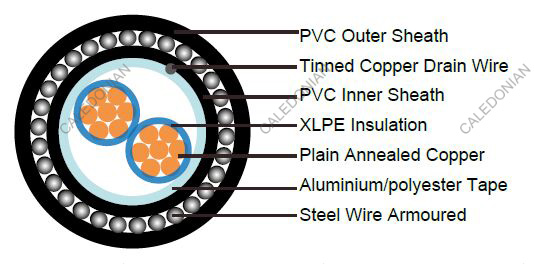

Cable Construction

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. PVC, PE, PP compound can be offered as options.
Overall Screen: Aluminium/polyester tape is applied over the laid up cores with metallic side down in contact with tinned copper drain wire, 0.5mm².
Inner Sheath: Thermoplastic PVC compound according to EN 50290-2-22.
Armouring: Galvanised steel wire.
Outer Sheath: Thermoplastic PVC compound according to EN 50290-2-22.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 160°C
Minimum bending radius: 10 x Overall Diameter

ELECTRICAL PROPERTIES

300V

Conductor Area Size mm2 0.5 0.75 1.0 1.5
Insulation Thickness (nominal) mm 0.4 0.4 0.4 0.5
Insulation Thickness (minimum) mm 0.26 0.26 0.26 0.35
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40
Operating Voltage V 300
Dielectric Strength for 1 Minute AC V ≥1000
DC V ≥2000

500V

Conductor Area Size mm2 0.5 0.75 1.0 1.5 2.5
Insulation Thickness (nominal) mm 0.6 0.6 0.6 0.6 0.7
Insulation Thickness (minimum) mm 0.44 0.44 0.44 0.44 0.53
Conductor Resistance (20°C) ohm/km 36.7 25.0 18.5 12.3 7.4
Minimum Insulation Resistance (20°C) Mohm/km 1000
Maximum Mutual Capacitance nf/km 250
Capacitance Unbalance pf/500m 500
Maximum L/R (ratio) μH/Ω 25 25 25 40 60
Operating Voltage V 500
Dielectric Strength for 1 Minute AC V ≥2000
DC V ≥3000

CONSTRUCTION PARAMETERS

300V

Conductor RE-2X(St)YSWAY
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2 mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.4 0.9 0.9 1.3 9.9 201
3x0.5 2 0.4 0.9 0.9 1.3 10.1 217
4x0.5 2 0.4 0.9 0.9 1.3 10.6 238
5x0.5 2 0.4 0.9 0.9 1.3 11.1 260
8x0.5 2 0.4 1.0 0.9 1.4 12.5 329
10x0.5 2 0.4 1.0 0.9 1.4 13.7 382
12x0.5 2 0.4 1.0 0.9 1.4 14.0 405
14x0.5 2 0.4 1.0 0.9 1.4 14.4 434
16x0.5 2 0.4 1.0 0.9 1.4 15.0 464
20x0.5 2 0.4 1.1 0.9 1.5 16.1 537
24x0.5 2 0.4 1.1 0.9 1.5 17.6 614
27x0.5 2 0.4 1.1 0.9 1.5 17.8 645
30x0.5 2 0.4 1.2 0.9 1.5 18.5 695
37x0.5 2 0.4 1.2 0.9 1.6 19.7 789
40x0.5 2 0.4 1.2 1.25 1.6 20.9 953
0.75mm2
2x0.75 2 0.4 0.9 0.9 1.3 10.2 217
3x0.75 2 0.4 0.9 0.9 1.3 10.5 237
4x0.75 2 0.4 0.9 0.9 1.4 11.2 266
5x0.75 2 0.4 1.0 0.9 1.4 12.0 302
8x0.75 2 0.4 1.0 0.9 1.4 13.1 368
10x0.75 2 0.4 1.1 0.9 1.5 14.8 447
12x0.75 2 0.4 1.1 0.9 1.5 15.1 477
14x0.75 2 0.4 1.1 0.9 1.5 15.6 513
16x0.75 2 0.4 1.1 0.9 1.5 16.2 551
20x0.75 2 0.4 1.2 0.9 1.6 17.4 639
24x0.75 2 0.4 1.3 0.9 1.6 19.3 746
27x0.75 2 0.4 1.3 0.9 1.6 19.6 787
30x0.75 2 0.4 1.3 0.9 1.6 20.1 834
37x0.75 2 0.4 1.3 1.25 1.7 22.1 1084
40x0.75 2 0.4 1.4 1.25 1.7 22.8 1153
1.0mm2
2x1.0 2 0.4 0.9 0.9 1.3 10.6 237
3x1.0 2 0.4 0.9 0.9 1.3 11.0 261
4x1.0 2 0.4 0.9 0.9 1.4 11.7 296
5x1.0 2 0.4 0.9 0.9 1.4 12.3 329
8x1.0 2 0.4 1.0 0.9 1.4 13.8 419
10x1.0 2 0.4 1.0 0.9 1.5 15.5 500
12x1.0 2 0.4 1.0 0.9 1.5 15.8 538
14x1.0 2 0.4 1.0 0.9 1.5 16.4 583
16x1.0 2 0.4 1.1 0.9 1.5 17.2 641
20x1.0 2 0.4 1.2 0.9 1.5 18.3 739
24x1.0 2 0.4 1.2 0.9 1.6 20.3 862
27x1.0 2 0.4 1.2 1.25 1.6 21.3 1042
30x1.0 2 0.4 1.2 1.25 1.6 21.9 1106
37x1.0 2 0.4 1.3 1.25 1.7 23.5 1278
40x1.0 2 0.4 1.3 1.25 1.7 24.2 1346
1.5mm2
2x1.5 2 0.5 0.9 0.9 1.4 11.8 284
3x1.5 2 0.5 0.9 0.9 1.4 12.2 316
4x1.5 2 0.5 1.0 0.9 1.4 13.1 366
5x1.5 2 0.5 1.0 0.9 1.4 13.8 409
8x1.5 2 0.5 1.1 0.9 1.5 15.7 536
10x1.5 2 0.5 1.1 0.9 1.5 17.6 635
12x1.5 2 0.5 1.1 0.9 1.5 18.0 688
14x1.5 2 0.5 1.2 0.9 1.5 18.8 762
16x1.5 2 0.5 1.2 0.9 1.6 19.8 836
20x1.5 2 0.5 1.3 1.25 1.6 21.8 1100
24x1.5 2 0.5 1.3 1.25 1.7 24.2 1281
27x1.5 2 0.5 1.4 1.25 1.7 24.8 1375
30x1.5 2 0.5 1.4 1.25 1.7 25.5 1464
37x1.5 2 0.5 1.4 1.25 1.8 27.2 1681
40x1.5 2 0.5 1.5 1.25 1.8 28.2 1792
500V
Conductor RE-2X(St)YSWAY
No. of Core X Cross Section Class of Conductor Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Armour Wire Diameter Nominal Outer Sheath Thickness Approx. Overall Diameter Approx. Weight
mm2 mm mm mm mm mm kg/km
0.5mm2
2x0.5 2 0.6 0.9 0.9 1.3 10.7 228
3x0.5 2 0.6 0.9 0.9 1.3 11.0 247
4x0.5 2 0.6 0.9 0.9 1.4 11.7 278
5x0.5 2 0.6 0.9 0.9 1.4 12.4 305
8x0.5 2 0.6 1.0 0.9 1.4 13.8 381
10x0.5 2 0.6 1.0 0.9 1.5 15.5 452
12x0.5 2 0.6 1.1 0.9 1.5 16.0 491
14x0.5 2 0.6 1.1 0.9 1.5 16.6 527
16x0.5 2 0.6 1.1 0.9 1.5 17.2 564
20x0.5 2 0.6 1.2 0.9 1.5 18.4 643
24x0.5 2 0.6 1.2 0.9 1.6 20.4 747
27x0.5 2 0.6 1.2 0.9 1.6 20.7 784
30x0.5 2 0.6 1.3 0.9 1.6 21.5 843
37x0.5 2 0.6 1.3 0.9 1.6 22.7 947
40x0.5 2 0.6 1.3 1.25 1.7 24.2 1153
0.75mm2
2x0.75 2 0.6 0.9 0.9 1.3 11.0 245
3x0.75 2 0.6 0.9 0.9 1.3 11.4 267
4x0.75 2 0.6 0.9 0.9 1.4 12.2 302
5x0.75 2 0.6 1.0 0.9 1.4 13.0 343
8x0.75 2 0.6 1.0 0.9 1.4 14.4 422
10x0.75 2 0.6 1.0 0.9 1.5 16.2 503
12x0.75 2 0.6 1.0 0.9 1.5 16.6 537
14x0.75 2 0.6 1.1 0.9 1.5 17.4 591
16x0.75 2 0.6 1.1 0.9 1.5 18.1 636
20x0.75 2 0.6 1.2 0.9 1.6 19.5 738
24x0.75 2 0.6 1.3 0.9 1.6 21.7 863
27x0.75 2 0.6 1.3 0.9 1.6 22.0 910
30x0.75 2 0.6 1.3 0.9 1.6 22.6 965
37x0.75 2 0.6 1.4 1.25 1.7 25.1 1271
40x0.75 2 0.6 1.4 1.25 1.7 25.8 1335
1.0mm2
2x1.0 2 0.6 0.9 0.9 1.3 11.4 265
3x1.0 2 0.6 0.9 0.9 1.4 12.0 297
4x1.0 2 0.6 1.0 0.9 1.4 12.9 342
5x1.0 2 0.6 1.0 0.9 1.4 13.6 380
8x1.0 2 0.6 1.0 0.9 1.4 15.1 473
10x1.0 2 0.6 1.1 0.9 1.5 17.3 578
12x1.0 2 0.6 1.1 0.9 1.5 17.7 622
14x1.0 2 0.6 1.1 0.9 1.5 18.3 674
16x1.0 2 0.6 1.2 0.9 1.6 19.4 749
20x1.0 2 0.6 1.2 0.9 1.6 20.6 849
24x1.0 2 0.6 1.3 0.9 1.6 22.9 996
27x1.0 2 0.6 1.3 1.25 1.7 24.2 1213
30x1.0 2 0.6 1.3 1.25 1.7 24.9 1286
37x1.0 2 0.6 1.4 1.25 1.7 26.5 1472
40x1.0 2 0.6 1.4 1.25 1.8 27.5 1563
1.5mm2
2x1.5 2 0.6 0.9 0.9 1.3 12.2 298
3x1.5 2 0.6 1.0 0.9 1.4 12.8 341
4x1.5 2 0.6 1.0 0.9 1.4 13.5 385
5x1.5 2 0.6 1.0 0.9 1.4 14.3 431
8x1.5 2 0.6 1.1 0.9 1.5 16.4 565
10x1.5 2 0.6 1.2 0.9 1.5 18.6 682
12x1.5 2 0.6 1.2 0.9 1.6 19.2 747
14x1.5 2 0.6 1.2 0.9 1.6 19.9 814
16x1.5 2 0.6 1.2 0.9 1.6 20.7 883
20x1.5 2 0.6 1.3 1.25 1.7 23.1 1172
24x1.5 2 0.6 1.4 1.25 1.7 25.6 1371
27x1.5 2 0.6 1.4 1.25 1.7 26.1 1452
30x1.5 2 0.6 1.4 1.25 1.8 27.0 1558
37x1.5 2 0.6 1.5 1.25 1.8 28.8 1794
40x1.5 2 0.6 1.5 1.25 1.8 29.7 1893
2.5mm2
2x2.5 2 0.7 1.0 0.9 1.4 13.6 369
3x2.5 2 0.7 1.0 0.9 1.4 14.1 419
4x2.5 2 0.7 1.0 0.9 1.4 15.0 479
5x2.5 2 0.7 1.1 0.9 1.5 16.4 561
8x2.5 2 0.7 1.2 0.9 1.5 18.6 738
10x2.5 2 0.7 1.3 0.9 1.6 21.4 906
12x2.5 2 0.7 1.3 0.9 1.6 22.0 990
14x2.5 2 0.7 1.3 1.25 1.7 23.8 1240
16x2.5 2 0.7 1.4 1.25 1.7 25.0 1363
20x2.5 2 0.7 1.4 1.25 1.8 26.7 1572
24x2.5 2 0.7 1.5 1.25 1.8 29.8 1845
27x2.5 2 0.7 1.6 1.25 1.9 30.7 2000
30x2.5 2 0.7 1.6 1.25 1.9 31.6 2138
37x2.5 2 0.7 1.7 1.25 1.9 33.8 2479
40x2.5 2 0.7 1.7 1.25 2.0 35.0 2640
Note: Other conductor sizes & core configurations are available upon request.
