Flame Retardant CAT6 Data Cables
FGD-CAT6U/UTP4P23
FGD-CAT6F/UTP4P23
FGD-CAT6SF/UTP4P23
APPLICATION
Cat6 Cable is a cable standard for Gigabit Ethernet and other network protocol, suitable for 10BaseT, 100BaseTx & 1000BaseT (Gigabit Ethernet) application. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
- ISO/IEC 11801、 EN 50173、 ANSI/TIA/EIA 568
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) | BS EN 60332-1-2 |
Cable Construction

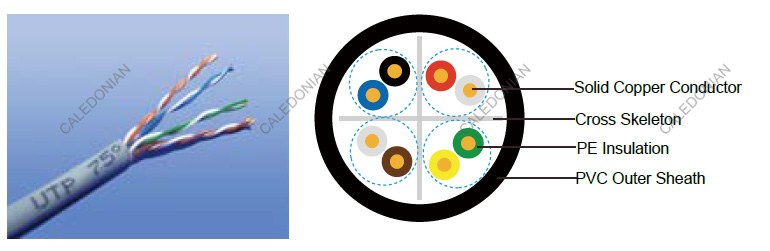

Conductors: 23AWG solid bare copper.Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Outer Sheath: Thermoplastic PVC compound.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

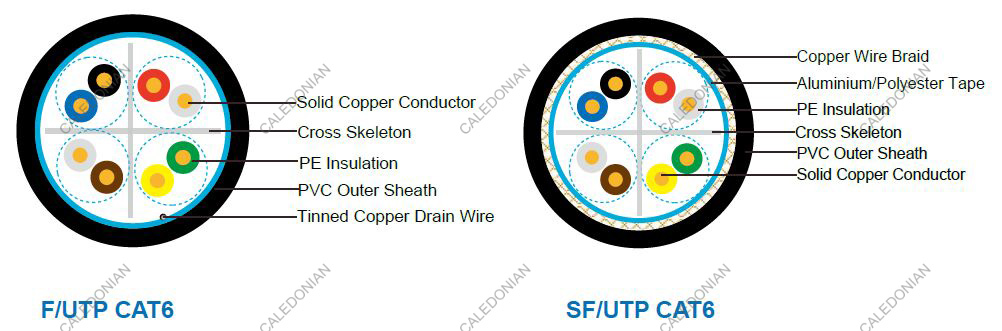

Cat6F/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat6SF/UTP: These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.
PHYSICAL AND THERMAL PROPERTIES
Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
ELECTRICAL PROPERTIES
AWG | 23 | |
---|---|---|
Nominal Conductor Diameter | mm | 0.56/0.57/0.58 |
Maximum DC Resistance@20°C | Ω/100m | 9.38 |
Maximum DCR Unbalance | % | 3 |
Maximum Mutual Capacitance | pF/m | 5.8 |
Maximum Capacitance Unbalance | pF/100m | 30 |
Characteristic Impedance@1-100MHz | Ω | 100±15 |
Maximum Propagation Delay Skew | ns/100m | 18 |
TRANSMISSION PROPERTIES
FREQ MHz | Attenuation dB/100m | NEXT dB | PSNEXT dB | ELFEXT dB/100m | PSELFEXT dB/100m | RL dB |
---|---|---|---|---|---|---|
0.772 | 1.8 | 76.0 | 74.0 | 70.0 | 67.0 | — |
1 | 2.0 | 74.3 | 72.3 | 67.8 | 64.8 | 20.0 |
4 | 3.8 | 65.3 | 63.3 | 55.7 | 52.7 | 23.0 |
8 | 5.3 | 60.8 | 58.8 | 49.7 | 46.7 | 24.5 |
10 | 6.0 | 59.3 | 57.3 | 47.8 | 44.8 | 25.0 |
16 | 7.6 | 56.3 | 54.3 | 43.7 | 40.7 | 25.0 |
20 | 8.5 | 54.8 | 52.8 | 41.7 | 38.7 | 25.0 |
25 | 9.5 | 53.3 | 51.3 | 39.8 | 36.8 | 24.3 |
31.25 | 10.7 | 51.9 | 49.9 | 37.9 | 34.9 | 23.6 |
62.5 | 15.4 | 47.4 | 45.4 | 31.8 | 28.8 | 21.5 |
100 | 19.8 | 44.3 | 42.3 | 27.8 | 24.8 | 20.1 |
155 | 25.2 | 41.5 | 39.5 | 23.9 | 20.9 | 18.8 |
200 | 29.0 | 39.8 | 37.8 | 21.7 | 18.7 | 18.0 |
250 | 32.8 | 38.3 | 36.3 | 19.8 | 16.8 | 17.3 |
CONSTRUCTION PARAMETERS
Cable Code | Conductor Diameter | Diameter Over Insulation | Pairs | Screen | Approx. Overall Diameter |
---|---|---|---|---|---|
mm | mm | Mm | |||
FGD-CAT6U/UTP4P23 | 0.56/0.57 | 1.02 | 4 | Nil | 6.0 |
FGD-CAT6F/UTP4P23 | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen | 6.3 |
FGD-CAT6SF/UTP4P23 | 0.57/0.58 | 1.02 | 4 | Overall Aluminum Tape Screen & Copper Wire Braid | 6.6 |
