Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables
FGD-CAT5EU/UTP4P24 CWB/SWB/SWA
FGD-CAT5EF/UTP4P24 CWB/SWB/SWA
FGD-CAT5ESF/UTP4P24 CWB/SWB/SWA
APPLICATION
Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.
STANDARDS
- ISO/IEC 11801、 EN 50173、 ANSI/TIA/EIA 568
FIRE PERFORMANCE
Flame Retardance (Single Vertical Wire Test) | BS EN 60332-1-2 |
VOLTAGE RATING
300,500V

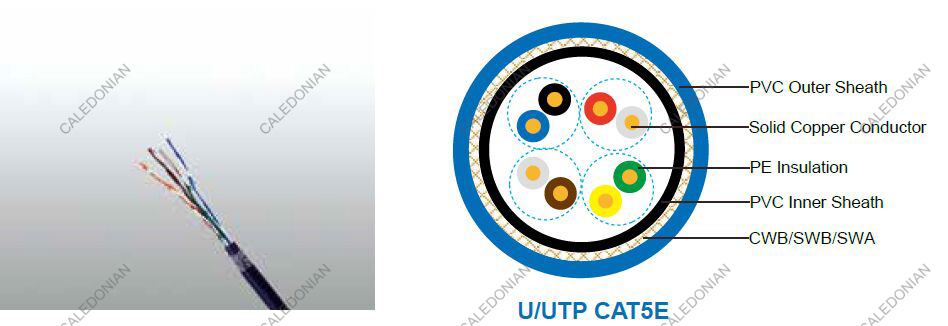

Cable Construction
Conductors: 24AWG solid bare copper.Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Flame retardant, low smoke and halogen-free polyolefin, coloured black.
Armouring:
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath: Thermoplastic PVC compound.
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option. Compliance to fire performance standard (IEC 60332-1, IEC 60332-3, UL 1581, UL 1666 etc) depends on the oxygen index of the PVC compound and the overall cable design. LSPVC can also be provided upon request.

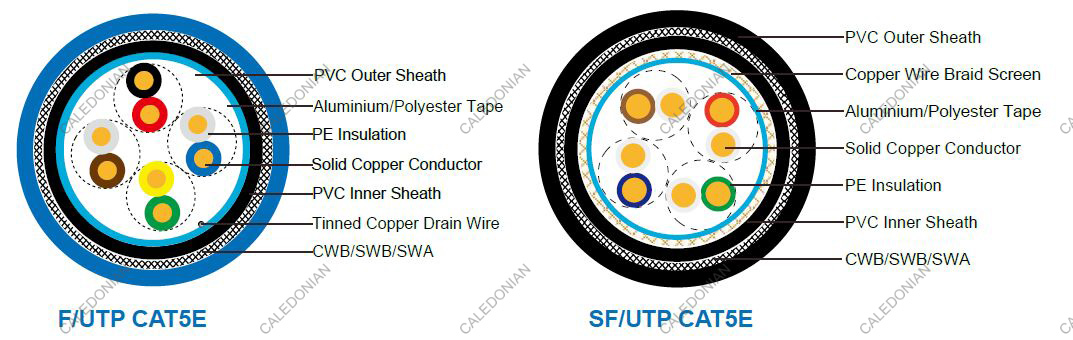

Cat5EF/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat5ESF/UTP: These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.
PHYSICAL AND THERMAL PROPERTIES
Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter
ELECTRICAL PROPERTIES
AWG | 24 | |
---|---|---|
Nominal Conductor Diameter | mm | 0.50/0.51/0.53 |
Maximum DC Resistance@20°C | Ω/100m | 9.38 |
Maximum DCR Unbalance | % | 5 |
Maximum Mutual Capacitance | pF/m | 55.8 |
Maximum Capacitance Unbalance | pF/100m | 330 |
Characteristic Impedance@1-100MHz | Ω | 100±15 |
Maximum Propagation Delay Skew | ns/100m | 45 |
TRANSMISSION PROPERTIES
FREQ MHz | Attenuation dB/100m | NEXT dB | PSNEXT dB | ELFEXT dB/100m | PSELFEXT dB/100m | RL dB |
---|---|---|---|---|---|---|
0.772 | 1.8 | 67.0 | 64.0 | 66.0 | 63.0 | — |
1 | 2.0 | 65.3 | 62.3 | 63.8 | 60.8 | 20.2 |
4 | 4.1 | 56.3 | 53.3 | 51.7 | 48.7 | 23.0 |
8 | 5.8 | 51.8 | 48.8 | 45.7 | 42.7 | 24.5 |
10 | 6.5 | 50.3 | 47.3 | 43.8 | 40.8 | 25.0 |
16 | 8.2 | 47.3 | 44.3 | 39.7 | 36.7 | 25.0 |
20 | 9.3 | 45.8 | 42.8 | 37.7 | 34.7 | 25.0 |
25 | 10.4 | 44.3 | 41.3 | 35.8 | 32.8 | 24.3 |
31.25 | 11.7 | 42.9 | 39.9 | 33.9 | 30.9 | 23.6 |
62.5 | 17.0 | 38.4 | 35.4 | 27.8 | 24.8 | 21.5 |
100 | 22.0 | 35.3 | 32.3 | 23.8 | 20.8 | 20.1 |
CONSTRUCTION PARAMETERS
Cable Code | Construction No. of Elements×No. of Cores in Element×Conductor Diameter | Nominal Insulation Thickness | Nominal Inner Sheath Thickness | Nominal Outer Sheath Thickness | Approx. Overall Diameter | Nominal Weight |
---|---|---|---|---|---|---|
mm | mm | mm | mm | mm | kg/km | |
FGD-CAT5EU/UTP4P24 CWB | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 7.68 | 97 |
FGD-CAT5EU/UTP4P24 SWB | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 7.68 | 93 |
FGD-CAT5EU/UTP4P24 SWA | 4×2×0.5 | 0.2 | 0.6 | 1.0 | 8.68 | 165 |
FGD-CAT5EF/UTP4P24 CWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.28 | 116 |
FGD-CAT5EF/UTP4P24 SWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.28 | 112 |
FGD-CAT5EF/UTP4P24 SWA | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 9.28 | 192 |
FGD-CAT5ESF/UTP4P24 CWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.76 | 123 |
FGD-CAT5ESF/UTP4P24 SWB | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 8.76 | 119 |
FGD-CAT5ESF/UTP4P24 SWA | 4×2×0.53 | 0.2 | 0.6 | 1.0 | 9.76 | 216 |
