450/750V Aluminum Conductor, PVC Insulated, Non-sheathed Power Cables (Single Core)
FGD100 07AV-R (AL/PVC 450/750V Class 2)
Applications
This cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals, and high-rise buildings. This product type is CE and TUV approved.
Standard
Basic design to BS EN 50525-2-31(formerly BS 6004:2000)
Fire Performance
| Flame Retardance (Single Vertical Wire Test) |
EN 60332-1-2 |
Voltage Rating
450/750V

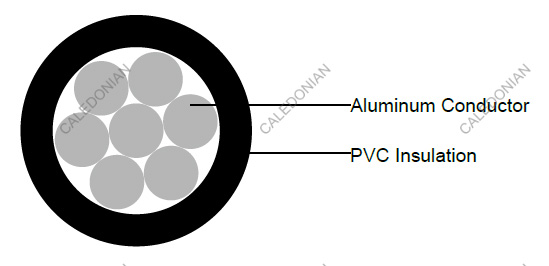

Construction
| Conductor |
Aluminum wire, stranded according to BS EN 60228 class 2.
|
| Insulation |
PVC Type TI 1 according to BS EN 50363-3. |
Colour Code
Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow.
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation (PVC): |
70°C |
| Maximum short circuit temperature (5 Seconds): |
160°C |
| Minimum bending radius |
|
| |
Up to 8mm²: |
4 x overall Diameter |
| |
8mm² to 12mm²: |
5 x overall Diameter |
| |
Above 12mm²: |
6 x Overall Diameter |
|
Parameter
| Conductor |
FGD100 07AV-R |
| No. of Cores x Cross Section |
Class of Conductor |
Nominal Insulation
Thickness |
AOverall Diameter |
Approx. Weight |
| No.xmm2 |
|
mm |
mm |
kg/km |
| 1x1.5 |
2 |
0.7 |
6.0 |
12 |
| 1x2.5 |
2 |
0.8 |
7.2 |
17 |
| 1x4.0 |
2 |
0.8 |
8.3 |
24 |
| 1x6.0 |
2 |
0.8 |
9.4 |
31 |
| 1x10 |
2 |
1.0 |
12.1 |
52 |
| 1x16 |
2 |
1.0 |
14.2 |
73 |
| 1x25 |
2 |
1.2 |
17.6 |
114 |
| 1x35 |
2 |
1.2 |
19.9 |
147 |
| 1x50 |
2 |
1.4 |
23.4 |
201 |
| 1x70 |
2 |
1.4 |
27.0 |
272 |
| 1x95 |
2 |
1.6 |
31.6 |
373 |
| 1x120 |
2 |
1.6 |
34.8 |
455 |
| 1x150 |
2 |
1.8 |
38.7 |
562 |
| 1x185 |
2 |
2.0 |
43.3 |
703 |
| 1x240 |
2 |
2.2 |
49.3 |
913 |
| 1x300 |
2 |
2.4 |
55.0 |
1137 |
| 1x400 |
2 |
2.6 |
61.7 |
1438 |
| 1x500 |
2 |
2.8 |
68.8 |
1794 |
Electrical PROPERTIES
| Conductor Operating Temperature |
70°C |
| Ambient Temperature |
30°C |
