LSZH Flame Retardant Individual and Overall Screened, Armoured Instrumentation Cables (Multipair)

RE-2X(St)HSWAH PiMF

APPLICATION

The armoured LSZH sheathed cables are generally used when the risk of mechanical damage is increased. The galvanized steel wire armour provides excellent protection. Generally, the cables are used within industrial process manufacturing plants for communication, data and voice transmission signals and services. Also used for the interconnection of electrical equipment and instruments, the LSZH sheath can reduce toxic smoke and fume emission.

STANDARDS

Basic design to BS EN 50288-7 (formerly BS 5308)

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test)	IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test)	IEC 60332-3-24; EN 60332-3-24
Halogen Free	IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission	IEC 60754-2; EN 50267-2-2
minimum Smoke Emission	IEC 61034-2; EN 61034-2

VOLTAGE RATING

300, 500V

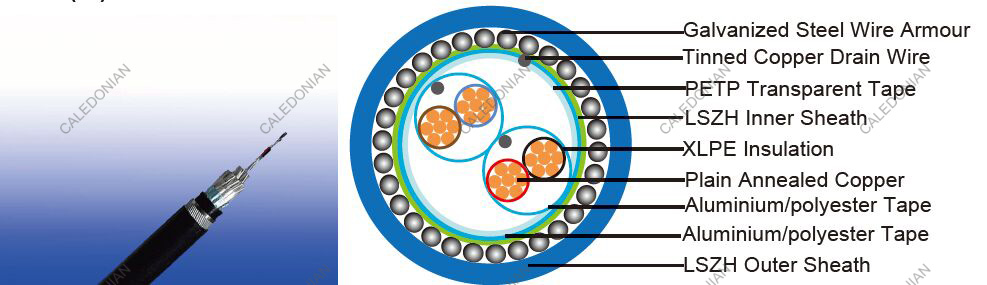

CABLE CONSTRUCTION

Conductor: Plain or metal coated copper wire, solid, stranded or flexible according to IEC 60228 class 1, 2 and 5.
Insulation: Extruded XLPE compound according to EN 50290-2-29. LSZH, PE, PP compound can be offered as options.
Pairs: Two insulated conductors uniformly twisted together with a lay not exceeding 100mm (≤1.5mm2) or 150mm (for 2.5mm2).
Individual Screen: Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Binder tape: PETP transparent tape.
Overall Screen:Aluminium/polyester tape is applied over the laid up pairs with metallic side down in contact with tinned copper drain wire, 0.5mm².
Inner Sheath: Thermoplastic LSZH compound.
Amouring: Galvanized steel wire armour.
Outer Sheath: Thermoplastic LSZH compound according to EN 50290-2-22.
Outer Sheath Option: Thermoplastic LSZH compound. UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

COLOUR CODE

Insulation Colour: Colours and/or additional ring markings and/or symbols achieved by the use of coloured insulation or by a coloured surface using extrusion, printing or painting.
Outer Sheath: Black. Other colours can be offered upon request.

Physical AND THERMAL PROPERTIES

Temperature range during operation: -30°C - +90°C
Temperature range fixed installation: -5°C - +50°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 10 x Overall Diameter

Electrical Properties

300V

Conductor Area Size		mm2	0.5	0.75	1.0	1.5
Insulation Thickness (nominal)		mm	0.4	0.4	0.4	0.5
Insulation Thickness (minimum)		mm	0.26	0.26	0.26	0.35
Conductor Resistance (20°C)		ohm/km	36.7	25.0	18.5	12.3
Minimum Insulation Resistance (20°C)		Mohm/km	1000
Maximum Mutual Capacitance		nf/km	250
Capacitance Unbalance		pf/500m	500
Maximum L/R (ratio)		μH/Ω	25	25	25	40
Operating Voltage		V	300
Dielectric Strength for 1 Minute	AC	V	≥1000
	DC	V	≥2000

500V

Conductor Area Size		mm2	0.5	0.75	1.0	1.5	2.5
Insulation Thickness (nominal)		mm	0.6	0.6	0.6	0.6	0.7
Insulation Thickness (minimum)		mm	0.44	0.44	0.44	0.44	0.53
Conductor Resistance (20°C)		ohm/km	36.7	25.0	18.5	12.3	7.4
Minimum Insulation Resistance (20°C)		Mohm/km	1000
Maximum Mutual Capacitance		nf/km	250
Capacitance Unbalance		pf/500m	500
Maximum L/R (ratio)		μH/Ω	25	25	25	40	60
Operating Voltage		V	500
Dielectric Strength for 1 Minute	AC	V	≥2000
	DC	V	≥3000

CONSTRUCTION PARAMETERS

300V

Conductor		RE-2X(St)HSWAH PiMF
No. of Core X Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2		mm	mm	mm	mm	mm	kg/km
0.5mm2
2x2x0.5	2	0.4	1.0	0.9	1.4	13.2	353
3x2x0.5	2	0.4	1.0	0.9	1.4	13.6	390
4x2x0.5	2	0.4	1.1	0.9	1.5	14.9	458
5x2x0.5	2	0.4	1.1	0.9	1.5	15.8	511
8x2x0.5	2	0.4	1.1	0.9	1.5	17.7	639
10x2x0.5	2	0.4	1.2	0.9	1.6	20.3	784
12x2x0.5	2	0.4	1.2	0.9	1.6	20.8	843
16x2x0.5	2	0.4	1.3	1.25	1.7	23.6	1160
20x2x0.5	2	0.4	1.4	1.25	1.7	25.3	1325
24x2x0.5	2	0.4	1.5	1.25	1.8	28.4	1565
0.75mm2
2x2x0.75	2	0.4	1.0	0.9	1.4	13.8	387
3x2x0.75	2	0.4	1.1	0.9	1.5	14.7	450
4x2x0.75	2	0.4	1.1	0.9	1.5	15.6	509
5x2x0.75	2	0.4	1.2	0.9	1.5	16.8	583
8x2x0.75	2	0.4	1.2	0.9	1.6	19.1	747
10x2x0.75	2	0.4	1.3	1.25	1.6	22.5	1040
12x2x0.75	2	0.4	1.3	1.25	1.6	23.2	1129
16x2x0.75	2	0.4	1.4	1.25	1.7	25.3	1338
20x2x0.75	2	0.4	1.5	1.25	1.8	27.3	1550
24x2x0.75	2	0.4	1.5	1.25	1.8	30.3	1793
1.0mm2
2x2x1.0	2	0.4	1.0	0.9	1.4	14.5	427
3x2x1.0	2	0.4	1.1	0.9	1.5	15.5	502
4x2x1.0	2	0.4	1.2	0.9	1.5	16.8	584
5x2x1.0	2	0.4	1.2	0.9	1.6	18.1	668
8x2x1.0	2	0.4	1.2	0.9	1.6	20.4	854
10x2x1.0	2	0.4	1.3	1.25	1.7	24.2	1197
12x2x1.0	2	0.4	1.4	1.25	1.7	25.0	1310
16x2x1.0	2	0.4	1.5	1.25	1.8	27.5	1578
20x2x1.0	2	0.4	1.5	1.25	1.8	29.3	1796
24x2x1.0	2	0.4	1.6	1.25	1.9	32.9	2127
1.5mm2
2x2x1.5	2	0.5	1.1	0.9	1.5	16.6	534
3x2x1.5	2	0.5	1.2	0.9	1.6	17.7	630
4x2x1.5	2	0.5	1.2	0.9	1.6	19.0	723
5x2x1.5	2	0.5	1.3	1.25	1.6	21.2	961
8x2x1.5	2	0.5	1.3	1.25	1.7	24.2	1243
10x2x1.5	2	0.5	1.4	1.25	1.8	27.9	1522
12x2x1.5	2	0.5	1.5	1.25	1.8	28.9	1672
16x2x1.5	2	0.5	1.6	1.25	1.9	31.8	2025
20x2x1.5	2	0.5	1.7	1.25	2.0	34.4	2363
24x2x1.5	2	0.5	1.8	1.25	2.0	38.6	2777

500V

Conductor		RE-2X(St)HSWAH
No. of Core X Cross Section	Class of Conductor	Nominal Insulation Thickness	Nominal Inner Sheath Thickness	Nominal Armour Wire Diameter	Nominal Outer Sheath Thickness	Approx. Overall Diameter	Approx. Weight
mm2		mm	mm	mm	mm	mm	kg/km
0.5mm2
2x2x0.5	2	0.6	1.0	0.9	1.4	14.6	409
3x2x0.5	2	0.6	1.1	0.9	1.5	15.6	473
4x2x0.5	2	0.6	1.1	0.9	1.5	16.6	533
5x2x0.5	2	0.6	1.2	0.9	1.6	18.1	620
8x2x0.5	2	0.6	1.2	0.9	1.6	20.4	776
10x2x0.5	2	0.6	1.3	0.9	1.7	23.6	954
12x2x0.5	2	0.6	1.4	0.9	1.7	24.4	1042
16x2x0.5	2	0.6	1.5	1.25	1.8	27.6	1422
20x2x0.5	2	0.6	1.5	1.25	1.8	29.4	1600
24x2x0.5	2	0.6	1.6	1.25	1.9	33.0	1892
0.75mm2
2x2x0.75	2	0.6	1.1	0.9	1.5	15.6	463
3x2x0.75	2	0.6	1.1	0.9	1.5	16.3	516
4x2x0.75	2	0.6	1.2	0.9	1.6	17.8	607
5x2x0.75	2	0.6	1.2	0.9	1.6	19.0	681
8x2x0.75	2	0.6	1.3	0.9	1.6	21.7	879
10x2x0.75	2	0.6	1.4	1.25	1.7	25.7	1237
12x2x0.75	2	0.6	1.4	1.25	1.7	26.4	1326
16x2x0.75	2	0.6	1.5	1.25	1.8	29.1	1588
20x2x0.75	2	0.6	1.6	1.25	1.9	31.4	1838
24x2x0.75	2	0.6	1.7	1.25	2.0	35.4	2174
1.0mm2
2x2x1.0	2	0.6	1.1	0.9	1.5	16.4	505
3x2x1.0	2	0.6	1.2	0.9	1.5	17.3	581
4x2x1.0	2	0.6	1.2	0.9	1.6	18.7	672
5x2x1.0	2	0.6	1.3	0.9	1.6	20.2	773
8x2x1.0	2	0.6	1.3	0.9	1.7	23.1	1002
10x2x1.0	2	0.6	1.4	1.25	1.7	27.2	1386
12x2x1.0	2	0.6	1.5	1.25	1.8	28.3	1531
16x2x1.0	2	0.6	1.6	1.25	1.9	31.3	1840
20x2x1.0	2	0.6	1.7	1.25	1.9	33.5	2116
24x2x1.0	2	0.6	1.8	1.25	2.0	37.8	2505
1.5mm2
2x2x1.5	2	0.6	1.1	0.9	1.5	17.3	563
3x2x1.5	2	0.6	1.2	0.9	1.6	18.5	665
4x2x1.5	2	0.6	1.3	0.9	1.6	20.0	778
5x2x1.5	2	0.6	1.3	1.25	1.7	22.4	1027
8x2x1.5	2	0.6	1.4	1.25	1.7	25.6	1333
10x2x1.5	2	0.6	1.5	1.25	1.8	29.6	1632
12x2x1.5	2	0.6	1.6	1.25	1.9	30.7	1809
16x2x1.5	2	0.6	1.7	1.25	2.0	33.9	2186
20x2x1.5	2	0.6	1.8	1.25	2.0	36.4	2525
24x2x1.5	2	0.6	1.9	1.25	2.1	41.1	2992
2.5mm2
2x2x2.5	2	0.7	1.2	0.9	1.6	19.9	718
3x2x2.5	2	0.7	1.3	0.9	1.0	21.1	843
4x2x2.5	2	0.7	1.4	0.9	1.7	23.1	1008
5x2x2.5	2	0.7	1.5	1.25	1.8	26.0	1341
8x2x2.5	2	0.7	1.6	1.25	1.8	29.9	1762
10x2x2.5	2	0.7	1.7	1.25	2.0	34.8	2182
12x2x2.5	2	0.7	1.8	1.25	2.0	35.9	2406
16x2x2.5	2	0.7	1.9	1.25	2.1	39.7	2926
20x2x2.5	2	0.7	2.1	1.25	2.2	43.1	3457
24x2x2.5	2	0.7	2.2	1.25	2.4	48.9	4125
