Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables

FTX-CAT5EU/UTP4P24LH CWB/SWB/SWA
FTX-CAT5EF/UTP4P24LH CWB/SWB/SWA
FTX-CAT5ESF/UTP4P24LH CWB/SWB/SWA

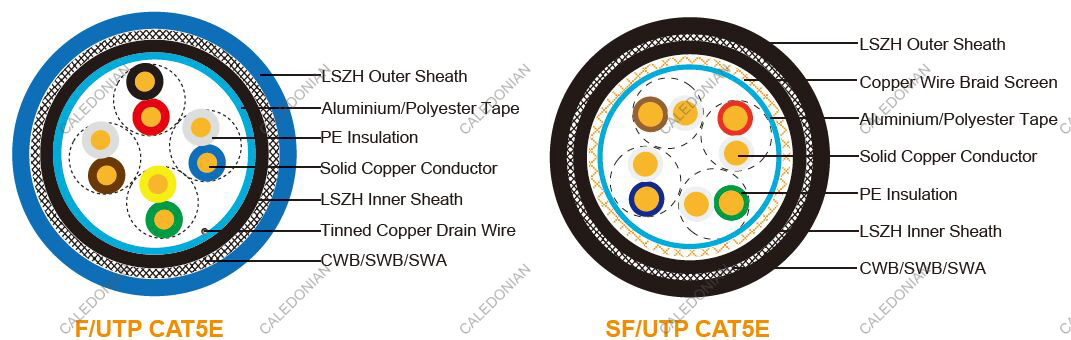

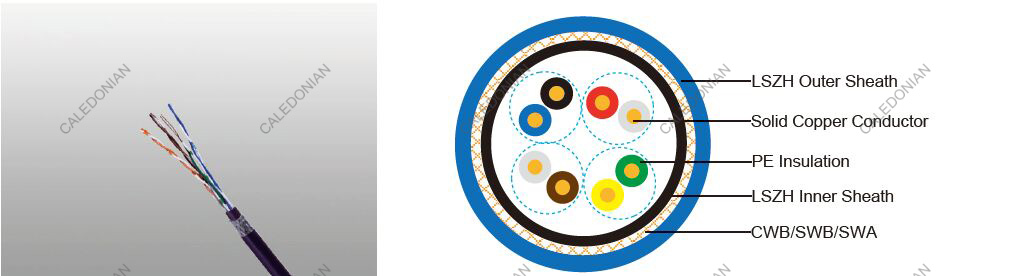

LSZH Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables

APPLICATION

Cat5E is a cable standard for Gigabit Ethernet and other network protocol, suitable for basic voice and data installations up to 100 MHz. In addition, these cables can be offered with copper wire braid armoured & flame retardant outer sheath, providing additional mechanically protection still maintaining the flexibility of the cable.

STANDARDS

  • ISO/IEC 11801、 EN 50173、 ANSI/TIA/EIA 568

FIRE PERFORMANCE

Flame Retardance (Single Vertical Wire Test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cable test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
minimum Smoke Emission IEC 61034-2; EN 61034-2

Cable Construction

Conductors: 24AWG solid bare copper.
Insulation: PE.
Twinning: Two coloured insulated conductors twisted together to form a pair.
Inner Sheath: Thermoplastic LSZH compound.
Armouring:
CWB: Copper Wire Braid
SWB: Steel Wire Braid
SWA: Steel Wire Armour
Outer Sheath: Thermoplastic LSZH compound type LTS3 as per BS 7655-6.1 (Thermosetting LSZH compound type SW2-SW4 as per BS 7655-2.6 can be offered).
Outer Sheath Option: UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.
Cat5EF/UTP: These cables have collective shielding of Aluminium/polyester tape with drain wire.
Cat5ESF/UTP: These cables have double collective shielding of Aluminium/polyester tape & copper wire braid.

PHYSICAL AND THERMAL PROPERTIES

Temperature range: -30°C - +75°C
Minimum bending radius during installation (mobile state): 8 x Overall Diameter
Minimum bending radius during operation (fixed state): 4 x Overall Diameter

ELECTRICAL PROPERTIES

AWG 　 24
Nominal Conductor Diameter mm 0.50/0.53
Maximum DC Resistance@20°C Ω/100m 9.38
Maximum DCR Unbalance % 5
Maximum Mutual Capacitance pF/m 55.8
Maximum Capacitance Unbalance pF/100m 330
Characteristic Impedance@1-100MHz Ω 100±15
Maximum Propagation Delay Skew ns/100m 45

TRANSMISSION PROPERTIES

FREQ MHz Attenuation dB/100m NEXT dB PSNEXT dB ELFEXT dB/100m PSELFEXT dB/100m RL dB
0.772 1.8 67.0 64.0 66.0 63.0 —
1 2.0 65.3 62.3 63.8 60.8 20.0
4 4.1 56.3 53.3 51.7 48.7 23.0
8 5.8 51.8 48.8 45.7 42.7 24.5
10 6.5 50.3 47.3 43.8 40.8 25.0
16 8.2 47.3 44.3 39.7 36.7 25.0
20 9.3 45.8 42.8 37.7 34.7 25.0
25 10.4 44.3 41.3 35.8 32.8 24.3
31.25 11.7 42.9 39.9 33.9 30.9 23.6
62.5 17.0 38.4 35.4 27.8 24.8 21.5
100 22.0 35.3 32.3 23.8 20.8 20.1
LSZH Flame Retardant CAT5E CWB/SWB/SWA Armoured Data Cables

CONSTRUCTION PARAMETERS

Cable Code Construction  No. of Elements×No. of Cores in Element×Conductor Diameter Nominal Insulation Thickness Nominal Inner Sheath Thickness Nominal Outer Sheath Thickness Approx. Overall Diameter Nominal Weight
  mm mm mm mm mm kg/km
FTX-CAT5EU/UTP4P24LH CWB 4×2×0.5 0.2 0.6 1.0 7.68 102
FTX-CAT5EU/UTP4P24LH SWB 4×2×0.5 0.2 0.6 1.0 7.68 98
FTX-CAT5EU/UTP4P24LH SWA 4×2×0.5 0.2 0.6 1.0 8.68 170
FTX-CAT5EF/UTP4P24LH CWB 4×2×0.53 0.2 0.6 1.0 8.28 121
FTX-CAT5EF/UTP4P24LH SWB 4×2×0.53 0.2 0.6 1.0 8.28 117
FTX-CAT5EF/UTP4P24LH SWA 4×2×0.53 0.2 0.6 1.0 9.28 197
FTX-CAT5ESF/UTP4P24LH CWB 4×2×0.53 0.2 0.6 1.0 8.76 128
FTX-CAT5ESF/UTP4P24LH SWB 4×2×0.53 0.2 0.6 1.0 8.76 124
FTX-CAT5ESF/UTP4P24LH SWA 4×2×0.53 0.2 0.6 1.0 9.76 221
