300/500V XLPE Insulated, LSZH Sheathed Power Cables to BS 7211(Single Core)

FTX300 05RZ1-U (CU/XLPE/LSZH 300/500V Class 1)

BS Code: 6241B

Applications

BS 7211 300/500V XLPE Insulated, LSZH Sheathed Power Cables are mainly used in power stations, mass transit underground passenger systems, airports, petrochemical plants, hotels, hospitals and high-rise buildings.

Standard

Basic design adapted to BS 7211:2012

FIRE PERFORMANCE

Flame Retardance (Single vertical wire or cable test) IEC 60332-1-2; EN 60332-1-2
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) IEC 60332-3-24; EN 60332-3-24
Halogen Free IEC 60754-1; EN 50267-2-1
No Corrosive Gas Emission IEC 60754-2; EN 50267-2-2
Minimum Smoke Emission IEC 61034-2; EN 61034-2

Voltage Rating

300/500V

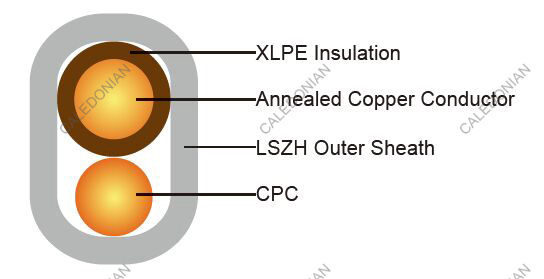

Construction

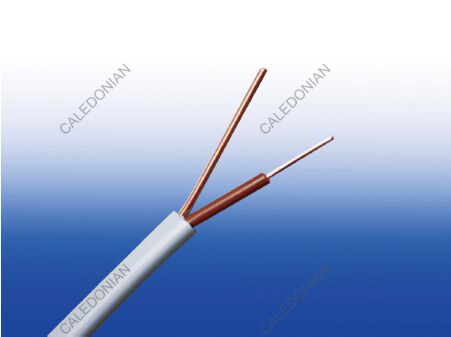

300/500V XLPE Insulated, LSZH Sheathed,  Power Cables Power Cables to BS 7211(Single Core)
Conductor Annealed copper conductor, solid according to BS EN 60228 class 1.
Insulation XLPE type GP8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to EN 50363-5 can be offered as option.
CPC (Circuit Protective Conductor) Uninsulated copper conductor.
Outer Sheath Extruded LSZH type LTS 2 according to BS 7655-6.1.
Outer Sheath Option UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite properties can be offered as option.

Colour Code

Insulation Colour Brown or blue.
Sheath Colour White; other colours can be offered upon request.

PHYSICAL AND THERMAL PROPERTIES

Maximum temperature range during operation: 90°C
Maximum short circuit temperature (5 Seconds): 250°C
Minimum bending radius: 4 x Overall Diameter

CONSTRUCTION PARAMETERS

Conductor FTX300 05RZ1-U
No. of Cores × Cross-sectional Area Conductor Class Nominal Insulation Thickness Cross- sectional Area of CPC Class of CPC Nominal Insulation Thickness Min. Overall Dimensions Max. Overall Dimensions Approx. Weight
No.×mm2   mm mm2   mm mm mm kg/km
1×1.0 1 0.70 1.0 1 0.9 4.1x5.2 5.0x6.3 45
1×1.5 1 0.70 1.0 1 0.9 4.4x5.4 5.3x6.6 55

Electrical Properties

Conductor Operating Temperature 90°C
Ambient Temperature 30°C

Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E1A

Conductor crosssectional area Ref. Method A (enclosed in conduit in thermally insulating wall etc.) Ref. Method B (enclosed in conduit on a wall or in trunking etc.) Ref. Method C (clipped direct)
2 cables, single-phase a.c. or d.c. 3 or 4 cables, three-phase a.c. 2 cables, single-phase a.c. or d.c 3 or 4 cables, three-phase a.c. 2 cables, single- phase a.c. or d.c. flat and touching 3 or 4 cables, three-phase a.c. flat and touching or trefoil
1 2 3 4 5 6 7
mm2 A A A A A A
1.0 14 13 17 15 19 17.5
1.5 19 17 23 20 25 23

Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E1B

Conductor cross- sectional area 2 cables d.c. 2 cables, single-phase a.c. 3 or 4 cables, three-phase a.c.
Ref. Methods A&B (enclosed in conduit or king) Ref. Methods C, F&G direct, on trays or Ref. Methods A&B (enclosed in conduit or trunking) Ref. Methods C, F&G (clipped direct, on trays or in free air)
Cables touching Cables spaced* Cables touching, Trefoil Cables touching, Flat Cables spaced*, Flat
1 2 3 4 5 6 7 8 9
mm2 mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m mV/A/m
1.0 46 46 46 46 40 40 40 40
1.5 31 31 31 31 27 27 27 27

Note: *Spacings larger than one cable diameter will result in a large voltage drop.
