450/750V XLPE Insulated, LSZH Sheathed Power Cables to BS 7211(Single Core)
FTX300 07RZ1-U/R (CU/XLPE/LSZH 450/750V Class 1/2)
BS Code: 6181B
Applications
BS 7211 450/750V XLPE Insulated, LSZH Sheathed Power Cables are mainly used in power stations, mass transit underground passenger systems, airports,petrochemical plants, hotels, hospitals and high-rise buildings.
Standard
Basic design to BS 7211:2012
FIRE PERFORMANCE
Flame Retardance (Single vertical wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
Halogen Free |
IEC 60754-1; EN 50267-2-1 |
No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
Voltage Rating
450/750V

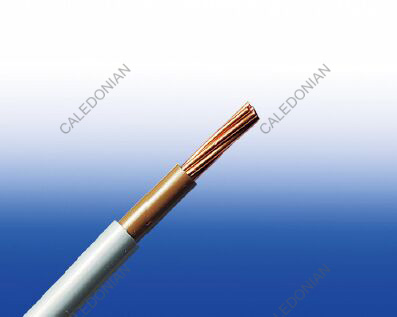

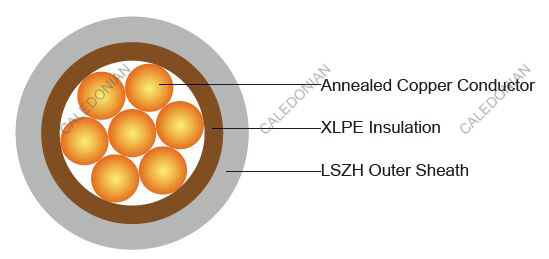

Construction
Conductor |
Annealed copper conductor, solid or stranded according to BS EN 60228 class 1 or class 2. |
Insulation |
XLPE type GP8 according to BS 7655-1.3. Crosslinked polyolefin material type EI 5 according to
EN 50363-5 can be offered as option. |
Outer Sheath |
Extruded LSZH type LTS 4 according to BS 7655-6.1. |
Outer Sheath Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option. |
Colour Code
Insulation Colour |
Brown or blue. |
Sheath Colour |
White; other colours can be offered upon request. |
PHYSICAL AND THERMAL PROPERTIES
Maximum temperature range during operation: |
90°C |
Maximum short circuit temperature (5 Seconds): |
250°C |
Minimum bending radius: |
OD<8mm: 4 × Overall Diameter
8mm≤OD≤12mm: 5 × Overall Diameter
OD>12mm: 6 × Overall Diameter |
CONSTRUCTION PARAMETERS
Conductor |
FTX300 07RZ1-U/R |
No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Nominal Sheath Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
No.×mm2 |
|
mm |
mm |
mm |
mm |
kg/km |
1×1.0 |
1 |
0.7 |
0.8 |
3.9 |
4.8 |
26 |
1×1.5 |
1 |
0.7 |
0.8 |
4.2 |
5.0 |
34 |
1×2.5 |
1 |
0.7 |
0.8 |
4.6 |
5.5 |
46 |
1×4 |
1 |
0.7 |
0.8 |
5.2 |
6.3 |
65 |
1×6 |
1 |
0.7 |
0.8 |
5.7 |
6.8 |
90 |
1×1.0 |
2 |
0.7 |
0.8 |
4.0 |
4.9 |
31 |
1×1.5 |
2 |
0.7 |
0.8 |
4.3 |
5.2 |
39 |
1×2.5 |
2 |
0.7 |
0.8 |
4.7 |
5.6 |
51 |
1×4 |
2 |
0.7 |
0.9 |
5.3 |
6.4 |
72 |
1×6 |
2 |
0.7 |
0.9 |
5.9 |
7.1 |
99 |
1×10 |
2 |
0.7 |
0.9 |
6.7 |
8.1 |
141 |
1×16 |
2 |
0.7 |
0.9 |
7.6 |
9.2 |
205 |
1×25 |
2 |
0.9 |
1.0 |
9.4 |
11.4 |
318 |
1×35 |
2 |
0.9 |
1.1 |
10.6 |
12.8 |
482 |
Electrical Properties
Conductor Operating Temperature |
90°C |
Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp) according to BS 7671:2008 table 4E1A
Conductor cross- sectional area |
Ref. Method A
(enclosed in conduit
in thermally insulating
wall etc) |
Ref. Method B (enclosed in conduit on a wall or in
trunking etc) |
Ref. Method C (clipped direct) |
Ref. Method F (in free air or on a perforated cable tray, horizontal or vertical etc) Touching |
Ref. Method G (in free air) Spaced by one cable diameter |
2
cables,
single-phase
a.c. or
d.c. |
3 or 4
cables,
three
-phase
a.c. |
2 cables,
singlephase
a.c. or
d.c |
3 or 4
cables,
threephase
a.c. |
2 cables,
single-phase
a.c. or d.c.
flat and
touching |
3 or 4 cables,
three-phase
a.c. flat and
touching or
trefoil |
2 cables,
singlephase
a.c. or
d.c. flat |
3
cables,
threephase
a.c. flat |
3 cables,
threephase
a.c.
trefoil |
2 cables, single-phase
a.c. or d.c. or 3 cables
three-phase a.c. flat |
Horizontal |
Vertical |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
mm2 |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
A |
1.0 |
14 |
13 |
17 |
15 |
19 |
17.5 |
- |
- |
- |
- |
- |
1.5 |
19 |
17 |
23 |
20 |
25 |
23 |
- |
- |
- |
- |
- |
2.5 |
26 |
23 |
31 |
28 |
34 |
31 |
- |
- |
- |
- |
- |
4 |
35 |
31 |
42 |
37 |
46 |
41 |
- |
- |
- |
- |
- |
6 |
45 |
40 |
54 |
48 |
59 |
54 |
- |
- |
- |
- |
- |
10 |
61 |
54 |
75 |
66 |
81 |
74 |
- |
- |
- |
- |
- |
16 |
81 |
73 |
100 |
88 |
109 |
99 |
- |
- |
- |
- |
- |
25 |
106 |
95 |
133 |
117 |
143 |
130 |
161 |
141 |
135 |
182 |
161 |
35 |
131 |
117 |
164 |
144 |
176 |
161 |
200 |
176 |
169 |
226 |
201 |
Voltage Drop (Per Amp Per Meter) according to BS 7671:2008 table 4E1B
Conductor cross- sectional area |
2 cables
d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, three-phase a.c. |
Ref. Methods A&B (enclosed in conduit or
king) |
Ref. Methods C, F&G
direct, on trays or |
Ref. Methods
A&B (enclosed
in conduit or
trunking) |
Ref. Methods C, F&G (clipped direct, on trays or in free air) |
Cables touching |
Cables
spaced* |
Cables
touching, Trefoil |
Cables
touching, Flat |
Cables
spaced*, Flat |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
1.0 |
46 |
46 |
46 |
46 |
40 |
40 |
40 |
40 |
1.5 |
31 |
31 |
31 |
31 |
27 |
27 |
27 |
27 |
2.5 |
19 |
19 |
19 |
19 |
16 |
16 |
16 |
16 |
4 |
12 |
12 |
12 |
12 |
10 |
10 |
10 |
10 |
6 |
7.9 |
7.9 |
7.9 |
7.9 |
6.8 |
6.8 |
6.8 |
6.8 |
10 |
4.7 |
4.7 |
4.7 |
4.7 |
4.0 |
4.0 |
4.0 |
4.0 |
16 |
2.9 |
2.9 |
2.9 |
2.9 |
2.5 |
2.5 |
2.5 |
2.5 |
|
|
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
r |
x |
z |
25 |
1.85 |
1.85 |
0.31 |
1.90 |
1.85 |
0.190 |
1.85 |
1.85 |
0.28 |
1.85 |
1.60 |
0.27 |
1.65 |
1.60 |
0.165 |
1.60 |
1.60 |
0.190 |
1.60 |
1.60 |
0.27 |
1.65 |
35 |
1.35 |
1.35 |
0.29 |
1.35 |
1.35 |
0.180 |
1.35 |
1.35 |
0.27 |
1.35 |
1.15 |
0.25 |
1.15 |
1.15 |
0.155 |
1.15 |
1.15 |
0.180 |
1.15 |
1.15 |
0.26 |
1.20 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
r = conductor resistance at operating temperature
x = reactance
z = impedance
