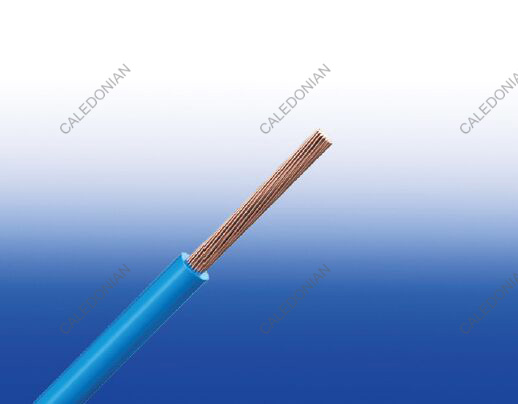

300/500V LSZH Insulated, Non-sheathed,Power Cables to BS EN 50525-3-31(Single Core)
FTX100 05Z1-U/R/K (CU/LSZH 300/500V Class 1/2/5)
HAR Code: H05Z1-U/R/K
Applications
BS EN 50525-3-31 300/500V LSZH Insulated, Non-sheathed Power Cables are mainly used in power stations, mass transit underground passenger systems, airports,
petrochemical plants, hotels, hospitals and high-rise buildings..
Standard
Basic design adapted to BS EN 50525-3-31
FIRE PERFORMANCE
| Flame Retardance (Single vertical wire or cable test) |
IEC 60332-1-2; EN 60332-1-2 |
| Reduced Fire Propagation (Vertically-mounted bundled wires & cables test) |
IEC 60332-3-24; EN 60332-3-24 |
| Halogen Free |
IEC 60754-1; EN 50267-2-1 |
| No Corrosive Gas Emission |
IEC 60754-2; EN 50267-2-2 |
| Minimum Smoke Emission |
IEC 61034-2; EN 61034-2 |
Voltage Rating
300/500V

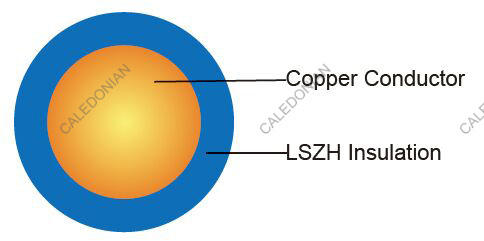

Construction
| Conductor |
Copper conductor according to BS EN 60228 class 1/2/5. |
| Insulation |
Thermoplastic compound of type TI 7 to EN 50363-7. |
| Insulation Option |
UV resistance, hydrocarbon resistance, oil resistance, anti-rodent and anti-termite
properties can be offered as option. |
Colour Code
Black, Blue, Brown, Grey, Orange, Pink, Red, Turquoise, Violet, White, Green and Yellow. Bi-colours of any
combination of the above mono-colours are permitted.
PHYSICAL AND THERMAL PROPERTIES
| Maximum temperature range during operation: |
70°C |
| Maximum short circuit temperature (5 Seconds): |
160°C |
| Minimum bending radius: |
4 x Overall Diameter |
CONSTRUCTION PARAMETERS
| Conductor |
FTX100 05Z1-U/R/K |
| No. of Cores × Cross-sectional Area |
Conductor Class |
Nominal Insulation Thickness |
Min. Overall Diameter |
Max. Overall Diameter |
Approx. Weight |
| No.×mm2 |
|
mm |
mm |
mm |
kg/km |
| 1×0.50 |
1 |
0.6 |
1.9 |
2.3 |
9.4 |
| 1×0.75 |
1 |
0.6 |
2.1 |
2.5 |
12.2 |
| 1×1.0 |
1 |
0.6 |
2.2 |
2.7 |
15.4 |
| 1×0.50 |
2 |
0.6 |
2.0 |
2.4 |
10.1 |
| 1×0.75 |
2 |
0.6 |
2.2 |
2.6 |
13.0 |
| 1×1.0 |
2 |
0.6 |
2.3 |
2.8 |
16.8 |
| 1×0.50 |
5 |
0.6 |
2.1 |
2.5 |
9.9 |
| 1×0.75 |
5 |
0.6 |
2.2 |
2.7 |
13.3 |
| 1×1.0 |
5 |
0.6 |
2.4 |
2.8 |
16.2 |
Electrical Properties
| Conductor Operating Temperature |
70°C |
| Ambient Temperature |
30°C |
Current-Carrying Capacities (Amp)
| Conductor Cross-sectional Area |
Single-phase a.c. |
Three-phase a.c. |
| mm2 |
A |
A |
| 0.5 |
3 |
3 |
| 0.75 |
6 |
6 |
| 1.0 |
10 |
10 |
| Note: These values apply to the majority of cases. Further information should be sought in unusual cases eg.:
(i) When high ambient temperatures are involved, ie. above 30°C
(ii) Where long lengths are used
(iii) Where ventilation is restricted
(iv) Where the cords are used for other purposes, ego internal wiring of apparatus. |
Voltage Drop (Per Amp Per Meter)
| Conductor cross- sectional area |
2 cables
d.c. |
2 cables, single-phase a.c. |
3 or 4 cables, three-phase a.c. |
| Ref. Methods A&B (enclosed in conduit or
king) |
Ref. Methods C, F&G
direct, on trays or |
Ref. Methods
A&B (enclosed
in conduit or
trunking) |
Ref. Methods C, F&G
(clipped direct, on trays or in free air) |
| Cables touching |
Cables spaced* |
Cables touching, Trefoil |
Cables touching, Flat |
Cables spaced*, Flat |
| 1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
| mm2 |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
mV/A/m |
| 0.5 |
93 |
93 |
93 |
93 |
80 |
80 |
80 |
80 |
| 0.75 |
62 |
62 |
62 |
62 |
54 |
54 |
54 |
54 |
| 1.0 |
46 |
46 |
46 |
46 |
40 |
40 |
40 |
40 |
Note: *Spacings larger than one cable diameter will result in a large voltage drop.
