FIG8 SELF-SUPPORTING CABLE
Application
FIG8 SELF-SUPPORTING CABLE is ideal for in long distance and interoffice communication in strong current zone, as well as power transmission system. The built in suspension stranded rope provides high tensile strength, enabling the cable suited for large span installation, resulting in time and installation cost savings. The suspension wire, being an integral part of the cable, is easily available for gripping, fastening and pulling. This cable is featured of its lightness, low dispersion and high tensile strength.
Description

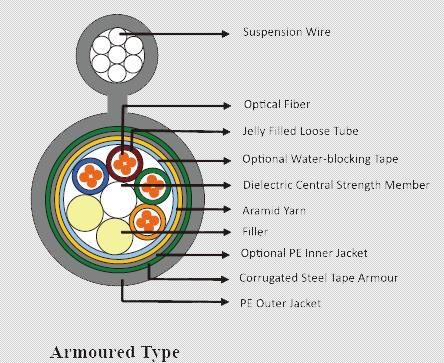

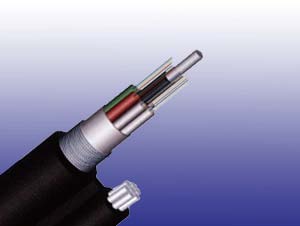

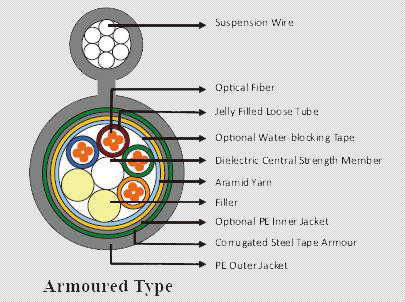

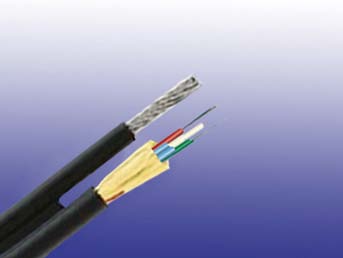

FIG8 SELF-SUPPORTING CABLE consists of 5 to 36 fibers containing tubes or fi llers stranded in up to 3 layers around a central strength member and bound under a PE jacket. Each jelly fi lled tube contains 4 -12 fi bers. Solid or stranded steel wire coated with polyethylene is usually used as central strength member. Fiber glass reinforced plastics (FRP) will be used as central strength member if non metallic construction is required. Either aramid yarn or fi ber glass is wound around the tube to provide physical protection and tensile strength. Water blocking materials are fi lled in the interstice of the cable core, core wrapping layer/water blocking tape. The cable can be jacketed with either PE, PVC or LSZH though PE is the preferred option for water protection purpose. For direct burial, steel wire armour or corrugated steel tape armour is applied with an optional inner jacket of either PVC or PE. An optional Aluminium moisture tape can be incorporated under the jacket for water blocking and shielding purpose. Cable cores are connected with the suspension wires by PE sheath to form a fi gure “8” shape. An optional ripcord is located under the jacket to facilitate jacket removal.
Construction
Physical Properties
| Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Nominal Outer Diameter(in) |
Maximum Pulling Load |
| Installation(N/Ib) |
In Service(N/Ib) |
| 2-24 |
389.0 |
261.07 |
12.6*25.1 |
0.50*0.99 |
2670/600 |
890/200 |
| 36-72 |
429.0 |
287.92 |
14.7*27.1 |
0.58*1.07 |
2670/600 |
890/200 |
| 96-144 |
571.0 |
383.22 |
20.2*32.6 |
0.80*1.29 |
2670/600 |
890/200 |
| 2-24 |
303.0 |
203.36 |
9.1*21.5 |
0.36*0.85 |
2670/600 |
890/200 |
| 36-72 |
332.0 |
222.82 |
11.1*23.5 |
0.44*0.93 |
2670/600 |
890/200 |
| 96-144 |
417.0 |
279.87 |
15.9*28.3 |
0.63*1.12 |
2670/600 |
890/200 |
Construction
Physical Properties
| Fiber Count |
Nominal Weight(kg/km) |
Nominal Weight(lb/kft) |
Nominal Outer Diameter(mm) |
Nominal Outer Diameter(in) |
Maximum Pulling Load |
| Installation(N/Ib) |
In Service(N/Ib) |
| 2-24 |
389.0 |
261.07 |
12.6*25.1 |
0.50*0.99 |
2670/600 |
890/200 |
| 36-72 |
429.0 |
287.92 |
14.7*27.1 |
0.58*1.07 |
2670/600 |
890/200 |
| 96-144 |
571.0 |
383.22 |
20.2*32.6 |
0.80*1.29 |
2670/600 |
890/200 |
Mechanical Properties
| Minimum Bending Radius: |
|
Maximum Compressive Load: |
4000N for unarmored cables; |
| Under installation: |
20×OD |
|
6000N for armoured cables |
| During operation |
0×OD for unarmoured cables |
Repeated Impact: |
4.4 N.m (J) |
| |
20×OD for armoured cables |
Twist (Torsion): |
180×10 times, 125×OD |
| Temperature Range: |
|
Cyclic Flexing: |
25 cycles for armoured cables. |
| Operating Temperature Range: |
-40℃(-40℉) to +70℃(+158℉) |
|
100 cycles for unarmoured cables. |
| Storage Temperature Range: |
-50℃(-58℉) to +70℃(+158℉) |
Crush Resistance: |
220N/cm (125lb/in) |
Fiber Compliance
| Temperature Cycling
Tensile Strength
Crush
Impact
Repeated Bending
Torsion
Kink
Cable Bend
Cool Bend |
IEC60794-1-2-F2
IEC60794-1-2-E1A
IEC60794-1-2-E3
IEC60794-1-2-E4
IEC60794-1-2-E6
IEC60794-1-2-E7
IEC60794-1-2-E10
IEC60794-1-2-E11
IEC60794-1-2-E11 |
Safety Compliance
| General Purpose Grade |
Flammability Test: OFN (UL1581) |
| Riser Grade |
Flammability Test: OFNR/FT4 (UL1666) |
| Plenum Grade |
Flammability Test: OFNP/FT6 (UL 910) |
| FRPVC Grade |
Flammability Test: IEC60332-1 |
| LSZH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2 |
| LSFROH Grade |
Halogen Content Test: IEC 60754-1
Acidity Test: IEC 60754;
Smoke Emission Test: IEC61034-1/2
Flammability Test: IEC60332-1 & IEC 60332-3C/A |
| FR Grade |
Fire Resistance Test : IEC 60331 / BS 6387 CWZ |
Standard Compliance
Telcordia GR-20 RUS 7 CFR 1755.900 (REA PE-90) ICEA S 87-640
Features
• Suitable for self supporting aerial, duct and direct burial installation
• Tear away messenger simplifi es grounding
• Ripcord allows easy cable entry and jacket remova
l• Compatible with existing Fig 8 hardware
• Flexible buffer tube simplifi es routing and splicing.
• Loose tube jelly fi lled for superior fi ber protection
• UV or moisture resistant for outdoor application
