Fiber Patch Cords
Basic Features
• Simplex or duplex fibers for selection.
• Different fiber connectors for selection.
• Ferrule Material: Ceramic, stainless steel, polymer
• Outer Jacket: PVC, FRPVC, LSZH
• Connector Types: ST/SC/FC/SMA905 or 906/D4/BICONIC/FDDI/MTRJ/LC/E2000/ DIN/EC
• FC, SC, ST, LC, MU connectors offered in either PC, UPC, APC polishing.
• Complying to applicables standards such as TIA/EIA-568 and IEC 874-1.
• Used for Ethernet, fiber optic system, video transmission, CATV and cable TV etc.
Technical Parameters
• Cladding Diameter: 125μm
• Core Diameter: 50/62.5μm (multimode); 9/125μm (single-mode)
• Tensile Strength: 15Kgf (except for 0.9mm)
• Diameter: 3mm/2mm
• Minimum Bending Radius: 10 x Overall Diameter
• Working Temperature: -40℃ ~ +75℃
• Storage Temperature: -50℃ ~ +85℃
• Minimum Insertion Life Cycles: 1000 times
• Single mode fiber patch cord (in general): Insertion Loss ≤ 0.3 dB (APC/UPC);
Return Loss≥50dB (UPC); ≥ 60dB (APC)
• MTRJ single mode fiber patch cord: Insertion loss ≤ 0.5 dB; Return Loss ≥ 35 dB
• Multimode fiber patch cord (in general):
Insertion Loss ≤ 0.3 dB (PC); ≤ 0.3 dB (UPC); ≤ 0.3 dB (APC)
Return Loss ≥ 35 dB (PC); ≥ 50 dB (UPC); ≥ 60 dB (APC)
• MTRJ multimode fiber patch cord: Insertion loss ≤ 0.5 dB; Return Loss≥20 dB
• Change on insertion loss for mechanical characteristics:
Interchangeability: 0.2dB
Repeatability (Insertion: 1,000 times): 0.2dB
Anti pulling load: 0.2dB (10Kg tension/3.0mm fiber)
Anti Vibration: 0.2dB (Vibration: 10-58Hz; Amplitude: 1.5mm, 10Hz/min, 2 hrs)
• Change on insertion loss for environmental characteristics:
Temperature Cycle: 0.2dB (-40℃ ~ +80℃ 5 cycles)
High Temperature Test: 0.2dB (High Temperature: 85℃ ,100 hrs)
Low Temperature Test: 0.2dB (Low Temperature: -40℃ , 100 hrs)
Humidity Test: 0.2dB (65℃ , 93% relative humidity, 100 hrs)
Product Highlights
• Using extra high precision ceramic ferrule with small concentricity error and core diameter, better insertion
loss and return loss can be achieved for optimized transmission performance.
• All fiber surface parameters such as the apex offset, fiber height and radius of curvature comply to IEC
standard.
• Besides attenuation and back reflection testing, cords are also checked by interferometer for fiber surface
parameters, including radius of curvature, apex offset and fiber heights for different FC, ST, SC, LC and
MU
connector types.
• Simplex, duplex and fan-outs can be offered.
• Different jacket such as PVC and LSOH grade available for selection.
• Low insertion loss and high return loss, with excellent interchangeability and repeatability.
• Durability, damp-proofing, resistant to coupling stress, high pull tension and adaptation to different harsh
environment such as dampness, extreme temperature, impact and vibration in accordance to ANSI/TIA
and
ISO/IEC standard.
• Environmentally stable, meeting Telcordia requirement.
ST, SC, FC (PC/UPC/APC) Fiber Patch Cord
Basic Features
• PC, UPC or APC polishing for selection.
• Low insertion loss and high return loss.
• The SC connectors for SC-SC fiber patch cords are of push pull design, being fit for 3.0mm fiber patch
cords.
• The ST connectors for ST-ST fiber patch cords are of metal ring design, being fit for 3.0mm fiber patch
cords.
• The ST connectors of LC-ST fiber patch cords are of metal ring design, being fit for 2.0mm fiber patch
cords.
• The SC connectors of LC-SC fiber patch cords are of push pull design, being fit for 2.0mm fiber patch
cords.
• Significant margin over ANSI/TIA/EIA 568 standard.
• Fiber Surface Parameters
Radius of Curvature: 5~12cm (APC); 7~25cm (PC)
Apex Offset: ≤ 100μm
Fiber Height: +100 ~ -100 nm
Deviation Angle: 8℃ ±0.3℃
Technical Parameters
| |
PC |
UPC |
APC |
| Simplex |
Duplex |
| Insertion Loss |
≤0.3dB |
≤0.3dB |
≤0.3dB |
| Return Loss |
≥45dB |
≥35dB |
≥50dB |
≥60dB |
| Working Temperature |
-20℃~70℃ |
-20℃~70℃ |
-20℃~70℃ |
| Storage Temperature |
-25℃~80℃ |
-25℃~80℃ |
-25℃~80℃ |
Maximum change in Insertion Loss
with repeated insertion |
0.1dB |
0.1dB |
0.1dB |
| Maximum Insertion /Withdrawal |
≥1000 times |
≥1000 times |
≥1000 times |

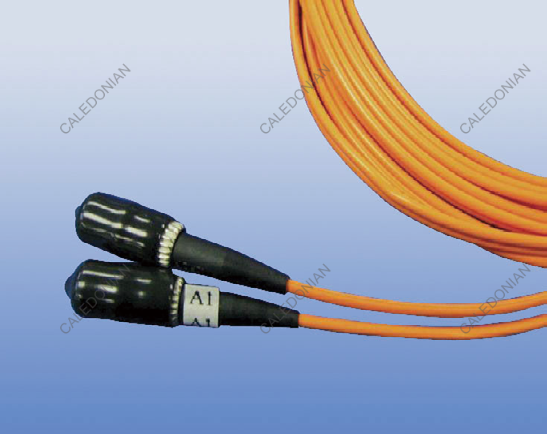

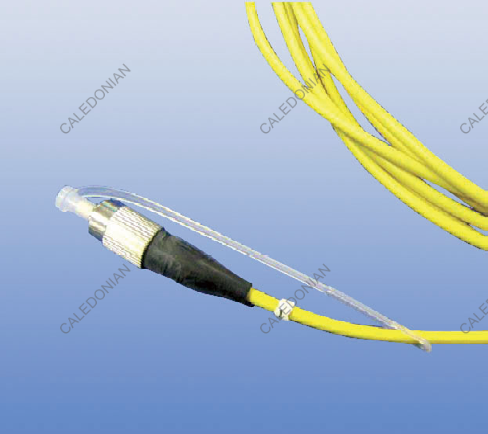

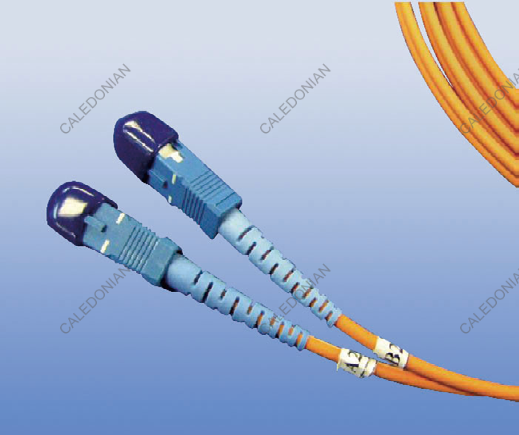

ST-ST Duplex Patch Cord SC-SC Duplex Patch Cord FC-FC Simplex Patch Cord |
MTRJ、MU、LC Fiber Patch Cords
Basic Features
• Push-pull connection, fast and reliable.
• Low insertion loss and high return loss.
• Being compact and light weight, it can provide high-density installation.
• 1.25um ceramic ferrule sfis for both single mode and multimode cables.
• MTRJ connector/adaptors are fit for duplex zip and round cords together with ribbon fiber cables.
• LC connector/adaptors are fit for simplex /duplex zip cords and MU connector /adaptor is fit for simplex zip
cords.
• Used for different fiber optic system, fiber optic connector, CATV and testing equipment etc.
Technical Parameters: (LC/MU)
| |
PC |
UPC |
| Simplex |
Duplex |
| Insertion Loss |
≤0.4dB |
≤0.4dB |
| Return Loss |
≥45dB |
≥35dB |
≥50dB |
| Working Temperature |
-20℃~70℃ |
-20℃~70℃ |
| Storage Temperature |
-25℃~80℃ |
-25℃~80℃ |
Maximum change in
Insertion
Loss with repeated insertion |
0.1dB |
0.1dB |
Maximum Insertion /
Withdrawal |
≥1000 times |
≥1000 times |
Electrical Specification Parameter: (MTRJ)
| |
PC |
UPC |
| Simplex |
Duplex |
| Insertion Loss |
≤0.5dB |
≤0.6dB |
| Return Loss |
≥35dB |
≥20dB |
≥45dB |
| Working Temperature |
-20℃~70℃ |
-20℃~70℃ |
| Storage Temperature |
-25℃~80℃ |
-55℃~85℃ |
Maximum change in
Insertion
Loss with repeated insertion |
0.1dB |
0.1dB |
Maximum Insertion /
Withdrawal |
≥1000 times |
≥1000 times |
SMA、FDDI Fiber Patch Cords
Basic Features
• SMA connectors are interchangeable and come with good surface polishing.
• FDDI connectors are equipped with built-in identification labels.
• FDDI connectors meet ANSI3T95 FDDI PMD standard.
• SMA connectors are suitable for use in LAN and low speed system test.
• FDDI connectors are suitable for duplex system, FDD backbone network and IEEE802.4 Token Bus.
Technical Parameters: (SMA, FDDI)
| |
SMA |
FDDI |
| Insertion Loss |
≤0.3dB |
≤0.3dB |
| Return Loss |
≥35dB |
≥45dB |
| Working Temperature |
-40℃~80℃ |
-40℃~80℃ |
| Storage Temperature |
-55℃~85℃ |
-55℃~85℃ |
Maximum change in Insertion
Loss with repeated insertion |
0.2dB |
0.2dB |
| Maximum Insertion /Withdrawal |
≥1000 times |
≥1000 times |
Ordering Code:
AD-AB-C-D-EFFF-G-HH-II-JJ
**AB**Left/Right Connector Types
ST=ST; SC=SC; FC=FC; SMA905=SMA905; SMA906=SMA906; FD=FDDI; MT=MTRJ; LC=LC (FC, SC,
ST, LC, MU Connector: PC, UPC, APC for selection)
**C**Cable Type Family
S=Simplex; D=Duplex Zip
**D**Fiber Types
9=Single-mode 9/125μm; 6=Multimode 62 5/125 μm; 5=Multimode 50/125μm; 4=Multimode 50/125μm (OM3)
**EFFF**Length
F003 =3 Feet; F005 =5 Feet; F007 =7 Feet; M001 =1 Meter; M002 =2 Meter; M003 =3 meter
**G**Ferrule Types
C=Ceramic; S= Stainless Steel; P= Polymer
**HH** Fire Performance Rating
ON = Normal PVC, OFN grade; OR = FRPVC, OFNR Riser Grade; OP=FEP, OFNP Plenum Grade;
FR=FRPVC, to
IEC 60332 -3C; LH= LSZH grade to IEC 60754-1, IEC 61034 P1/2
**II**Jacket colors
01-Yellow; 02-Blue; 03-Green; 04-White; 05-Orange; 06-Purple; 07-Red; 08-Grey
**JJ**Fiber Outer Diameter
09=ф0.9mm; 20=ф2.0mm; 30=ф3.0mm
