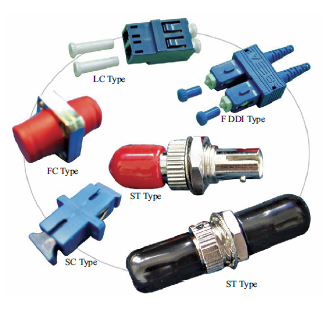

Fiber Optic Adapters

Basic Features

• Low insertion Loss.
• Low back reflection.
• Compliant with JIS, IEC and Bellcore Standard.
• Excellent concentricity.
• Ease of installation.

Physical Properties

• Fiber Types: 3.0mm or 900μm tight buffer type
• Core Diameter: 62.5/125μm; 50/125μm, 9/125 μm

Electrical Properties

• High Durability: 0.2dB loss after 500 cycles.
• Insertion Loss: 0.15dB (Single mode); 0.2dB (Multimode)

Ordering Information

AD-FA-A-B-C-D
A: In/Out Connector Types
FC=FC/PC; MTM=MTRJ/Pin Type; SC/FC=SC-FC;
FCA=FC/APC; MTF=MTRJ/Hole Type; SC/LC=SC-LC;
SC=SC/PC; E2000=E2000; FD/ST=FDDI-ST;
SCA=SC/APC; FD=FDDI; ES/ST=ESCON-ST;
ST=ST; LC=LC; ES=ESCON
B: Sleeve Types
SC = Single mode Zirconia Sleeve
MC = Multimode Zirconia Sleeve
MB = Multimode Phosphor Bronze Sleeve
C: Cord Types
S= Simplex
M= Duplex
D: Housing Types
P=Plastic
MS=Metal Square Type (FC)
MD=Metal D Type (FC)
ML=Metal Thread Type (ST)

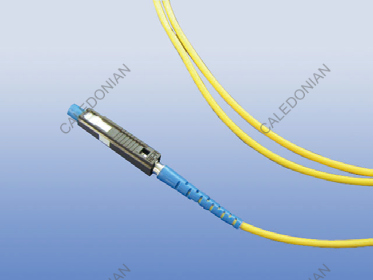

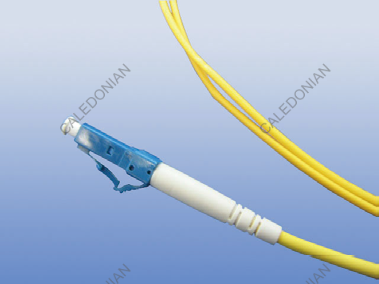

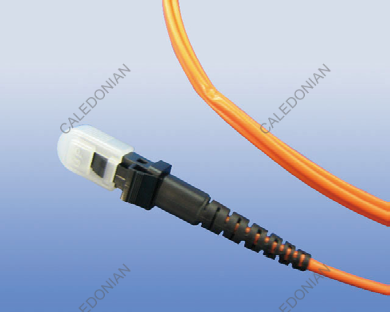

LC Simplex Patch Cord                     MU Simplex Patch Cord                MTRJ Simplex Patch Cord             MTRJ Duplex Patch Cord

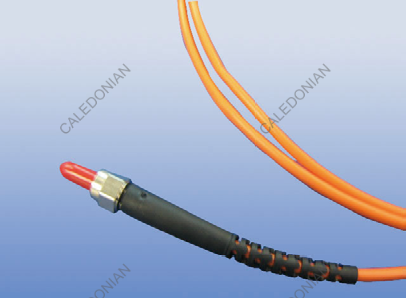

SMA Simplex Patch Cord                  SMA Simplex Patch Cord
