FTTH Butterfly Optic Cable
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

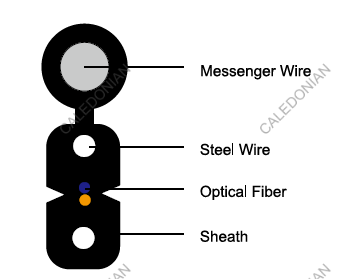

Construction
Structure Specification
Fiber Count |
1-2 |
4 |
8 |
The Color Code of The
Fibers |
Natural/Blue, Orange,Green, Brown |
Strength Member |
0.45mm Steel Wire |
Messenger Wire |
1.0mm Steel Wire |
1.2mm Steel wire |
Jacket Material |
LSZH |
OD of Cable(mm) |
2.0×5.0±0.2 |
2.5×6.1±0.2 |
Net Weight(kg/km) |
20 |
28 |
Max. Tensile Loading(N) |
600 |
Performance Parameters
Single Mode Fiber
Attenuation |
dB/km |
1310nm≤0.4
1550nm≤0.3
1310nm≤3.6 |
Chromatic Dispersion |
ps/nm.km |
1550nm≤18
1625nm≤22 |
Zero Dispersion Slope |
ps/nm2.km |
≤0.092 |
Zero Dispersion Wavelength |
nm |
1300-1324 |
Cut-off Wavelength(λcc) |
nm |
≤1260 |
Mode Field Diameter |
μm |
9.2 ± 0.4 at 1310nm |
8.8 ± 0.4 at 1310nm |
Core-Clad Concentricity |
μm |
≤0.5 |
≤0.5 |
Cladding Diameter |
μm |
125± 1 |
125± 0.7 |
Cladding Non-circularity |
% |
≤0.8 |
≤0.7 |
Coating Diameter |
μm |
245± 5 |
245± 5 |
Fiber Identification
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Fiber
Color |
Blue |
Orange |
Green |
Brown |
Slate |
Natural |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

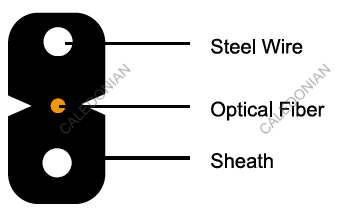

Construction
Structure Specification
Fiber Count |
1-2 |
4 |
8 |
The Color Code of The
Fibers |
Natural/Blue, Orange,Green, Brown |
Strength Member |
0.45mm Steel Wire |
Jacket Material |
LSZH |
OD of Cable(mm) |
2.0×3.0±0.1 |
2.0×3.2±0.1 |
2.5×6.1±0.2 |
Net Weight(kg/km) |
10 |
11 |
15 |
Max. Tensile Loading(N) |
200 |
Performance Parameters
Single Mode Fiber
Attenuation |
dB/km |
1310nm≤0.4
1550nm≤0.3
1310nm≤3.6 |
Chromatic Dispersion |
ps/nm.km |
1550nm≤18
1625nm≤22 |
Zero Dispersion Slope |
ps/nm2.km |
≤0.092 |
Zero Dispersion Wavelength |
nm |
1300-1324 |
Cut-off Wavelength(λcc) |
nm |
≤1260 |
Mode Field Diameter |
μm |
9.2 ± 0.4 at 1310nm |
8.8 ± 0.4 at 1310nm |
Core-Clad Concentricity |
μm |
≤0.5 |
≤0.5 |
Cladding Diameter |
μm |
125± 1 |
125± 0.7 |
Cladding Non-circularity |
% |
≤0.8 |
≤0.7 |
Coating Diameter |
μm |
245± 5 |
245± 5 |
Fiber Identification
NO. |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
9 |
10 |
11 |
12 |
Fiber
Color |
Blue |
Orange |
Green |
Brown |
Slate |
Natural |
Red |
Black |
Yellow |
Violet |
Pink |
Aqua |
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

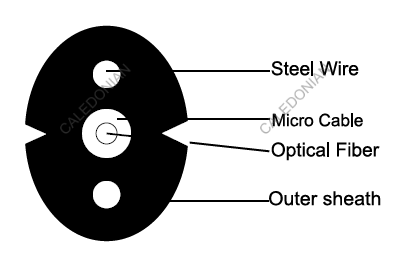

Construction
Structure Specification
Fiber Count |
1 |
Strength Member |
0.45mm Steel Wire |
Jacket Material |
LSZH |
OD of Cable(mm) |
2.0×3.0±0.2 |
Net Weight(kg/km) |
20 |
Max. Tensile Loading(N) |
600 |
Performance Parameters
Single Mode Fiber
Attenuation |
dB/km |
1310nm≤0.4
1550nm≤0.3
1310nm≤3.6 |
Chromatic Dispersion |
ps/nm.km |
1550nm≤18
1625nm≤22 |
Zero Dispersion Slope |
ps/nm2.km |
≤0.092 |
Zero Dispersion Wavelength |
nm |
1300-1324 |
Cut-off Wavelength(λcc) |
nm |
≤1260 |
Mode Field Diameter |
μm |
9.2 ± 0.4 at 1310nm |
8.8 ± 0.4 at 1310nm |
Core-Clad Concentricity |
μm |
≤0.5 |
≤0.5 |
Cladding Diameter |
μm |
125± 1 |
125± 0.7 |
Cladding Non-circularity |
% |
≤0.8 |
≤0.7 |
Coating Diameter |
μm |
245± 5 |
245± 5 |
Application
This cable is mainly used for interconnecting cable for jumpers, patch cords or pigtails.

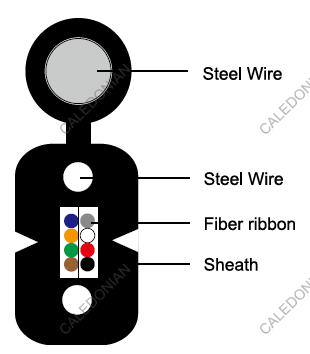

Construction
Structure Specification
Fiber Count |
8 |
The Color Code of The Fibers |
BIue,orange,green,brown,grey,white,red,black |
Reinforcement |
1.2±0.02 |
Reinforcement |
0.42+0.02 |
Jacket Material |
LSZH |
OD of Cable(mm) |
2.0×6.0±0.2 |
Net Weight(kg/km) |
Approx. 26 |
Max. Tensile Loading(N) |
690 |
Performance Parameters
Single Mode Fiber
Attenuation |
dB/km |
1310nm≤0.4
1550nm≤0.3
1310nm≤3.6 |
Chromatic Dispersion |
ps/nm.km |
1550nm≤18
1625nm≤22 |
Zero Dispersion Slope |
ps/nm2.km |
≤0.092 |
Zero Dispersion Wavelength |
nm |
1300-1324 |
Cut-off Wavelength(λcc) |
nm |
≤1260 |
Mode Field Diameter |
μm |
9.2 ± 0.4 at 1310nm |
8.8 ± 0.4 at 1310nm |
Core-Clad Concentricity |
μm |
≤0.5 |
≤0.5 |
Cladding Diameter |
μm |
125± 1 |
125± 0.7 |
Cladding Non-circularity |
% |
≤0.8 |
≤0.7 |
Coating Diameter |
μm |
245± 5 |
245± 5 |
Proof Test |
Gpa |
≥0.69 |
≥0.69 |
Mechanical and Environmental Performance
NO. |
ITEMS |
TEST |
METHOD ACCEPTANCE CRITERIA |
1 |
Tensile Loading Test |
#Test method:IEC 60794-1-E1
-Long-tensile load:0.5 times the short-term pulling force
-Short-tensile load:690N
-Cable length:≥50m |
-Attenuation
Increment@1550nm:≤0.1dB
-No jacket cracking and
fiber breakage |
2 |
Crush Resistance Test |
#Test method:IEC 60794-1-E3
-Long load:1000 N/100mm
-Short load:2200 N/100mm Load time:1 minutes |
Attenuation
Increment@1550nm:≤0.4dB
-No jacket cracking and
fiber breakage |
3 |
Impact Resistance Test |
#Test method:IEC 60794-1-E4
-Impact height:1m
-Impact weigh:100g
-Impact point:≥3
-Impact frequency:≥1/point |
Attenuation
Increment@1550nm:≤0.4dB
-No jacket cracking and
fiber breakage |
4 |
Repeated
Bending |
#Test method:IEC 60794-1-E6
-Mandrel diameter:30H
-Subject weigh:2kg
-Bending frequency:300times
-Bending speed:2s/time |
Attenuation
Increment@1550nm:≤0.4dB
-No jacket cracking and
fiber breakage |
5 |
Torsion Test |
#Test method:IEC 60794-1-E7
-.Length:1m
-.Subject weight:2kg
-.Angle:±180 degree
-Frequency:≥20/point |
Attenuation
Increment@1550nm:≤0.4dB
-No jacket cracking and
fiber breakage |
6 |
Temperature Cycling Test |
Test method:IEC 60794-1-F1
-.Temperature steps:+20℃
-20℃ +60℃ , +20℃
-.Testing Time:8 hours/step
-.Cycle index:2 |
Attenuation
Increment@1550nm:≤0.4dB
-No jacket cracking and
fiber breakage |
7 |
Temperature |
Operating :-20℃ ~+70℃ Store/Transport:-20℃ ~+70℃
Installation:-10℃ ~+70℃ |
Bending Radius
Static bending≥50nm
Dynamic bending≥50nm
Order Information
AD-A-FTTHOC
A: M=FTTH optic cable with messenger wire;
UM=FTTH optic cable without messenger wire;
I=Indoor FTTH optic cable ;
D=FTTH drop optic cable
