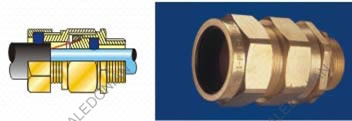

Double Compression E1W Type Weatherproof & Waterproof (IP66) Cable Glands for Steel Wire Armoured Cables
 |
 |
StandardsEN 50262: 1999, BS6121 part1 ApplicationsSuitable for all types of plastic or rubber sheathed single wire armoured cables for indoor as well as outdoor installations. If is used in applications where it is essential to provide an IP66 seal on the inner and outer sheath of the cables.FeatureThe gland provides an environmental seal on the inner and outer cable sheath. If also provides mechanical cable retention & electrical continuity via armour wire termination. The armour clamp provides an electrical bond between the cable armour and the gland.Ingress ProtectionIP66 MaterialBrass BS 2874 CZ121 Pb3 Thread OptionMETRIC; NPT; BSP; PG or as specified Seal OptionNeoprene; silicone Plating OptionBrass Finish, Nickel Finish, Chrome Finish or as specified. Operating TemperatureStandard seals: -20 ℃ to +80 ℃(Neoprene Seals) Extended seals: -60℃ to +180℃(Silicone Seals) AccessoriesLock Nut, Sealing Washer, Earth Tag, Shroud, Lead Sheath Washer, Serrated Washer, Stopping Plug, Reducer, Adaptor Ordering Code(Gland Type / Size & Entry Thread Size), e.g. E1W 32/M32 – 15mm |
Technical Data

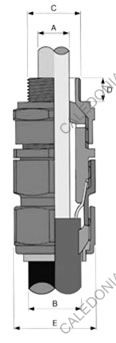

| Part No. | Entry Threads Size "C" | Entry Thread Length "D" | Seal Ranges | Armour Wire Diameter | Max. Across Corner Diameter "E" | |||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner Cable Sheath Diameter "A" | Outer Cable Sheath Diameter "B' | |||||||||||
| Metric | NPT | PG | Standard Seal | Thick Seal | ||||||||
| Min. | Max. | Min. | Max. | Min. | Max. | |||||||
| E1W-16 | M20 | " | 11 | 15 | 3.1 | 8.6 | 8.0 | 13.4 | 5.5 | 9.9 | 0.9 | 24.4 |
| E1W-20S | M20 | " | 13.5 | 15 | 6.1 | 11.6 | 11.4 | 15.9 | 7.0 | 12.4 | 0.9/1.25 | 26.6 |
| E1W- 20 | M20 | " | 16 | 15 | 6.5 | 13.9 | 15.0 | 20.9 | 11.1 | 17.9 | 0.9/.25 | 33.3 |
| E1W- 25 | M25 | 3/4" | 21 | 15 | 11.1 | 19.9 | 20.3 | 27.4 | 15.0 | 23.9 | 1.25/1.60 | 40.5 |
| E1W-32 | M32 | 1" | 29 | 15 | 17.0 | 26.2 | 26.0 | 33.9 | 23.0 | 29.9 | 1.60/2.00 | 51.0 |
| E1W-40 | M40 | 1-1/4" | 36 | 15 | 22.0 | 32.1 | 31.0 | 40.4 | 26.6 | 35.9 | 1.60/ 2.00 | 61.0 |
| E1W-50S | M50 | 1-1/2" | 36 | 15 | 29.5 | 38.1 | 36.5 | 46.7 | 32.9 | 42.4 | 2.00/2.50 | 66.5 |
| E1W-50 | M50 | 2" | 42 | 15 | 35.6 | 44.0 | 43.0 | 53.1 | 38.3 | 49.9 | 2.00/2.50 | 77.7 |
| E1W-63S | M63 | 2" | 48 | 15 | 40.1 | 49.9 | 48.9 | 59.4 | 44.6 | 55.9 | 2.50 | 83.2 |
| E1W-63 | M63 | 2-1/2" | - | 15 | 47.2 | 55.9 | 58.0 | 65.9 | 51.5 | 58.9 | 2.50 | 88.7 |
| E1W-75S | M75 | 2-1/2" | - | 15 | 52.8 | 61.9 | 60.6 | 72.1 | 56.4 | 68.9 | 2.50 | 101.6 |
| E1W-75 | M75 | 3" | - | 15 | 59.1 | 67.9 | 64.9 | 78.5 | 62.7 | 74.9 | 2.50/3.15 | 111.1 |
| E1W-90 | M90 | 3" | - | - | 66.6 | 79.3 | 76.0 | 90.4 | 64.2 | 79.3 | 3.15 | 128.6 |
