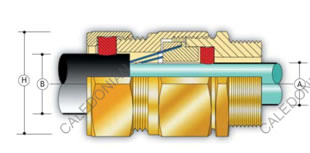

Single Compression A2F Type Weatherproof, Waterproof, Flameproof & Increased Safety Cable Glands for Non Armoured Cables ( Gas Group I, IIA, IIB IIC)
Standard
EN 50014: 1998; EN 50018: 2000; EN 50019: 2000; EN 50281-1-1: 1998
Application
Suitable for all types of unarmoured plastic or rubber sheathed cables in indoor as well as outdoor installations. It is used in applications where it is essential to provide an IP66/IP67 and explosion proof seal on the outer sheath of the cable. It is particularly suitable for Zone1 & Zone2 in hazardous area.
Feature
Single compression for cable sheath
Fire and Ingress Protection
II2 GD Exd IIC / Exe II / ExtD A21 / IP66 / IP67 Allowable temperature on the elastomeric sealing ring: 100℃ (ATEX), 120℃(GOST R)
Permitted Zone and Gas Group
Suitable for use in Zone1, Zone2, and Gas Groups, IIA, IIB and IIC.
Certificate
IECEX KOSHA (IECEX KOS 09, 0017X), ATEX NEMKO (03ATEXI460X), KIMM(EX08FLPI96) GOSTR
Material
Brass / Stainless Steel
Plating Option
Brass Finish, Nickel Finish, Chrome Finish or as specified
Accessories
Lock Nut, Sealing Washer, Earth Tag, Shroud, Serrated Washer, Stopping Plug, Reducer, Adaptor
Ordering Code
(Gland Type / Size & Entry Thread Size) e.g. A2F 32a / M32 -18mmTechnical Data
Part No. | Entry Thread Size | Cable Diameter. | Thread Length. | Entry Hole Size | Hexagon Dimensions (H) | Weight | Length | |||
---|---|---|---|---|---|---|---|---|---|---|
Metric | NPT | "B" | Metric | NPT | Metric | NPT | ||||
A2F-16a | M16/M20 | 1/2" | 3 -7.5 | 15 | 15 | 17 | 22 | H24X26 | 100 | 31 |
A2F -16b | M16/M20 | 1/2" | 6.1 -10 | 15 | 15 | 17 | 22 | H24X26 | 100 | 31 |
A2F -20a | M20 | 1/2"or 3/4 | 10.1 -13 | 15 | 15or16 | 21 | 22 | H27X29 | 230 | 33 |
A2F-20b | M20 | 1/2"or 3/4 | 13.1 -15 | 15 | 15or16 | 21 | 22 | H27X29 | 230 | 33 |
A2F-25a | M25 | 3/4" or 1" | 14-17.5 | 15 | 16or18 | 26 | 26 | H32X34 | 320 | 34 |
A2F-25b | M25 | 3/4" or 1" | 16.1-19.5 | 15 | 16or18 | 26 | 26 | H32X34 | 320 | 34 |
A2F-32a | M32 | 1"or1-1/4" | 18.1 -22 | 15 | 18or19 | 33 | 34 | H39X41.5 | 370 | 38 |
A2F-32b | M32 | 1"or1-1/4" | 21 -26 | 15 | 18or19 | 33 | 34 | H39X41.5 | 370 | 38 |
A2F-40a | M40 | 1-1/4" or 1-1/2" | 24-28 | 15 | 19 or21 | 41 | 43 | H48X51 | 550 | 40 |
A2F-40b | M40 | 1-1/4" or 1-1/2" | 27-32 | 15 | 19 or21 | 41 | 43 | H48X51 | 550 | 40 |
A2F-50a | M50 | 1-1/2" or2" | 32.1 -34 | 15 | 21or24 | 51 | 50 | H58X62 | 690 | 42 |
A2F-50b | M50 | 1-1/2" or2" | 34.1 -40 | 15 | 21or24 | 51 | 50 | H58X62 | 690 | 42 |
A2F-63a | M63 | 2" or2-1/2" | 38-44 | 15 | 24or27 | 64 | 62 | H73X78 | 1110 | 46 |
A2F-63b | M63 | 2" or2-1/2" | 43-50 | 15 | 24or27 | 64 | 62 | H73X78 | 1110 | 46 |
A2F-63c | M63 | 2" or2-1/2" | 49-54 | 15 | 24or27 | 64 | 62 | H73X78 | 1110 | 46 |
A2F-75a | M75 | 2-1/2"or 3" | 52-56 | 20 | 27 or30 | 76 | 74 | H85X90 | 1500 | 52 |
A2F-75b | M75 | 2-1/2"or 3" | 55-60 | 20 | 27 or30 | 76 | 74 | H85X90 | 1500 | 52 |
A2F-75c | M75 | 2-1/2"or 3" | 59-62 | 20 | 27 or30 | 76 | 74 | H85X90 | 1500 | 52 |
A2F-75d | M75 | 2-1/2"or 3" | 62.1-66 | 20 | 27 or30 | 76 | 74 | H85X90 | 1500 | 52 |
A2F-90a | M90 | 3" or 3-1/2" | 68-70 | 20 | 30or32 | 91 | 90 | H103X 113 | 2000 | 60 |
A2F-90b | M90 | 3" or 3-1/2" | 68-76 | 20 | 30or32 | 91 | 90 | H103X 113 | 2000 | 60 |
A2F-100a | M100 | 3-1/2" or4" | 76.1-81 | 20 | 32 | 101 | 102 | H112X 120 | 2500 | 69 |
A2F-100b | M100 | 3-1/2" or4" | 81.1-85 | 20 | 32 | 101 | 102 | H112X 120 | 2500 | 69 |
