WXC American Standard Automotive Cable

Application

This XLPE insulated low-voltage cable is designed for used at nominal voltage of 60v dc (60V AC rms) or surface vehicles electrical systems.

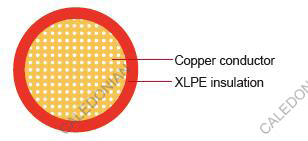

Construction:

WXC American Standard Automotive Cable

Conductor: Soft-annealed copper according to ASTM B
Insulation:XLPE Ultra-Thin wall flame-retardant,halogen-free
Standard: SAE J1678
Special properties:Flexible

Technical Parameters:

Operating temperature: –40°C to +125°C

Conductor Construction Insulation
Size Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Nominal thickness Overall Diameter Max. Weight approx.
AWG mm2 No./mm mm mm mm kg/km
22 1x0.35 7/0.25 0.76 0.20 1.35 4
20 1x0.50 7/0.32 0.97 0.20 1.55 7
18 1x0.80 19/0.23 1.17 0.20 1.75 8
16 1x1.3 19/0.28 1.45 0.20 2.03 12
14 1x2 19/0.36 1.8 0.20 2.39 19
12 1x3 19/0.45 2.3 0.24 3.00 30

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
