TXL American Standard Automotive Cable

Application

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance, small diameter and minimal weight is required.

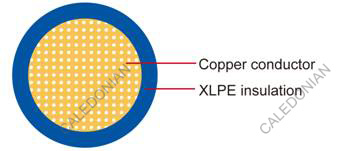

Construction:

Conductor:Soft-annealed copperaccording to ASTM B3
Insulation:Polyethylene crosslinked (XLPE)
Standard Compliance:SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +105 °C

  Conductor Insulation Cable
Size Nominal cross- section No. and Dia. of Wires Diameter Max. thickness wall min. thickness wall Nom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm mm Kg/km
22 1 x 0.35 7/0.25 0.76 0.28 0.40 1.70 6
20 1 x 0.50 7/0.32 0.97 0.28 0.40 1.90 8
20 1 x 0.50 19/0.19 0.95 0.28 0.40 1.90 8
18 1 x 0.80 16/0.25 1.17 0.28 0.40 2.20 11
18 1 x 0.80 19/0.23 1.17 0.28 0.40 2.20 11
16 1 x 1.00 19/0.28 1.45 0.28 0.40 2.40 15
14 1 x 2.00 19/0.36 1.80 0.28 0.40 2.70 22
12 1 x 3.00 19/0.45 2.29 0.32 0.46 3.30 34
10 1 x 5.00 19/0.57 2.87 0.35 0.50 4.00 53
10 1 x 5.00 100/0.26 3.0 0.35 0.45 3.90 53
8* 1 x 8.00 49/0.46 4.06 0.39 0.55 4.90 85

*For SAE J1128 applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request.
