GXL American Standard Automotive Cable

Application

This XLPE insulated single-core cable is used in automotive applications where higher heat resistance and small diameter is required.

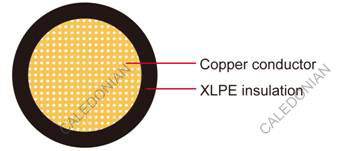

Construction:

Conductor:Soft-annealed copperaccording to ASTM B3
Insulation:Polyethylene crosslinked (XLPE)
Standard Compliance:SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +125 °C

Conductor Insulation Cable
SIZE Nominal cross- section No. and Dia. of Wires Diameter Max. thickness wall min. thickness wall Nom. Overall Diameter (max..) Weight approx.
AWG mm2 No./mm mm mm mm mm Kg/km
20 1 x 0.50 19/0.20 0.97 0.41 0.58 2.40 9
18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12
18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12
16 1 x 1.00 19/0.24 1.45 0.41 0.58 2.90 17
14 1 x 2.00 19/0.36 1.80 0.41 0.58 3.20 25
12 1 x 3.00 19/0.45 2.29 0.46 0.66 3.80 38
10 1 x 5.00 19/0.57 2.87 0.56 0.79 4.70 58

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
