GPT American Standard Automotive Cable

Application

This PVC insulated single-core cable is used in automotive applications for general circuit wiring and automotive or marine applications where 105°C is required.

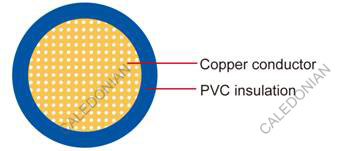

Construction:

Conductor:Soft-annealed copperaccording to ASTM B3
Insulation:PVC
Standard Compliance:SAE J1128

Technical Parameters:

Operating temperature:–40 °C to +80 °C

  Conductor Insulation Cable
Size Nominal cross- section No. and Dia. of Wires Diameter Max. Nominal Wall thickness min. thickness wall Nom. Overall Diameter max. Weight approx.
AWG mm2 No./mm mm mm mm mm Kg/km
22* 1 x 10.35 7/0.25 0.76 - 0.58 2.10 7
20 1 x 0.50 7/0.32 0.97 0.41 0.58 2.40 10
18 1 x 0.80 16/0.25 1.17 0.41 0.58 2.50 12
18 1 x 0.80 19/0.23 1.17 0.41 0.58 2.50 12
16 1 x 1.00 19/0.28 1.45 0.41 0.58 2.90 17
14 1 x 2.00 19/0.36 1.80 0.41 0.58 3.20 25
12 1x 3.00 19/0.45 2.29 0.46 0.66 3.80 38
10 1 x 5.00 19/0.57 2.87 0.55 0.79 4.70 59
8** 1 x 8.00 19/0.724 3.26 0.66 0.94 6.00 96
  • *for Ford ESF M1L56-A Applications only

** For SAE J1128 and UTMS applications only
Note: Other configurations, sizes, colors and length not specified herein are available upon request
