FLYZ Germany Standard Automotive Cable

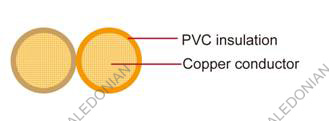

This PVC insulated multi-cores cable is used in internal wiring in automobile where high flexibility, thermo and mechanical strength are required

Conductor:Cu-ETP1 bare according to DIN EN13602
Insulation:Plasticized (PVC)
Standard Compliance:ISO 6722 Class B

Operating temperature:–40 °C to +105 °C

	Conductor			Insulation		Cable
Nominal cross- section	No. and Dia. of Wires	Diameter Max.	Electrical resistance at 20℃ Max.	thickness wall Nom.	Diameter of core	Diameter Width	Diameter Height	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	mm	Kg/km
2 x0.50	16 /0.21	1.00	37.10	0.50	2.10	4.40±0.20	2.10±0.15	20
2 x0.75	24 /0.21	1.20	24.70	0.60	2.35	4.70±0.30	2.35±0.15	23
2 x1.00	32/0.20	1.50	19.50	0.60	2.55	5.10±0.30	2.50±0.15	32
2 x1.50	48 /0.26	1.70	12.70	0.60	2.80	5.60±0.30	2.80±0.15	39

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
