Germany Standard Automotive Cable
Single-core cable
FLYY

Application

This PVC insulated single-core unshielded low-tension wire is used for automobiles, Motorcycles and other motor vehicles.

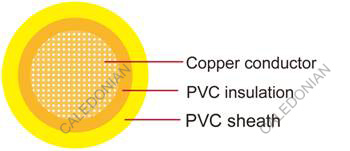

Construction:

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Sheath:PVC
Standard Compliance:ISO 6722 Class B

Technical Parameters:

Operating temperature:-40℃ to 105℃

  Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical resistance at 20℃ max. Thickness Wall Nom. Diameter of Core Sheath Thickness Overall Diameter Min. Overall Diameter Max Weight approx.
(mm2) No./mm mm mΩ/m (mm) (mm) (mm) (mm) mm kg/km
1x0.50 16/0.21 1.00 37.10 0.60 2.10 0.40 2.70 3.10 14
1x0.75 24/0.21 1.20 24.70 0.60 2.30 0.40 3.00 3.30 17
1x1.00 32/0.21 1.35 18.50 0.60 2.50 0.40 3.20 3.60 20
1x1.50 30/0.26 1.70 12.70 0.60 2.80 0.50 3.70 4.10 28
1x2.00 40/0.26 2.00 9.42 0.60 3.00 0.50 3.90 4.30 33
1x2.50 50/0.26 2.20 7.60 0.70 3.50 0.50 4.30 4.80 41

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
