Germany Standard Automotive Cable
Single-core cable
FLYW

Application

This PVC insulated single-core wire is used for automobiles, motorcycles and other motor vehicles. It has good heat resistant.

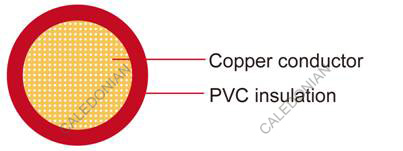

Construction:

Conductor:Cu-ETP1 bare according to DIN EN13602
Insulation:PVC
Standard Compliance:ISO 6722 Calss C

Technical Parameters:

Operating temperature:-40℃ to 125℃

  Conductor Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter max. Electrical resistance at 20℃ max. thickness wall nom. Overall diameter min. Overall diameter max. Weight approx.
mm2 No./mm (mm) mΩ/m (mm) (mm) (mm) kg/km
1x0.50 16 /0.20 1.00 37.10 0.48 2.00 2.30 8
1x0.75 24/0.20 1.20 24.70 0.48 2.20 2.50 11
1x1.00 32/0.20 1.35 18.50 0.48 2.40 2.70 15
1x1.50 30/0.25 1.70 12.70 0.48 2.70 3.00 20
1x2.50 50/0.25 2.20 7.60 0.56 3.30 3.60 32
1x4.00 56/0.31 2.75 4.71 0.64 4.00 4.40 48
1x6.00 84/0.31 3.30 3.14 0.64 4.60 5.00 68
1x10.00 80/0.40 4.50 1.82 0.80 6.00 6.50 117
1x16.00 126/0.40 5.20 1.16 0.80 8.00 8.30 193
1x25.00 196/0.40 6.50 0.70 1.04 10.10 10.40 274
1x35.00 276/0.40 7.70 0.50 1.04 11.30 11.60 397
1x50.00 396/0.40 9.20 0.30 1.20 13.20 13.50 547
1x70.00 556/0.40 11.00 0.20 1.20 15.20 15.50 769
1x95.00 741/0.40 14.80 0.20 1.28 17.00 18.00 990

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
