Germany Standard Automotive Cable
Single-core cable
FLYK

Application:

This PVC insulated automotive cable is used for cars, trucks and other vehicles.

Cable Construction:

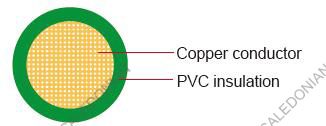

FLYK Germany Standard Automotive Cable

Conductor: Cu-ETP1 bare according to DIN EN 13602?
Insulation: PVC insulation(Cold resistant)?
Standard: ISO 6722 Class B

Special properties:

Cold bending test according to ISO 6722 at –50 °C.
Short-term and long-term ageing according to ISO 6722, Class B.

Technical Parameters:

Operating temperature: –50°C to +105°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.50 28 /0.16 1.1 37.7 0.6 2.0 2.3 9
1x0.75 42/0.16 1.3 25.1 0.6 2.2 2.5 12
1x1.00 57/0.16 1.5 18.8 0.6 2.4 2.7 15
1x1.50 84/0.16 1.8 12.7 0.6 2.7 3.0 20
1x2.50 140/0.16 2.3 7.54 0.7 3.5 3.9 32
1x4.00 196/0.16 3.3 4.71 0.8 4.5 4.9 53
1x4.5 84/0.16 1.80 12.7 0.6 2.7 3.0 23
1x6.00 294/0.16 4.2 3.14 0.8 5.3 6.0 76
1x10.00 455/0.16 5.2 1.85 1.0 6.7 7.3 124
1x16.00 490/0.21 6.7 1.16 1.0 8.2 8.8 198
1x25.00 798/0.21 8.0 0.74 1.2 9.9 10.5 298

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
