Germany Standard Automotive Cable
Single-core cable
FLU6Y

Application:

This FEP insulated automotive cable is used for cable harnesses. Very good resistance to fuels and abrasion.

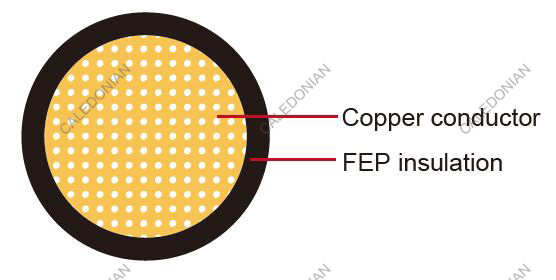

Cable Construction:

FLU6Y Germany Standard Automotive Cable

Conductor:Plain,tinned Silver or Nickel plated copper
Insulation: FEP
Standard:ISO 6722 Class F

Technical Parameters:

Operating temperature:–40°C to +200°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.13 7/0.16 0.5 140 0.16 0.85 0.95 2.3
1x0.14 7/0.16 0.5 140 0.16 0.85 0.95 2.3
1x0.22 7/0.21 0.7 86.5 0.16 0.95 1.05 2.9
1x0.35 7/0.26 0.7 55.5 0.16 1.10 1.20 4.3
1x0.50 19/0.19 1.0 38.2 0.16 1.30 1.40 6.4
1x0.75 19/0.23 1.2 25.4 0.16 1.50 1.60 8.8
1x1.00 19/0.26 1.4 19.1 0.16 1.65 1.75 10.8
1x1.50 19/0.32 1.7 13.0 0.16 1.90 2.10 15.8
1x2.50 19/0.41 2.2 7.82 0.20 2.45 2.75 25.8

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
