FLRYW-B Germany Standard Automotive Cable Single-core

Application and Description:

This PVC insulated single-core cable is used as low-tension electric wire for automobiles.

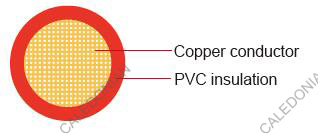

Cable Construction:

FLRYW-B Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:PVC
Standard:ISO 6722 Class C

Special properties:

Heat resistant cable, Flame retardant, Extra flexibility
Flexible conductor with PVC Thin wall insulation with increase mechanical strength

Technical Parameters:

Operating temperature: –50°C to +125°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm g/km
1x0.35 12 /0.21 0.9 54.4 0.2 1.2 1.4 5
1x0.50 16/0.21 1.0 37.1 0.22 1.4 1.6 6
1x0.75 24/0.21 1.2 24.7 0.24 1.7 1.9 9
1x1.00 32/0.21 1.35 18.5 0.24 1.9 2.1 11
1x1.25 16/0.33 1.7 14.9 0.24 2.1 2.3 12
1x1.50 30/0.26 1.7 12.7 0.24 2.2 2.4 17
1 x2.00 28/0.3 2.0 9.42 0.28 2.5 2.8 24
1 x2.50 50/0.26 2.2 7.6 0.28 2.7 3.0 28
1 x3.00 45/0.3 2.4 6.15 0.32 3.1 3.4 34
1 x4.00 56/0.3 2.75 4.7 0.32 3.4 3.7 44
1 x5.00 65/0.33 3.1 3.94 0.32 3.9 4.2 50
1 x6.00 84/0.3 3.3 3.14 0.32 4.0 4.3 64
1 x8.00 50/0.46 4.3 2.38 0.32 4.6 5.0 82
1 x10.00 38/0.4 4.5 1.82 0.48 5.4 5.8 113
1 x12.00 96/0.4 5.4 1.52 0.48 5.8 6.5 120
1 x16.00 126/0.4 5.5 1.16 0.52 6.5 7.0 171
1 x20.00 152/0.4 6.9 0.955 0.52 7.0 7.8 192
1 x25.00 196/0.4 7.0 0.743 0.52 7.9 8.7 255
