FLRY11Y Germany Standard Automotive Cable

Application

This PVC insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting , charging, lighting, signal and instrument panel circuits.

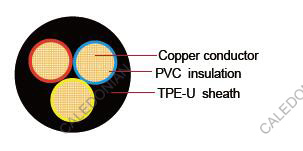

Construction:

Conductor Cu-ETP1 or bare according to DIN EN 13602
Insulation PVC Outer
Sheath TPE-U
Standard Compliance ISO 6722 Class B

Technical Parameters:

Operating temperature: –40 °C to +105 °C

Special Properties

Flame retardant
Highly resistant against acids,lyes,petrol and diesel

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Diameter of core Sheath wall thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm mm mm kg/km
2x0.75 42/0.16 1.2 24.7 0.4 1.9 0.8 5.2 5.6 47
3x1 32/0.21 1.5 18.5 0.35 2.0 0.7 5.6 6.0 54
3x1.5 30/0.26 1.7 13.3 0.4 2.4 0.75 6.5 6.9 71

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
