FLR7Y-B Germany Standard Automotive Cable Single-core

Application and Description:

This ETFE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

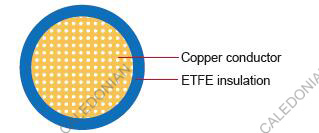

Cable Construction:

FLR7Y-B Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare/tinned according to DIN EN 13602
Insulation:ETFE
Standard:ISO 6722 Class E

Special properties:

Highly resistant against acids,lyes,petrol and diesel/Excellent chmical resistance/Good mechanical & thermal properties

Technical Parameters:

Operating temperature: –45°C to +180°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C bare/tinned max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.35 12/0.21 0.9 54/55.5 0.2 1.2 1.4 5
1x0.5 16/0.21 1.0 37.1/38.2 0.22 1.4 1.6 7
1x0.75 24/0.21 1.2 24.7/25.4 0.24 1.7 1.9 10
1x1 32/0.21 1.35 18.5/19.1 0.24 1.9 2.1 12
1x1.5 30/0.26 1.7 12.7/13.0 0.24 2.2 2.4 18
1x2.5 50/0.26 2.2 7.6/7.82 0.28 2.7 3.0 30
4 56/0.31 2.75 4.71/4.85 0.32 3.4 3.7 42
6 84/0.31 3.3 3.14 0.32 4.0 4.3 62

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
