FLR6Y-B Germany Standard Automotive Cable Single-core

Application and Description:

This FEP insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

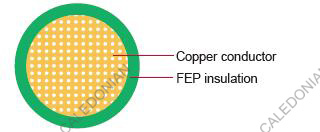

Cable Construction:

FLR6Y-B Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare/tinned according to DIN EN 13602
Insulation:FEP
Standard:ISO 6722 Class F

Special properties:

Good Thermal properties

Technical Parameters:

Operating temperature: –65°C to +210°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C bare/tinned max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x 0.35 12/0.21 0.9 54.4/55.5 0.2 1.2 1.4 5
1x 0.5 16/0.21 1.0 37.1/38.2 0.22 1.4 1.6 6
1x 0.75 24/0.21 1.2 24.7/24.4 0.24 1.7 1.9 9
1x1 32/0.21 1.35 18.5/19.1 0.24 1.9 2.1 12
1x 1.5 30/0.26 1.7 12.7/13.0 0.24 2.2 2.4 17
1x 2.5 50/0.26 2.2 7.6/7.82 0.28 2.7 3.0 28
1x4 56/0.31 2.75 4.71/4.85 0.32 3.4 3.7 41
1x6 81/0.31 3.3 3.14/3.14 0.32 4.0 4.3 62

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
