FLR2X-A Germany Standard Automotive Single-core cable

Application

This XLPE insulated single-core cable is used in motor and battery ground low voltage circuit applications with high temperatures (Rated for continuous use from -40°C up to 125°C), tight spaces, and where aging and abrasion resistance are necessary.

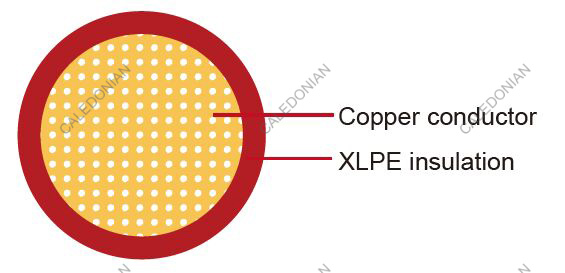

Construction:

FLR2X-A Germany Standard Automotive Single-core cable

Conductor:Annealed stranded copper(Type A)
Insulation:XLPE
Standard: ISO 6722 Class C

Technical Parameters:

Operating temperature: –40°C to +105°C

　 Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor- max. Electrical resistance at 20°Cmax. Nominal thickness Overall Diameter Min. Overall Diameter Max Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
0.22 7/0.21 0.7 86.5 0.2 1.15 1.2 3.4
0.35 7/0.27 0.9 54.4 0.25 1.2 1.3 4.
0.5 19/0.19 1.1 37.1 0.28 1.4 1.6 7
0.75 19/0.24 1.3 24.7 0.3 1.7 1.9 9.5
1 19/0.27 1.5 18.5 0.3 1.9 2.1 12
1.5 19/0.33 1.8 12.7 0.3 2.2 2.4 17
2.0 19/0.38 2.0 9.42 0.28 2.8 2.85 26
2.5 37/0.28 2.2 7.6 0.35 2.7 3.0 27

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
