Germany Standard Automotive Cable
Single-core cable
FLR12Y-B

Application:

This TPE-E insulated single-core cable is used for cable harnesses.

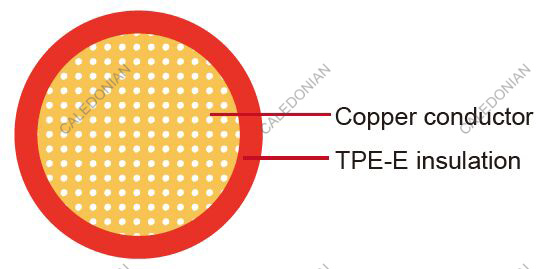

Cable Construction:

FLR12Y-B Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:TPE-E
Standard:ISO 6722 Class D

Technical Parameters:

Operating temperature:–40°C to +150°C

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x0.35 12/0.21 0.90 55.5 0.20 1.3 1.4 4.5
1x0.50 16/0.21 1.00 38.2 0.22 1.5 1.6 6.6
1x0.75 24/0.21 1.20 25.4 0.24 1.8 1.9 9.0
1x1.00 32/0.21 1.35 19.1 0.24 2.0 2.1 11
1x1.50 30/0.26 1.70 13.0 0.24 2.3 2.4 16
1x2.50 50/0.26 2.20 7.82 0.28 2.9 3.0 26
1x4.00 56/0.31 2.75 4.85 0.32 3.6 3.7 42
1x6.00 84/0.31 3.30 3.23 0.32 4.2 4.3 61

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
