This TPE-E insulated single-core cable is used for cable harnesses.

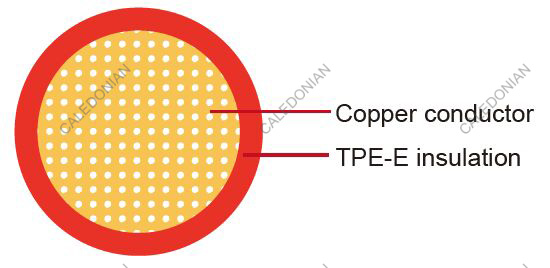

FLR12Y-A Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:TPE-E
Standard:ISO 6722 Class D

Operating temperature:–40°C to +150°C

	Conductor Construction			Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter of Conductor max.	Electrical resistance at 20°C max.	Nominal thickness	Overall Diameter Min.	Overall Diameter Max.	Weight approx.
mm2	No./mm	mm	mΩ/m	mm	mm	mm	kg/km
1x0.22	7/0.21	0.70	86.5	0.20	1.1	1.20	3.1
1x0.35	7/0.26	0.70	55.5	0.20	1.2	1.30	4.5
1x0.50	19/0.19	1.00	38.2	0.22	1.4	1.60	6.6
1x0.75	19/0.23	1.20	25.4	0.24	1.7	1.90	9.0
1x1.00	19/0.26	1.35	19.1	0.24	1.9	2.10	11
1x1.50	19/0.32	1.70	13.0	0.24	2.2	2.40	16
1x2.50	19/0.41	2.20	7.82	0.28	2.7	3.00	26

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
