FL91Y/FL11Y Germany Standard Automotive Cable Single-core

Application and Description:

This TPE insulated low-tension automotive cable is used in motorcycles and other motor vehicles for starting ,charging,lighting,signal and instrument panel circuits.

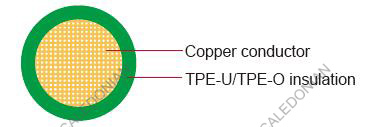

Cable Construction:

FL91Y/FL11Y Germany Standard Automotive Cable

Conductor:Cu-ETP1 bare according to DIN EN 13602
Insulation:TPE-U (FL11Y)
TPE-O (FL91Y)
Standard:
ISO 6722 Class B (FL11Y)
ISO 6722 Class C (FL91Y)

Special properties:

Flame retardant
Also available as aluminium battery cables.

Technical Parameters:

Operating temperature: –40°C to +110°C (FL11Y)
–40°C to +125°C (FL91Y)

  Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max. Weight approx.
mm2 No./mm mm mΩ/m mm mm mm kg/km
1x6 84/0.31 3.3 3.1 0.8 4.6 5.0 73
1x10 80/0.41 4.5 1.82 1.0 6.0 6.5 120
1x16 126/0.41 6.3 1.16 1.0 7.0 8.1 177
1x25 196/0.41 7.8 0.74 1.3 8.7 10.2 275
1x35 276/0.41 9.0 0.53 1.3 10.0 10.7 373
1x50 400/0.41 10.5 0.37 1.5 11.9 13.0 541
1x70 560/0.41 12.5 0.30 1.5 14.0 15.0 734
1x95 740/0.41 14.8 0.20 1.6 15.4 16.2 956
1x120 960/0.41 16.5 0.15 1.6 18.7 19.7 1218

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
