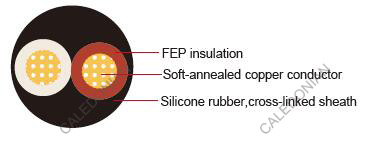

This FEP insulated multi-cores cable is used for automobiles.

Conductor	Cu-ETP1 or bare according to DIN EN 13602
Insulation	Fluorinated ethylene propylene(FEP) insulation
Sheath	Siliconne rubber,cross-linked according to ISO 14572 class F
Standard Compliance	ISO 6722 Class F

Operating temperature:–65 °C to +210 °C

Conductor			Insulation	Cable
Nominal cross- section	No. and Dia. of Wires	Diameter max.	Electrical resistance at 20°C max.	Thickness Wall nom.	Sheath Thickness	Overall Diameter min.	Overall Diameter max.	Weight approx.
mm2	No./mm	(mm)	mΩ/m	(mm)	(mm)	mm	mm	kg/km
2x0.35	12/0.21	0.8	52	0.4	0.53	4.6	5	32
2x0.25	24/0.16	0.7	86.5	0.4	0.53	3.4	3.8	24

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
