FL2G Germany Standard Automotive Single-core cable

Application

This silicon rubber insulated single core cable is used in battery lead-wire for automobiles.

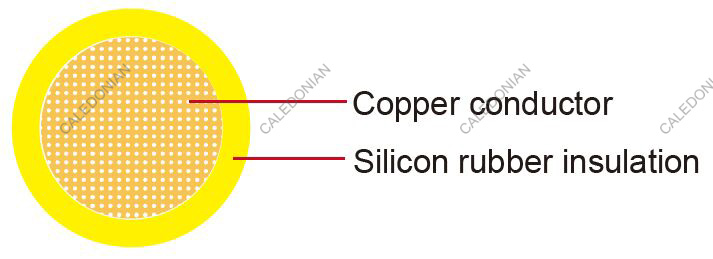

Construction:

FLR2X-A Germany Standard Automotive Single-core cable

Conductor:Cu-ETP1 bare or tinned according to DIN EN 13602
Insulation:Silicon rubber
Standard:ISO 6722 Class F

Technical Parameters:

Operating temperature: –40°C to +200°C

　 Conductor Construction Insulation Cable
Nominal cross- section No. and Dia. of Wires Diameter of Conductor- max. Electrical resistance at 20°C max. Nominal thickness Overall Diameter Min. Overall Diameter Max Weight approx.
mm2 No./mm mm mΩ/m (mm) (mm) mm kg/km
0.5 16/0.21 1.1 37.1 0.48 2 2.3 8
0.75 24/0.21 1.3 24.7 0.48 2.2 2.5 10.6
1 32/0.21 1.5 18.5 0.48 2.4 2.7 13.5
1.5 30/0.26 1.8 12.7 0.48 2.7 3 17.9
2.5 50/0.26 2.2 7.6 0.56 3.3 3.6 29.5
4 56/0.31 2.8 4.71 0.64 4 4.4 46.7
6 84/0.31 3.4 3.14 0.64 4.6 5 66
10 80/0.41 4.5 1.82 0.8 5.9 6.5 113
16 126/0.41 6.3 1.16 0.8 7.7 8.3 173
25 196/0.41 7.8 0.743 1.04 9 10 266
35 276/0.41 9 0.527 1.04 10.4 11 361
50 396/0.41 10.5 0.368 1.25 12.4 13.5 526
70 360/0.51 12.5 0.259 1.25 14.2 15.5 750

Note: Other configurations, sizes, colors and length not specified herein are available upon request.
