AVXSF Japanese Standard Automotive Cable

Application

This XLPVC insulated single-core cable is used in low voltage circuits in automobiles(vehicles and motorcycles)

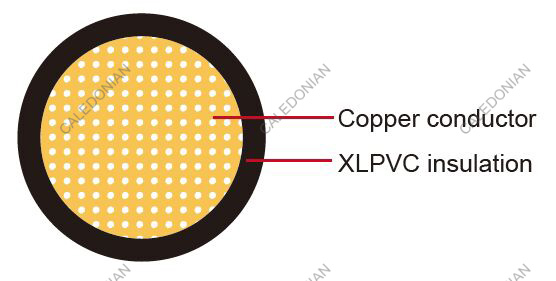

Construction:

Conductor: Annealed standed copper
Insulation: Cross-linked Polyvinyl Chloride(XLPVC)
Standard Compliance: HKMC ES 91110-05

Technical Parameters:

Operating temperature:–45 °C to +200°C

　 Conductor Insulation Cable
Nominal Cross- section No. and Dia. of Wires Diameter max. Electrical Resistance at 20°C max. Thickness Wall nom. Overall Diameter min. Overall Diameter max. Weight Approx.
mm2 no./mm mm mΩ/m mm mm mm kg/km
1x10.0 399/0.18 4.2 1.85 0.9 6.0 6.2 110
1x15.0 588/0.18 5.0 1.32 1.1 7.2 7.5 160
1x20.0 779/0.18 6.3 0.99 1.2 8.7 9.0 220
1x25.0 1007/0.18 7.1 0.76 1.3 9.7 10.0 280
1x30.0 1159/0.18 8.0 0.69 1.3 10.6 10.9 335
1x40.0 1554/0.18 9.2 0.50 1.4 12.0 12.4 445

*Note: Other configurations, sizes, colors and length not specified herein are available upon request.
